Analog/Digital IF Troubleshooting
25 MHz BW IF Section
9. Refer to Figure 7-8, carefully disconnect W13 at A3J15.

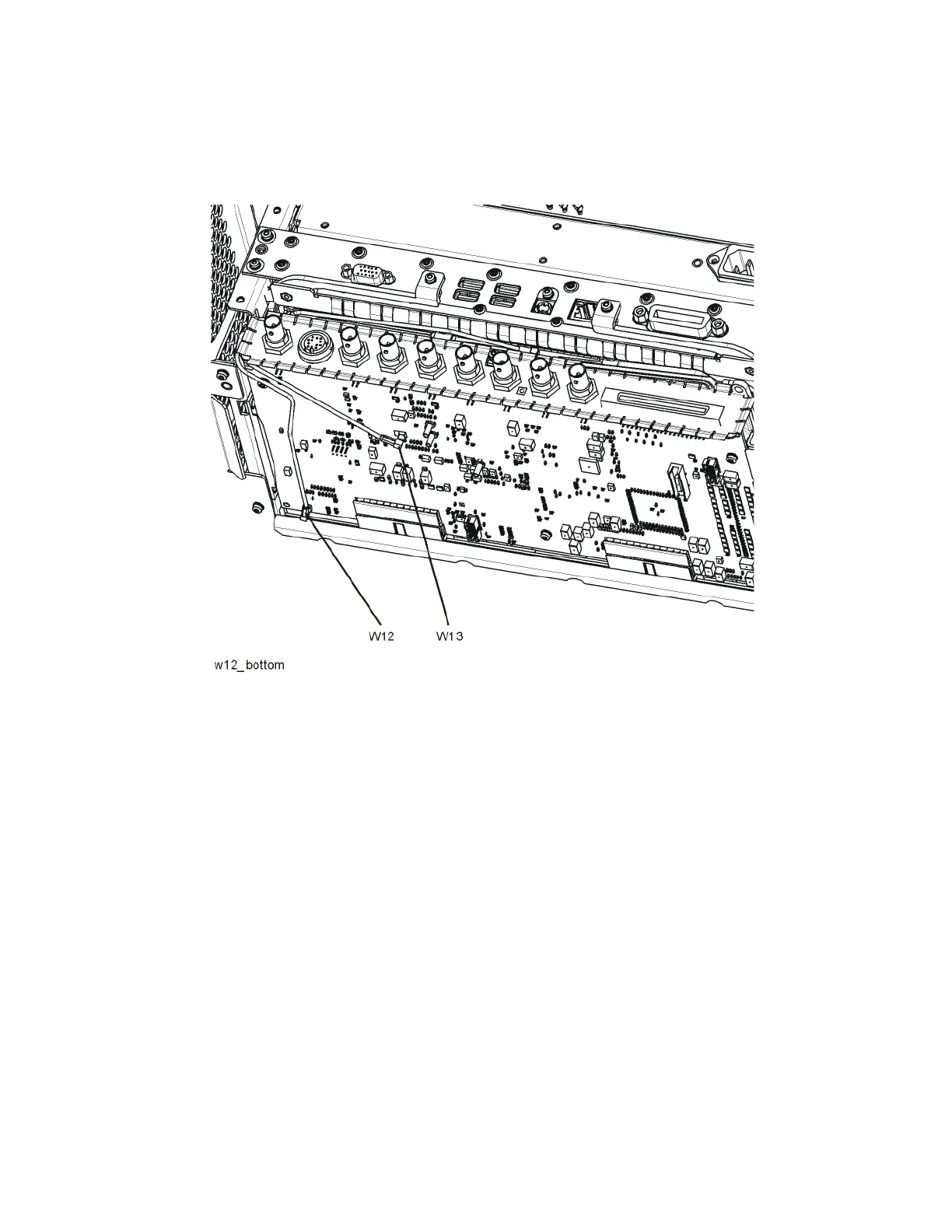

Figure 7-8 A3 Digital I.F. Cables
10. Connect the W13 cable to the MMCX female to SMA female connector.
Use an appropriate cable to go from the SMA connector to the RF input of
a functioning spectrum analyzer.
11. Press Freq, 22.5 MHz Span, 1 MHz, Peak Search on the functioning
spectrum analyzer.
