Keysight N9010A EXA Service Guide 289
Analog/Digital IF Troubleshooting
40 MHz BW IF Section
Verifying the 300 MHz LO Input Power from the A16 Reference
Assembly
1. Refer to Figure 7-16, carefully disconnect the W14 at A2J300.

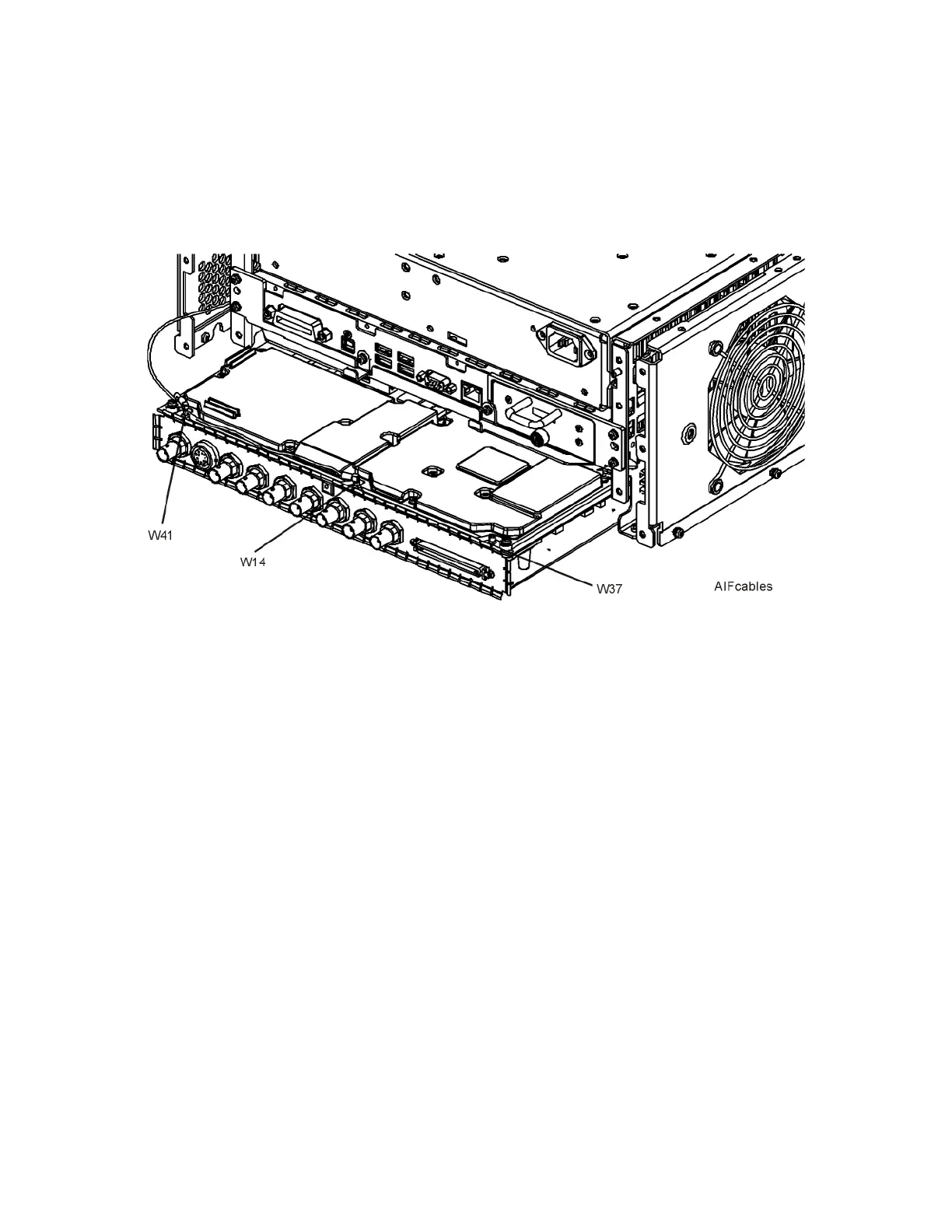

Figure 7-16 A2 Analog IF Cables
2. Connect the W14 cable to the MMCX female to SMA female adapter. Use
an appropriate cable to go from the SMA adapter to the RF input of a
functioning spectrum analyzer.
3. Press Freq, 300 MHz, Span, 1 MHz, Amplitude, 10 dBm, Peak Search on
the functioning spectrum analyzer.
