Replaceable Parts
Hardware

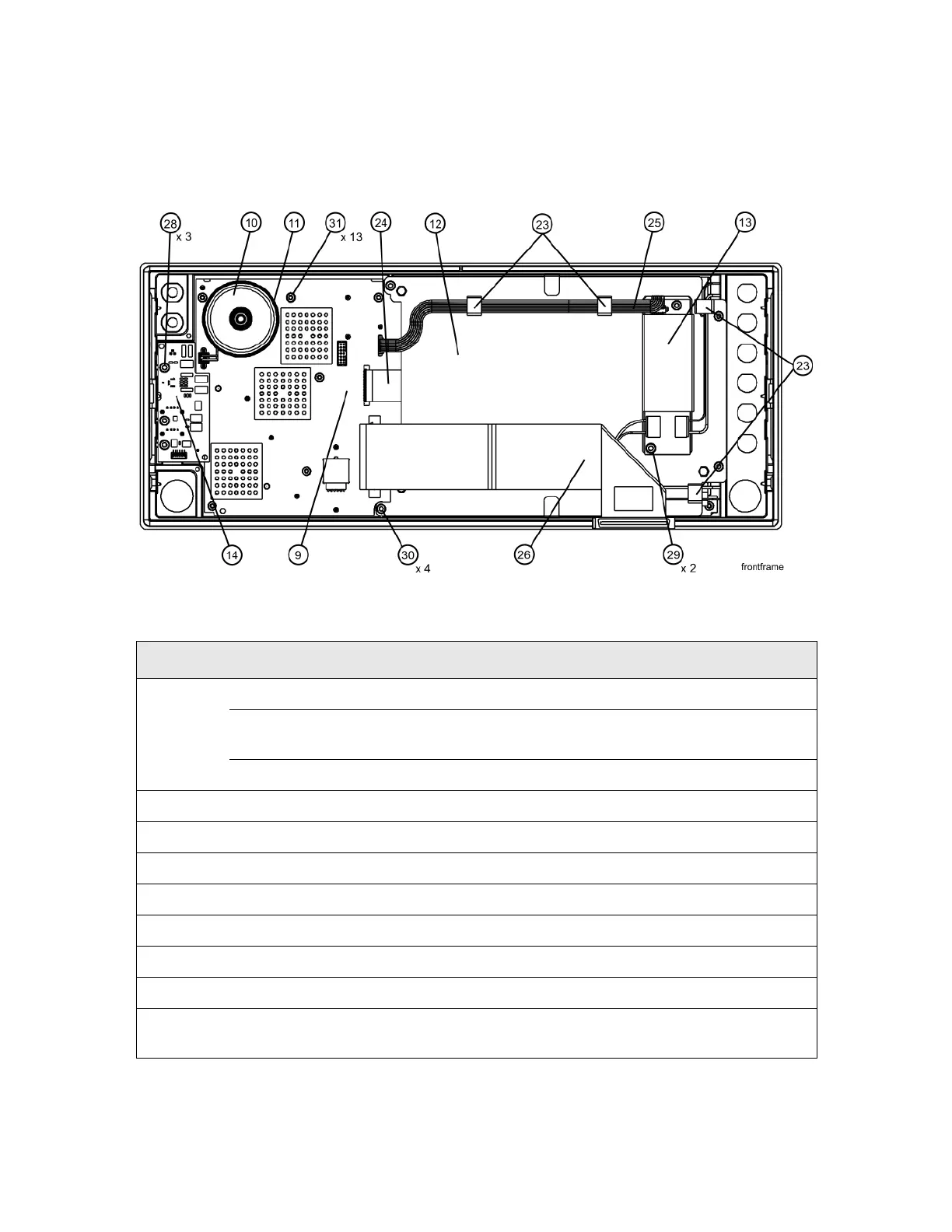

Figure 14-35 Front Frame Parts - LCD
Item Description Keysight Part Number
9 A1A2 Front Panel Interface Board
Serial number ≥ MY/SG48010101, US48010001 to Serial
number < MY/SG51250000
W1312-60042
Serial number < MY/SG48010101 N9020-60033
10 A1A2MP1 Speaker 9164-0453
11 A1A2MP2 Speaker Foam W1312-40016
12 A1A3 Liquid Crystal Display 2090-1040
13 A1A4 Inverter Board (Display Backlight Power) 0950-4635
14 A1A5 Front Panel Daughter Board N9020-63193
23 A1MP10-13 Cable Clamp (Front Panel Cables) 1400-1439
24 A1W1 Flex Circuit, Display to Front Panel Interface Board W1312-60010
25 A1W2 Power Cable, Front Panel Interface Board to
Inverter Board
W1312-60011
