Keysight N9010A EXA Service Guide
4
79
Assembly Replacement Procedur
es
RF Ar
ea (Option 503, 507, 513, 526)
4.
Refer to
Figure 15-11
. To separate the swit
ch from the bracket, r
e
move the
four scr
ews
(3)
using the T-10 driver.

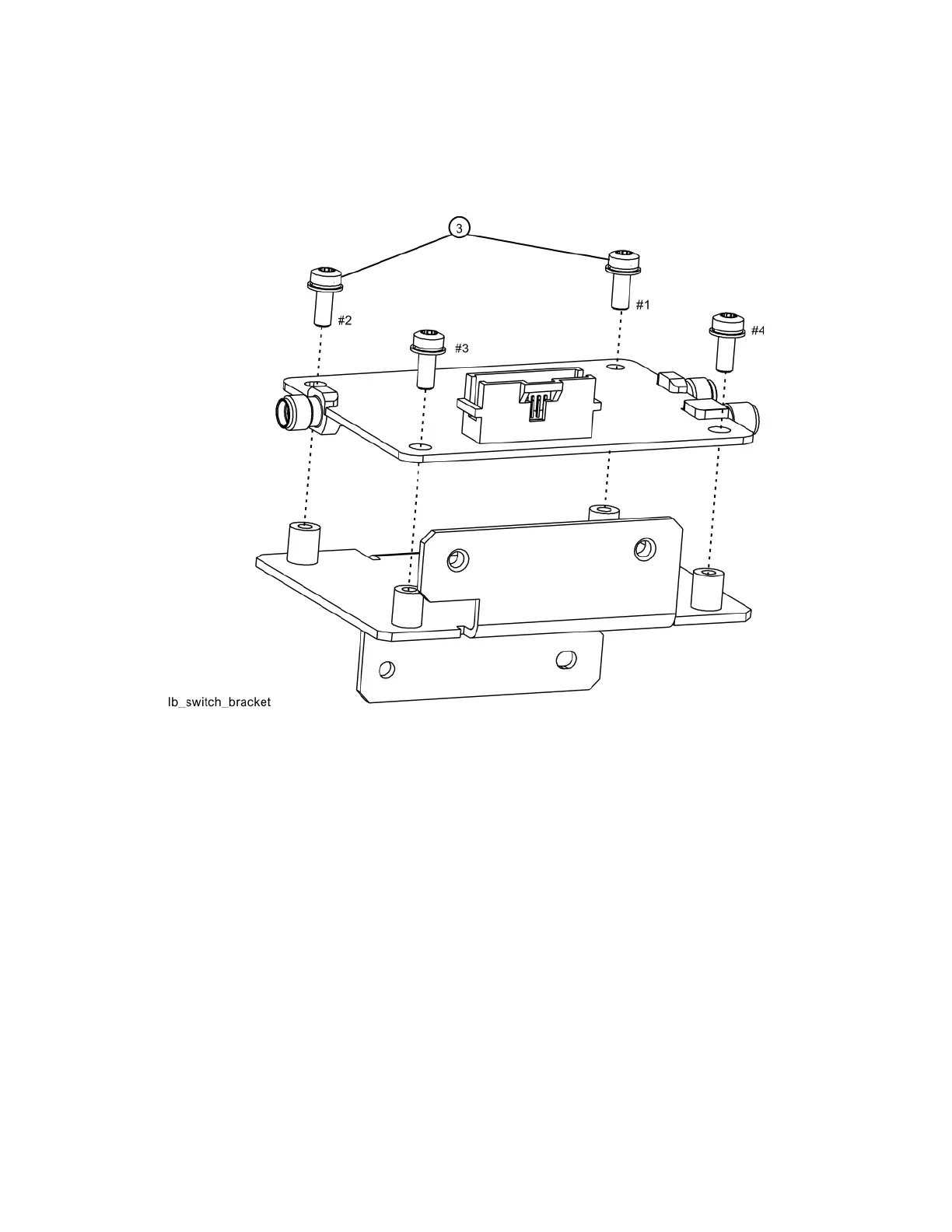

Figure 15-11
Low Band Switch
and Bracket Separation
478
480
