Keysight N9010A EXA Service Guide 511
Assembly Replacement Procedures
RF Area (Option 532, 544)
4. Refer to Figure 15-40. To separate the switch from the bracket, remove the
four screws (3) using the T-10 driver.

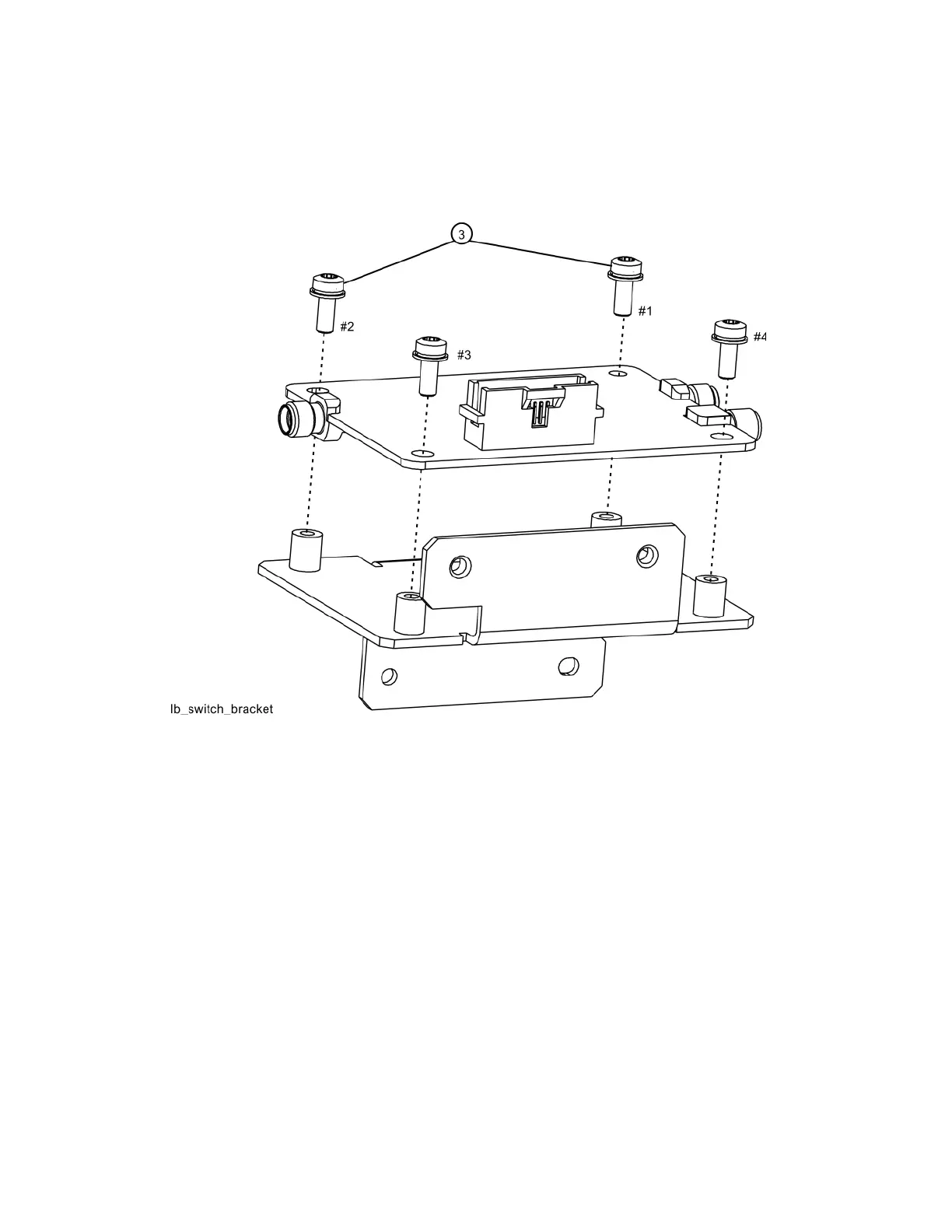

Figure 15-40 Low Band Switch and Bracket Separation
