Keysight N9010A EXA Service Guide 581
Assembly Replacement Procedures
Front Frame Assembly
5. Refer to Figure 15-92. Disconnect the backlight wires (2) from the
inverter board.

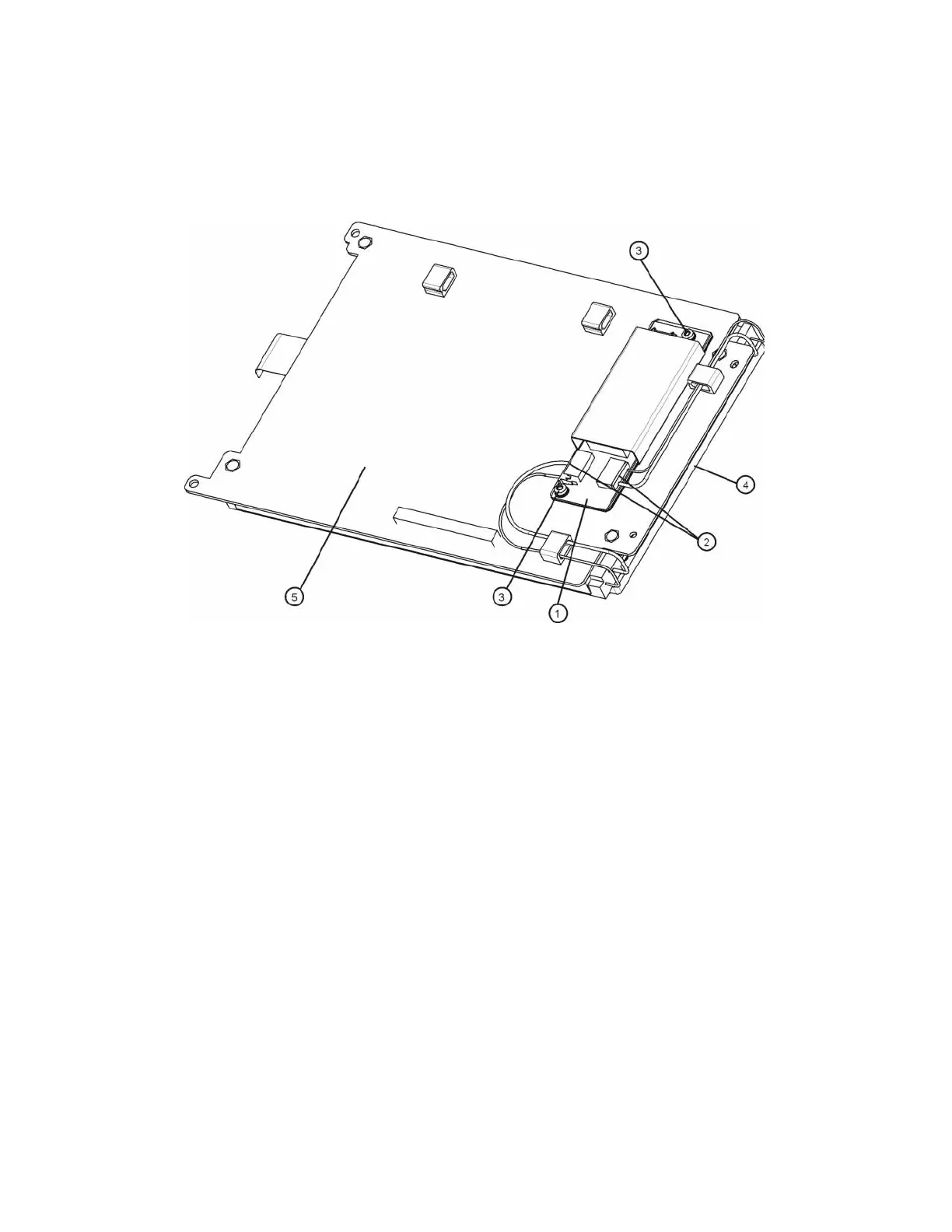

Figure 15-92 Inverter Board Removal
6. To remove the A1A4 LCD Inverter board (1), remove the two screws (3)
securing the inverter board to the display bracket (5).
7. To remove the A1A3 LCD (4), flip the assembly over and remove the four
screws securing the LCD to the display bracket (5).
