Keysight N9010A EXA Service Guide 607
Post-Repair Procedures
Post-Repair Procedures
Single-Core Processor
There are two settings in the CPU BIOS that must be verified and may require
changing when the A4 CPU assembly or A4BT1 CPU battery is replaced. These
settings need to be correct in order for the analyzer to boot up and operate
correctly.
— “IDE 2” must be set to #1 in the “Boot priority order”
— “CK-408 Spread Spectrum” must be set to “Enabled”
Changing and saving these BIOS settings requires a USB external keyboard.
Changes to the BIOS are fairly straightforward and should take ~30 seconds.
Verify Boot Priority
1. Press the Right Arrow on the external keyboard twice to highlight the Boot
tab as shown in Figure 16-7.

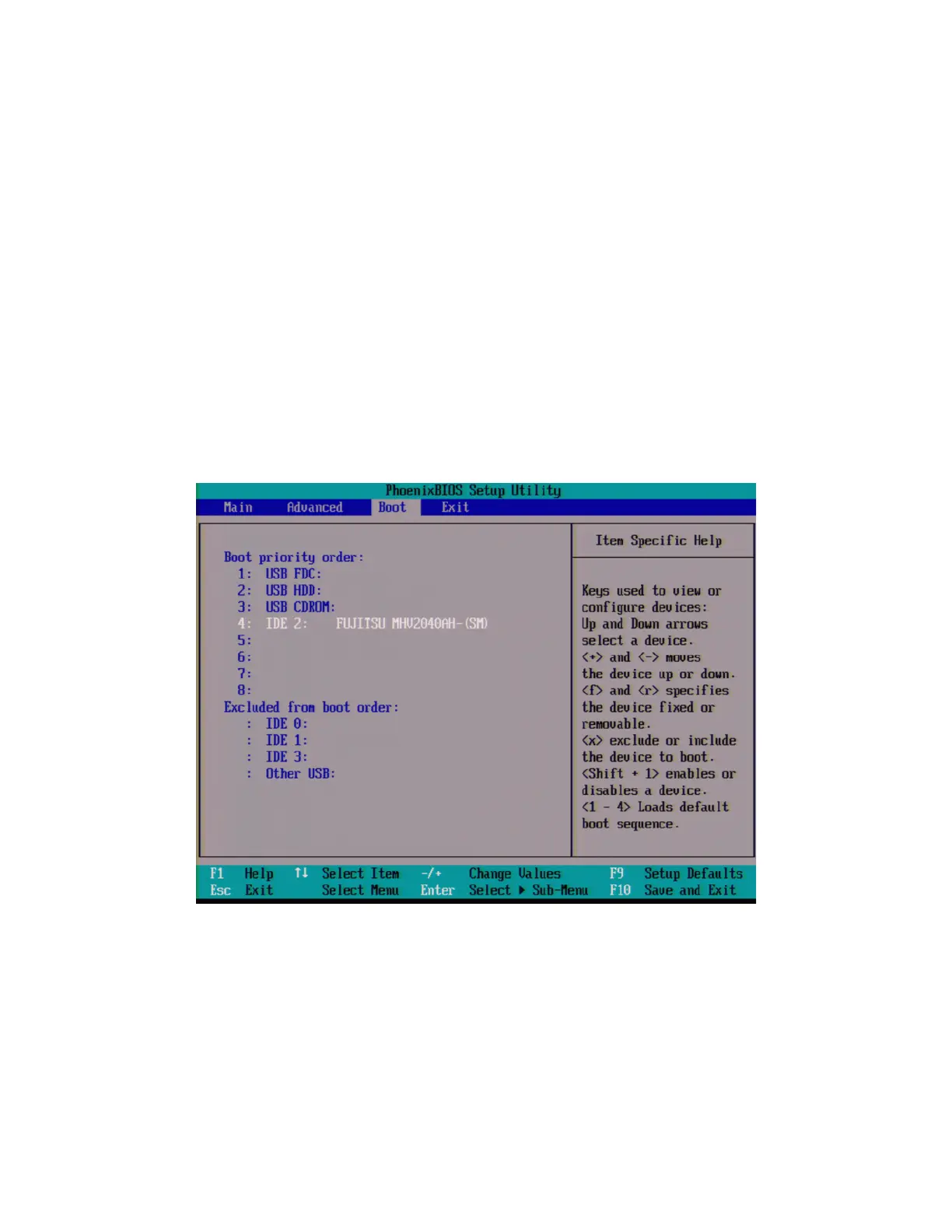

Figure 16-7 Boot Tab Highlighted
2. If IDE 2 is not listed 1st in the boot priority, press the Down Arrow on the
external keyboard to highlight IDE 2 as shown in Figure 16-7.
