612 Keysight N9010A E
XA Service Guide
Post-Repair Pr
oced
ur
es
Post-Repair Pr
oced
ur
es

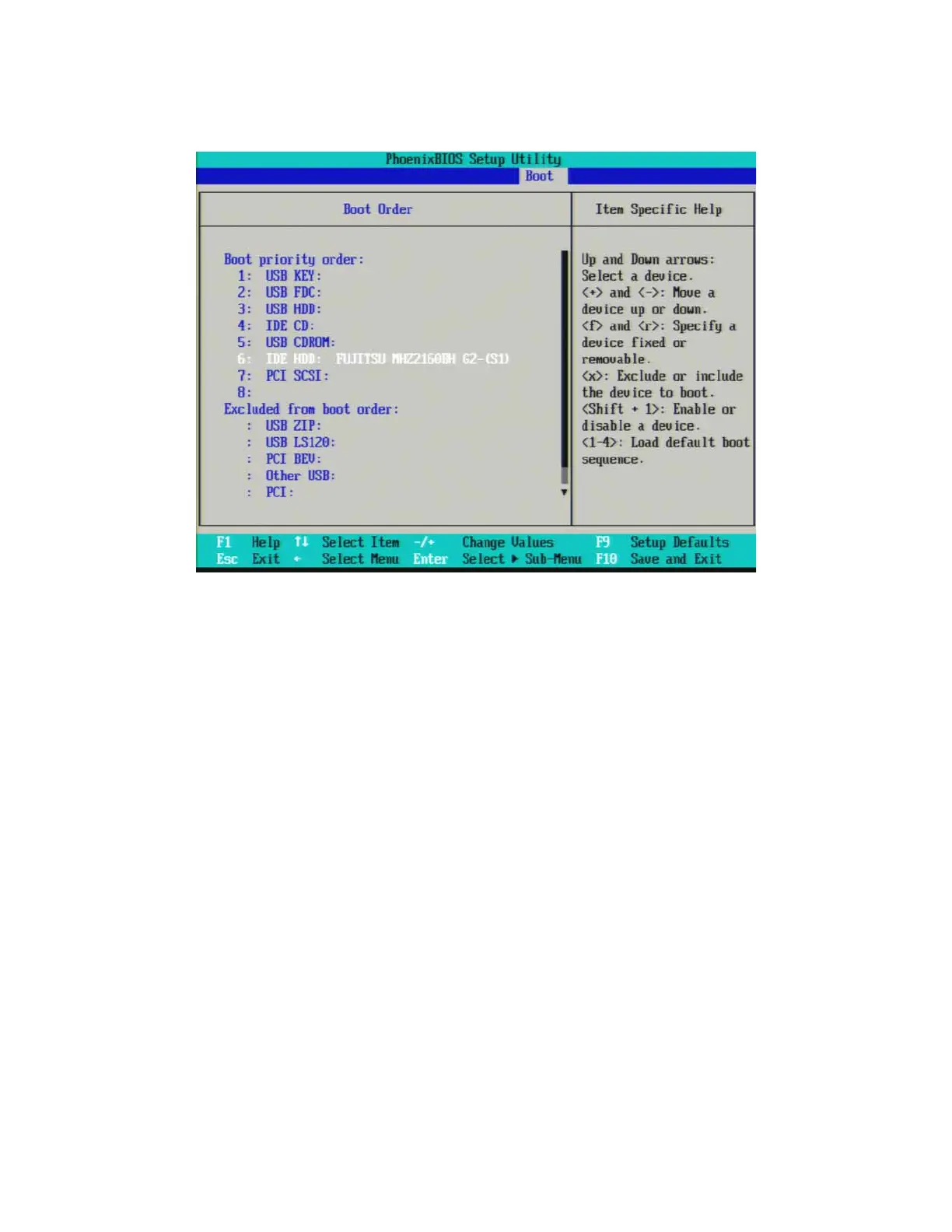

Figure 16-12
IDE HDD Selected
3.
If IDE HDD is not l
isted first in the boot priority, press the Down Arr
ow on
the external keyboard to highl
ight IDE HDD as shown in
Figur
e 16-12
.
