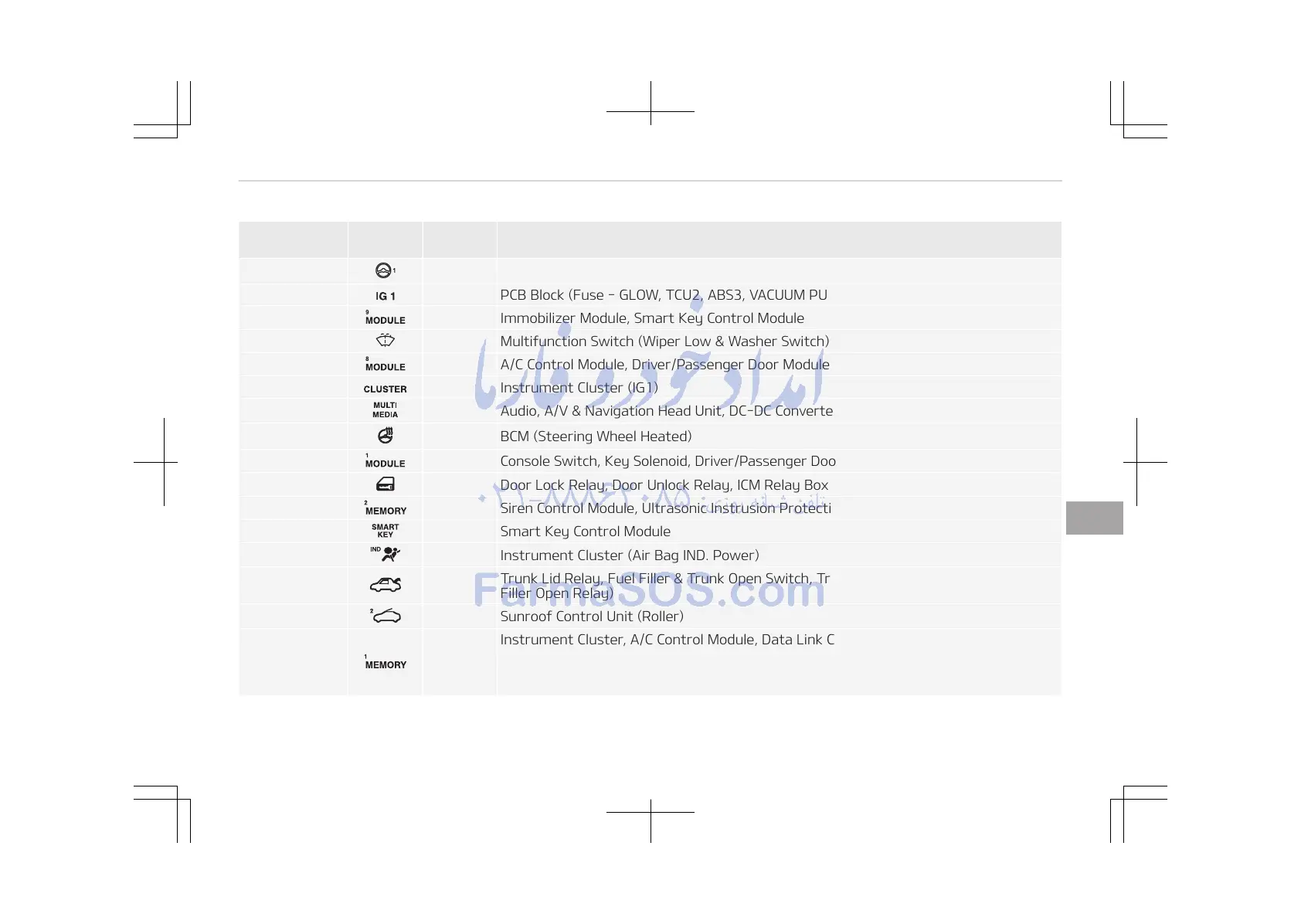

Fuse name Symbol Fuse rat‐
ing
Circuit Protected
MDPS
7.5A MDPS Unit (Column/Rack), Steering Angle Sensor
IG1
25A PCB Block (Fuse - GLOW, TCU2, ABS3, VACUUM PUMP2, ECU3)
MODULE 9
10A Immobilizer Module, Smart Key Control Module
WASHER
15A Multifunction Switch (Wiper Low & Washer Switch)
MODULE 8
10A A/C Control Module, Driver/Passenger Door Module
CLUSTER
10A Instrument Cluster (IG1)
MULTI MEDIA
15A Audio, A/V & Navigation Head Unit, DC-DC Converter (Audio)
HTD STRG
15A BCM (Steering Wheel Heated)
MODULE 1
10A Console Switch, Key Solenoid, Driver/Passenger Door Module
DR LOCK
20A Door Lock Relay, Door Unlock Relay, ICM Relay Box (Dead Lock Relay)
MEMORY 2
10A Siren Control Module, Ultrasonic Instrusion Protection Sensor
SMART KEY
15A Smart Key Control Module
A/BAG IND
10A Instrument Cluster (Air Bag IND. Power)
TRUNK
10A
Trunk Lid Relay, Fuel Filler & Trunk Open Switch, Trunk Lid Motor, ICM Relay Box (Fuel
Filler Open Relay)
SUNROOF 2
20A Sunroof Control Unit (Roller)
MEMORY 1 10A
Instrument Cluster, A/C Control Module, Data Link Connector, BCM, Wireless Charger,
Driver IMS Module, Rain Sensor, ICM Relay Box (Outside Mirror Folding/Unfolding Mir‐
ror Relay), Security Indicator, Auto Light & Photo Sensor, Driver/Passenger Door Mod‐
ule
