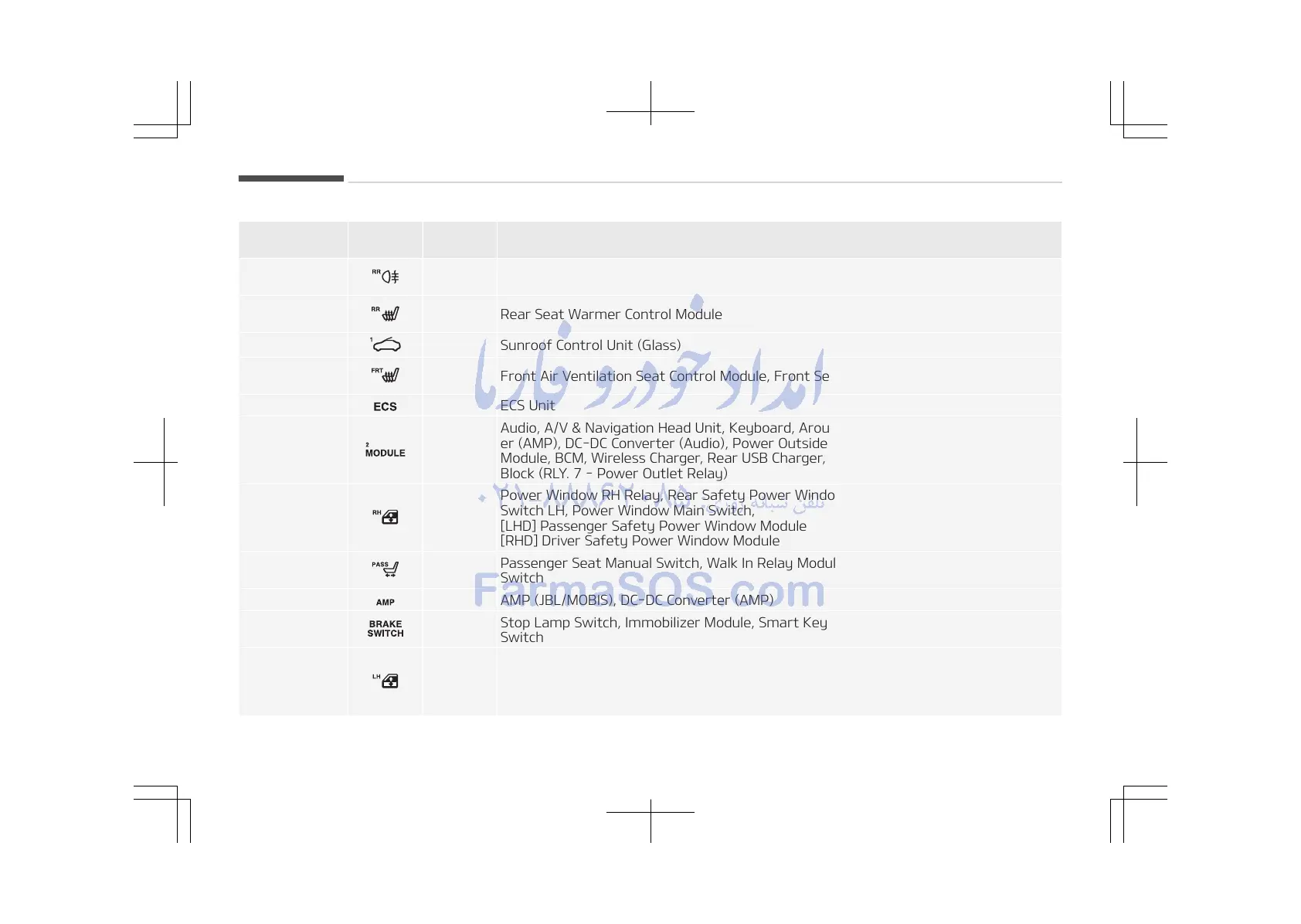

Fuse name Symbol Fuse rat‐
ing
Circuit Protected
FOG LAMP
REAR
10A ICM Relay Box (Rear Fog Lamp Relay)
S/HEATER
REAR
25A Rear Seat Warmer Control Module
SUNROOF 1
20A Sunroof Control Unit (Glass)
S/HEATER
FRONT
25A Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module
ECS 15A ECS Unit
MODULE 2 10A
Audio, A/V & Navigation Head Unit, Keyboard, Around View Unit, AMP, DC-DC Convert‐
er (AMP), DC-DC Converter (Audio), Power Outside Mirror Switch, Smart Key Control
Module, BCM, Wireless Charger, Rear USB Charger, MTS E-Call Module, E/R Junction
Block (RLY. 7 - Power Outlet Relay)
P/WDW RH 25A
Power Window RH Relay, Rear Safety Power Window Module LH, Rear Power Window
Switch LH, Power Window Main Switch,
[LHD] Passenger Safety Power Window Module
[RHD] Driver Safety Power Window Module
P/SEAT PASS 25A
Passenger Seat Manual Switch, Walk In Relay Module, Passenger Reclining Limit
Switch
AMP 25A AMP (JBL/MOBIS), DC-DC Converter (AMP)
BRAKE SWITCH 10A
Stop Lamp Switch, Immobilizer Module, Smart Key Control Module, Start/Stop Button
Switch
P/WDW LH 25A
Power Window LH Relay, Rear Safety Power Window Module RH, Rear Power Window
Switch RH, Power Window Main Switch,
[LHD] Driver Safety Power Window Module
[RHD] Passenger Safety Power Window Module
