Komatsu 930E-2 - Overall Truck Dimensions

STANDARD DUMP BODY*
Capacity:
Struck . . . . . . . . . 224 yds
3
. . . . 171 m
3
Heaped @ 2:1 (SAE) 276 yds
3
. . . . 211 m
3
Width (Inside) . . . . . . . . . 26 ft. 9 in. (8.15 m)
Depth . . . . . . . . . . . . . 10 ft. 3 in. (3.1 m)
Loading Height . . . . . . . . . . 23 ft. (7.01 m)
Dumping Angle . . . . . . . . . . . . . . . . 45
o
* OPTIONAL Capacity Dump Bodies are available.
TIRES
Radial Tires (standard) . . . . . . . . 53/80 R63
Rock Service, Deep Tread . . . . . . . Tubeless
Rims . (patented Phase II New Generation rims)
WEIGHT DISTRIBUTION
EMPTY . . . . . . . . . Pounds . . Kilograms
Front Axle (49.3%) . . . 219,913 . . . . 99 751
Rear Axle (50.7%) . . . 226,121 . . . 102 567
Total (50% Fuel) . . . . 446,034 . . . 202 318
LOADED
Front Axle (33.9%) . . . 372,727 . . . 169 069
Rear Axle (66.1%) . . . 727,273 . . . 329 891
Total . . . . . . . . . 1,100,000 . . . 498 960
Not to exceed 1,100,000 lbs. (498 957 kg), including
options, fuel, and payload. Weights in excess of this
amount require factory approval.

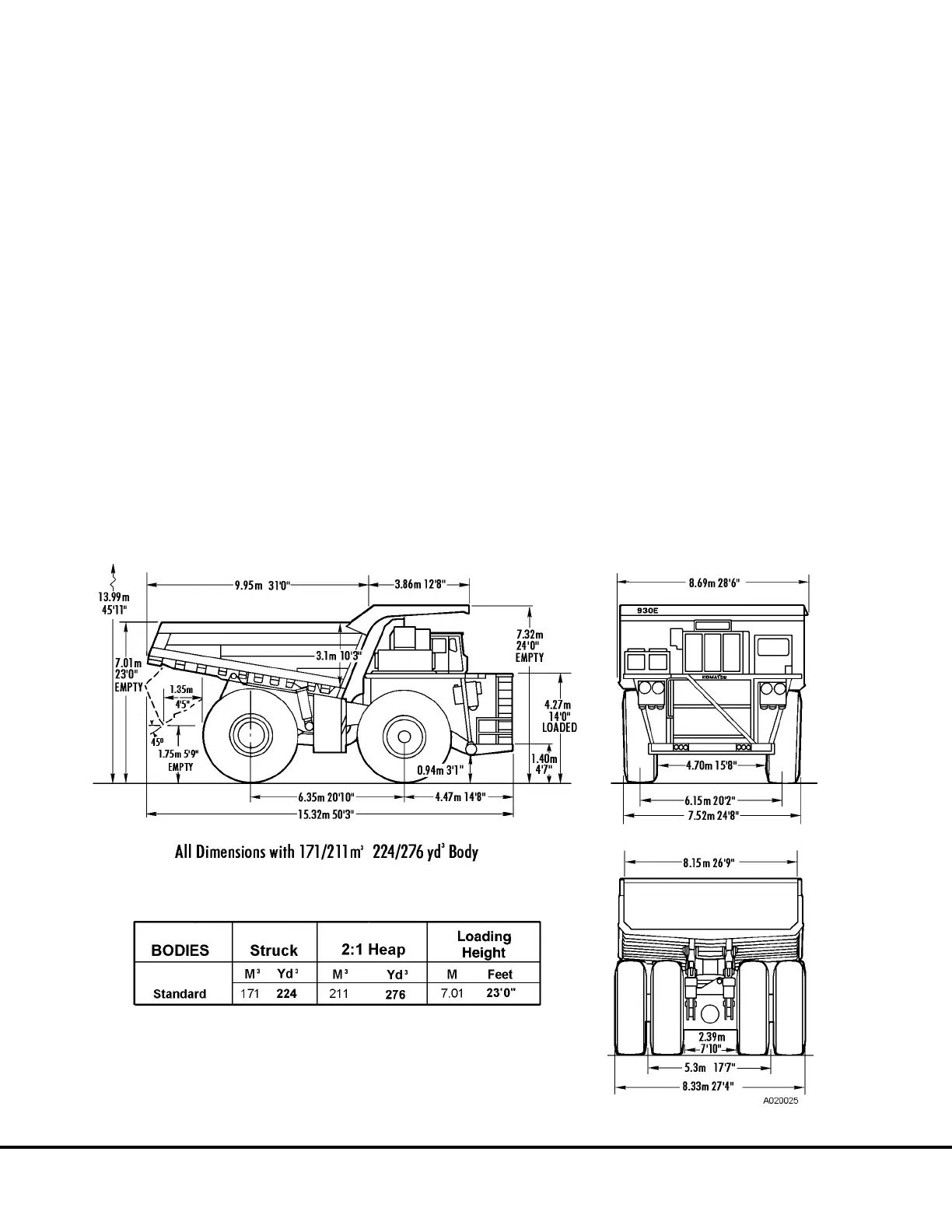

OVERALL TRUCK DIMENSIONS
