Komatsu 930E-2 - Brake Valve

1. Actuator Cap
2. Adjustment Collar
3. Nut
4. Actuator Plunger
5. Wiper Seal
6. Poly-Pak Seal Assembly
7. Glyde Ring Assembly
8. Regulator Springs (B1)
9. Plunger Return Spring
10. Spring Seat
11. Spool Return Spring (B1)
12. Regulator Sleeve (B1)
13. Regulator Spool (B1)
14. Reaction Plunger (B1)
15. Base Plate
16. Reaction Plunger (B2)
17. Regulator Sleeve (B2)
18. Regulator Spool (B2)
19. Spool Return Spring (B2)
20. Regulator Springs (B2)
21. Staging Seat
A. Adjustment Collar Maximum
Pressure Contact Area
B. Automatic Apply Piston Area
C. PX Port
D. Tank Port
E. Reactionary Pressure Area
F. Brake Apply Port
G. Orifice
H. Supply Port
NOTE:
B1 - Rear Brakes
B2 - Front Brakes

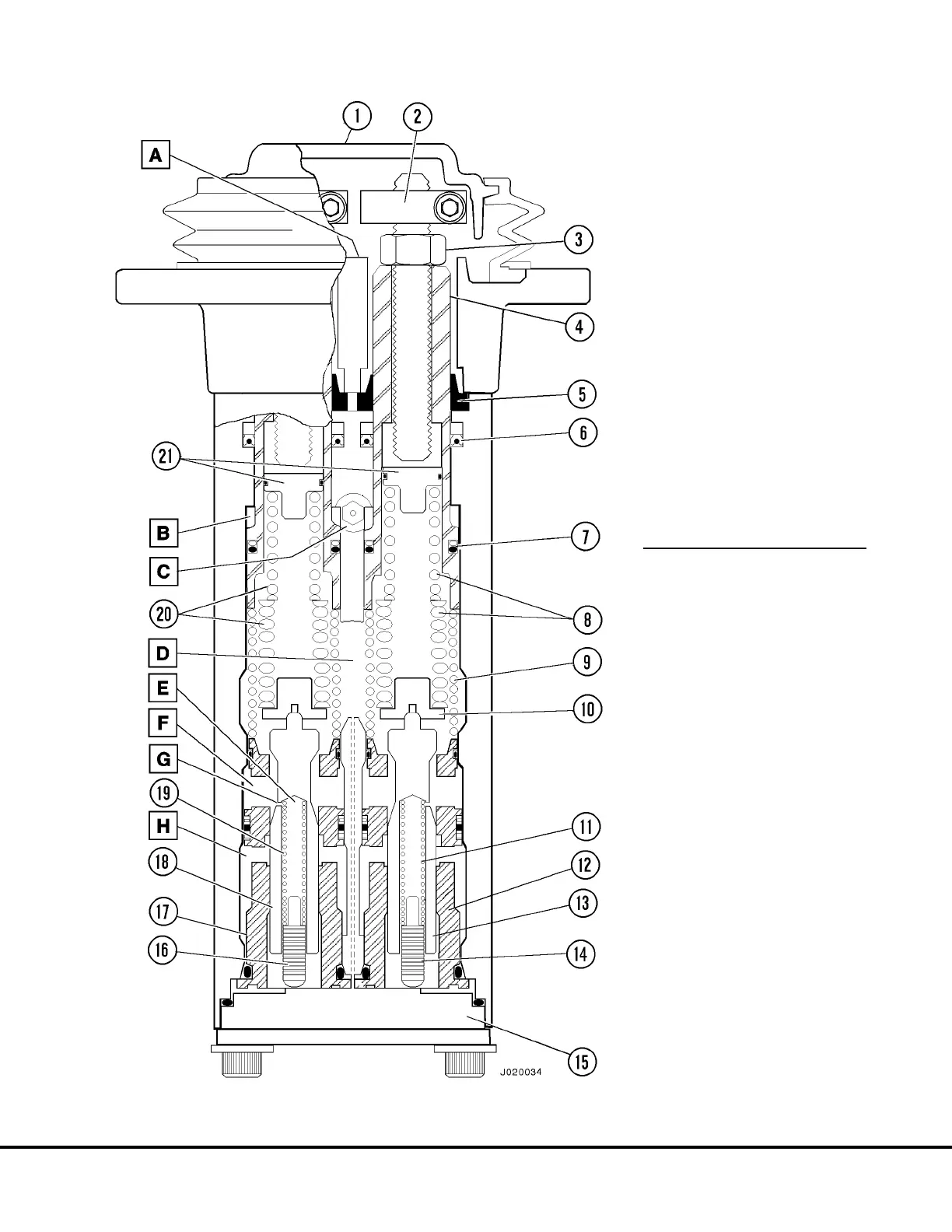

FIGURE 2-2. BRAKE VALVE
(FULL CUT-AWAY)
J02027 Brake Circuit J2-5
