Komatsu 930E-2 - Overhead Status; Warning Indicator Lights

Row /
Column
Indicator
Description
Indicator Color -
Wire Index
A1* Not Used Red - 12FD/34TL
B1 Low Steering Pressure Red - 12F/33A
C1 Low Accumulator Press. Red - 12F/33K
D1 Not Used Red - 12F/79V
E1 Low Brake Pressure Red - 12F/33L
A2* Low Hydraulic Tank Level Red - 12MD/34LL
B2* Not Used Red - 12FD/SPR1
C2* Circuit Breaker Tripped Amber - 12MD/31CB
D2* Hydraulic Oil Filter Amber - 12MD/39
E2* Low Fuel Amber - 12MD/38
A3* Park Brake Applied Amber - 12MD/52A
B3* Service Brake Applied Amber - 12MD/44L
C3* Body Up Amber - 12MD/63L
D3* Dynamic Retarding Amber - 12MD/44DL
E3 STOP ENGINE Red - 12M/509MA
A4* Not Used Amber - 12MD/SPR2
B4* Manual Back-Up Lights Amber - 12MD/47L
C4* 5 Min. Shutdown Timer Amber - 12MD/23L1
D4* Retard Speed Control Amber - 12MD/31R
E4* CHECK ENGINE Amber - 12MD/419
Row /
Column
Indicator
Description
Indicator Color -
Wire Index
A5 No Power Red - 12M/75-6PI
B5
Propulsion System
Warning
Amber - 12F/79WI
C5
Propulsion System
Temperature
Amber - 12F/34TW
D5
Hydraulic Oil
Temperature High
Red - 12F/34TGI
E5* STOP ENGINE Red - 12FD/528AL
A6 No Propel Red - 12M/75NPI
B6* Propel System @ Rest Amber - 12MD/72PR
C6*
Propel System
Not Ready
Amber -12MD/72NR
D6*
Reduced
Propulsion System
Amber -12MD/72LP
E6*
Retard @
Continuous Level
Amber - 12MD/76LR
– SWITCHES –
7 Hazard Lights (N.O.) 11L/45L/45R
8
Lamp Check (N.O.
Momentary)
33H/710
Note: Brightness for lamps marked “*” can be adjusted
using the dimmer control.

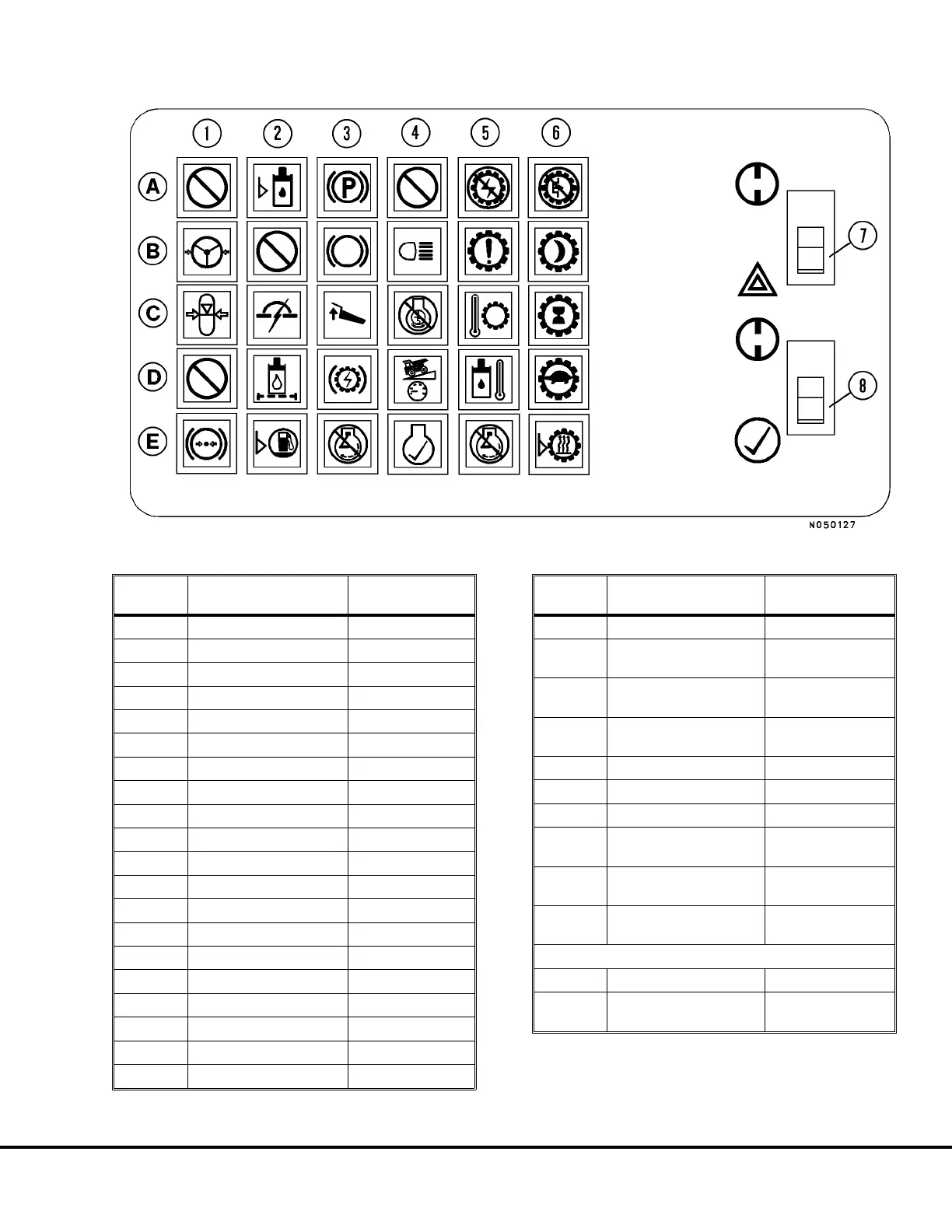

FIGURE 5-6. OVERHEAD STATUS / WARNING INDICATOR LIGHTS
N05044 Operator Cab Controls N5-19
