Komatsu 930E-2 - Pump, Front Housing

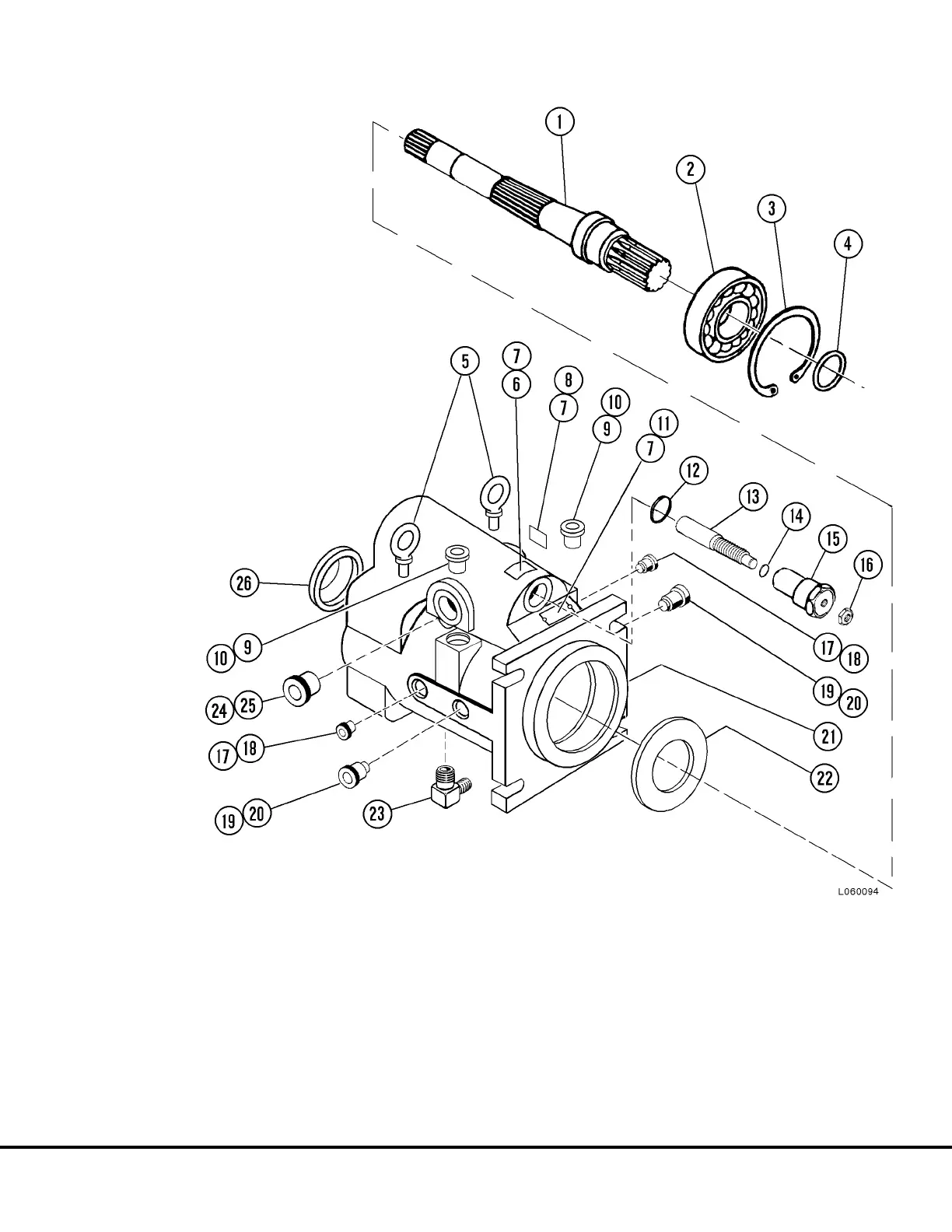

FIGURE 6-13. PUMP, FRONT HOUSING
1. Shaft
2. Bearing
3. Snap Ring
4. Retainer Ring
5. Lifting Eyes
6. Name Plate
7. Screw, Drive
8. Name Plate
9. Plug
10. O-Ring
11. Plate
12. O-Ring
13. Stem
14. O-Ring
21. Housing
22. Seal Retainer
23. Elbow Fitting
24. Plug
25. O-Ring
26. Seal
15. Gland
16. Jam Nut
17. Pin
18. O-Ring
19. Pin
20. O-Ring
L06021 Steering Circuit Component Repair L6-15
