TRUCK CAB
Description
The truck cab is a fully insulated design incorporating
an integral ROPS structure for maximum operator
comfort and safety. All gauges, switches, and controls
have been designed to simplify operation and are
placed within easy reach of the operator. Servicing of
cab and associated electrical systems is simplified by
use of heavy-duty connectors on the various wiring
harnesses. Hydraulic components are located outside
of the interior and are accessed through covers (2,
Figure 2-1) on the front of the cab.
DO NOT attempt to modify or repair damage to the
ROPS structure without written approval from the
manufacturer. Unauthorized repairs to the ROPS
structure will void certification. If modification or
repairs are required, contact the servicing
Komatsu Distributor.

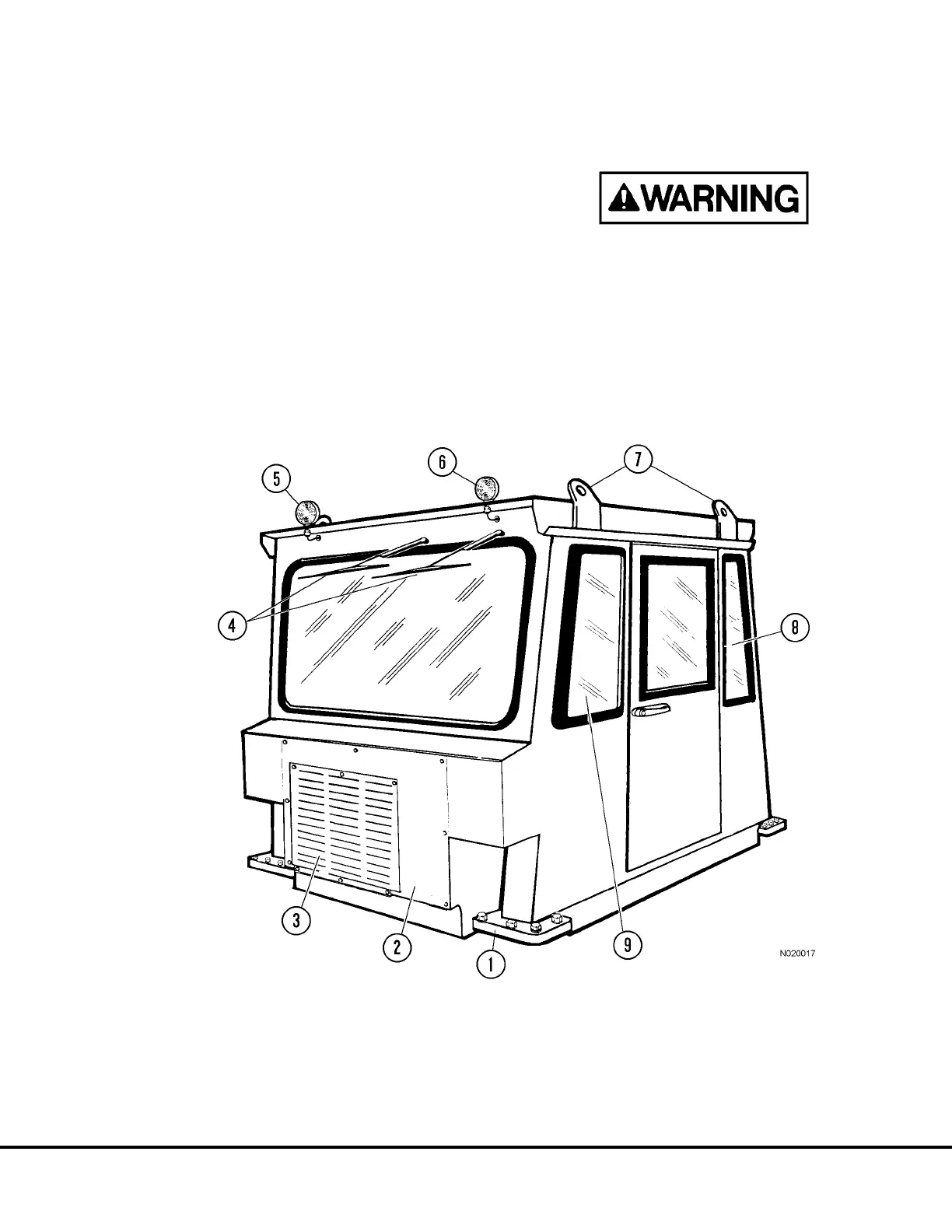

FIGURE 2-1. CAB ASSEMBLY
1. Mounting Pad
2. Access Covers
3. Filter cover
4. Windshield Wiper Arms
5. Stop Light (Service Brakes Applied)
6. Retard Light (Retarder Applied)
7. Lifting Eye
8. Rear, Side Glass
9. Front, Side Glass
N02015 4/00 Truck Cab N2-1
