Komatsu 930E-2 - Work Ports Spool Section Assembly

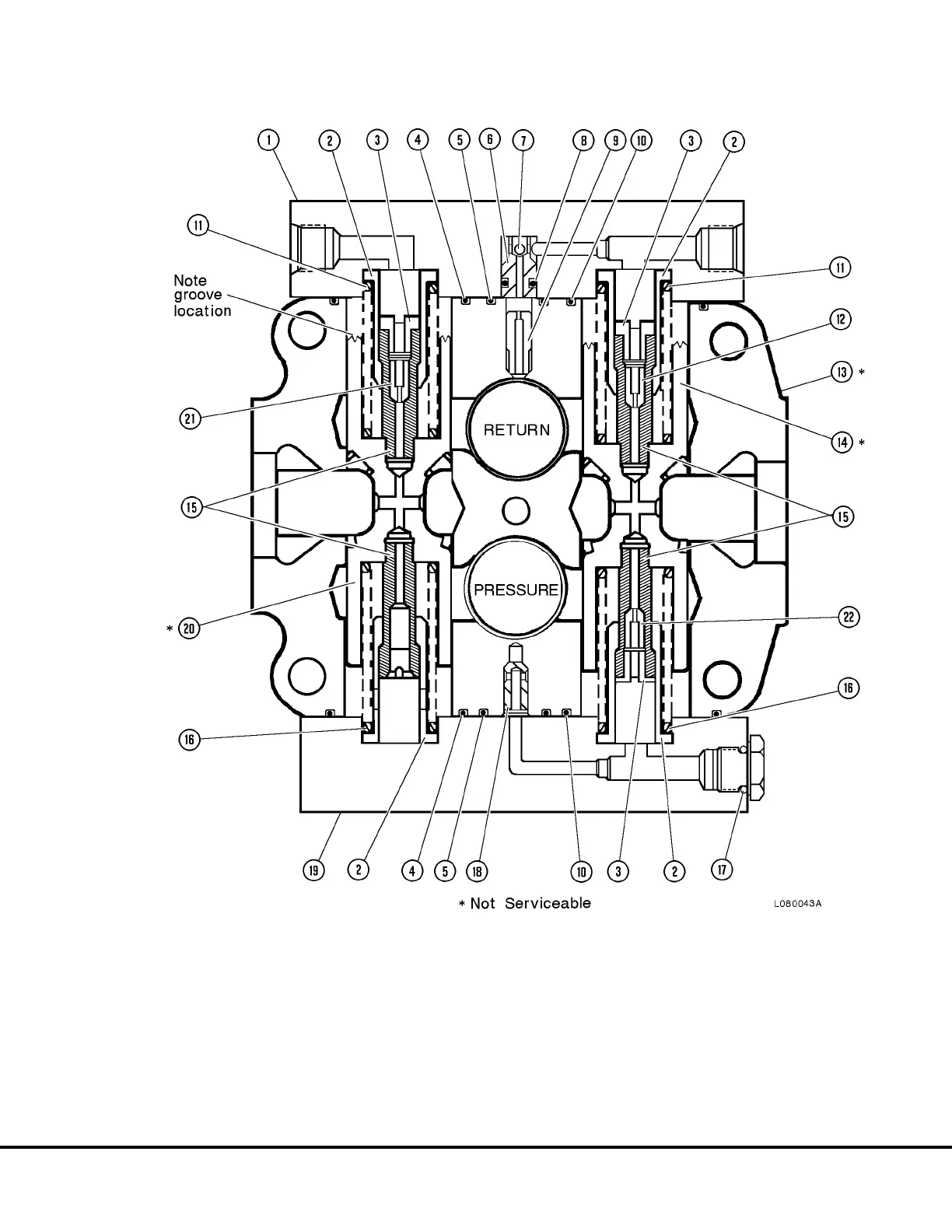

FIGURE 8-9. WORK PORTS SPOOL SECTION ASSEMBLY
1. Spool Cover
2. Spring Seat
3. Plug
4. O-Ring
5. O-Ring
6. Poppet
7. Ball
15. Spool End
16. Spring (Blue)
17. O-Ring
18. Poppet
19. Spool Cover
20. Spool Assembly
21. Restrictor Poppet (Green)
22. Restrictor Poppet (White)
8. O-Ring
9. Restrictor Poppet
10. O-Ring
11. Spring
12. Restrictor Poppet (Red)
13. Spool Housing
14. Spool Assembly
L08024 Hoist Circuit Component Repair L8-5
