Komatsu 930E-2 - Heater;Air Conditioner Assembly

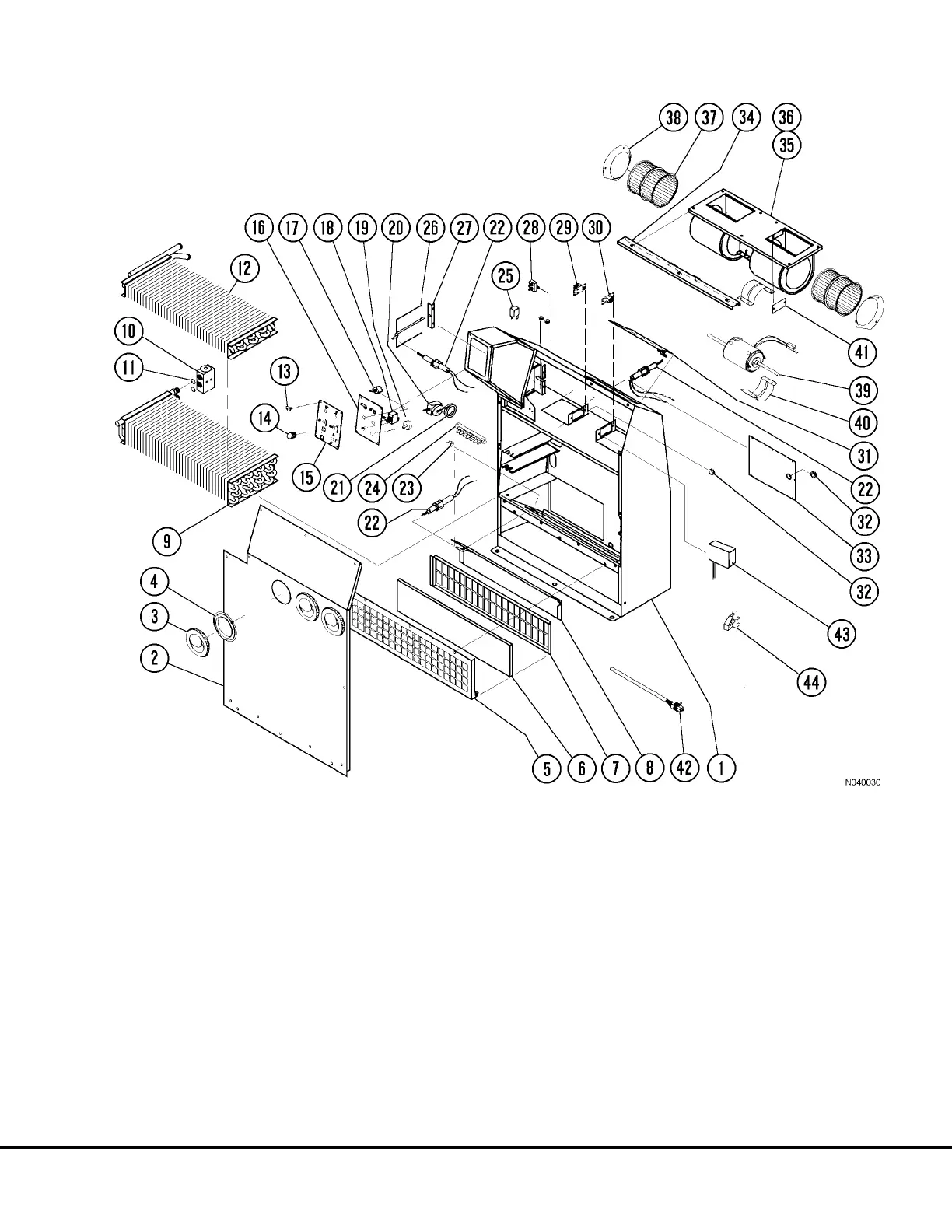

FIGURE 3-5. HEATER/AIR CONDITIONER ASSEMBLY
1. Casing
2. Cover
3. Louver
4. Adaptor
5. Filter Grille
6. Air Filter
7. Filter Holder
8. Fresh Air Flapper
9. Evaporator Coil
10. Block Valve
11. O-Ring
12. Heater Coil
13. Screw
14. Knob
15. Label Overlay
16. Control Plate
17. Blower Switch
18. Toggle Switch
19. Selection Control
20. Thermostat
21. Hose
22. Actuator
23. Flapper Bracket
24. Junction Block
25. Relay
26. Bi-level Flapper
27. Flapper Bracket
28. Circuit Breaker
29. Resistor, 12 Volt
30. Resistor, 24 volt
31. Defroster Flapper
32. Grommet
33. Electrical Box Cover
34. Blower Mount
35. Blower Assembly
36. Blower Housing
37. Blower Wheel
38. Venturi
39. Blower Motor
40. Motor Mount
41. Cover Plate
42. Wiring Harness
43. Heater Control Module
44. Water Control Valve
