FUEL TANK

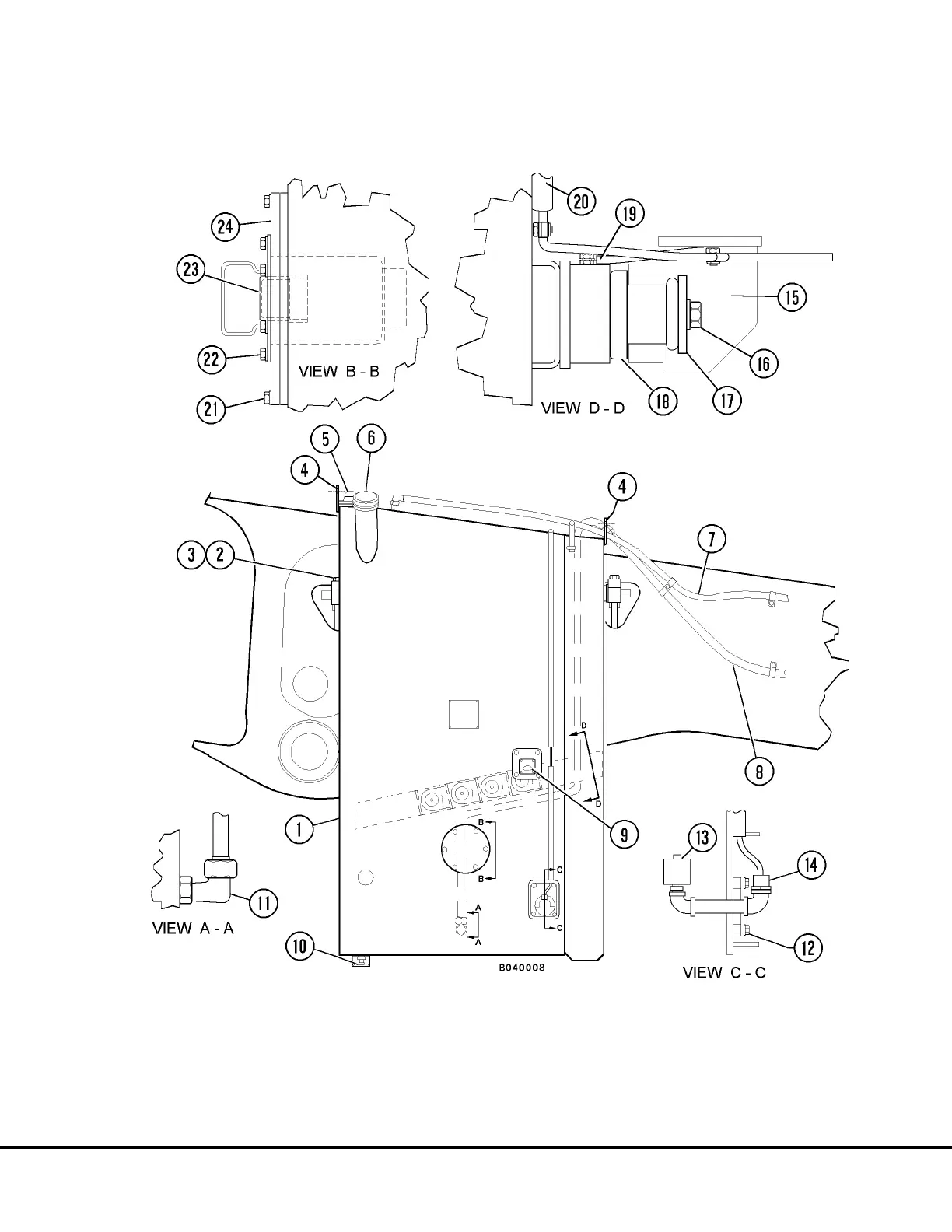

FIGURE 4-1. FUEL TANK INSTALLATION
1. Fuel Tank 7. Fuel Return Hose 13. Low Fuel Switch 19. Ground Wire
2. Capscrews & L/W’s 8. Fuel Supply Hose 14. Wire Harness 20. Wire Harness
3. Mounting Cap 9. Fuel Gauge Sender 15. Tank Mount Bracket 21. Capscrews & L/W’s
4. Lifting Brackets 10. Drain Cock 16. Capscrew, F/W, L/W 22. Capscrews & L/W’s
5. Breather 11. Fuel Supply Connector 17. Flat Washer 23. Refueling Cap
6. Filler Cap 12. Capscrews & L/W’s 18. Rubber Dampener 24. Wiggins Receiver Assy.
B04015 Fuel Tank B4-1
