Komatsu 930E-2 - TCI Analog Input Checks

TCI Analog Input Checks:
On the TCI PTU:
¤
Move cursor to “Normal Operation” {enter}
¤
Cursor to “TCI Real Time Data” {enter}

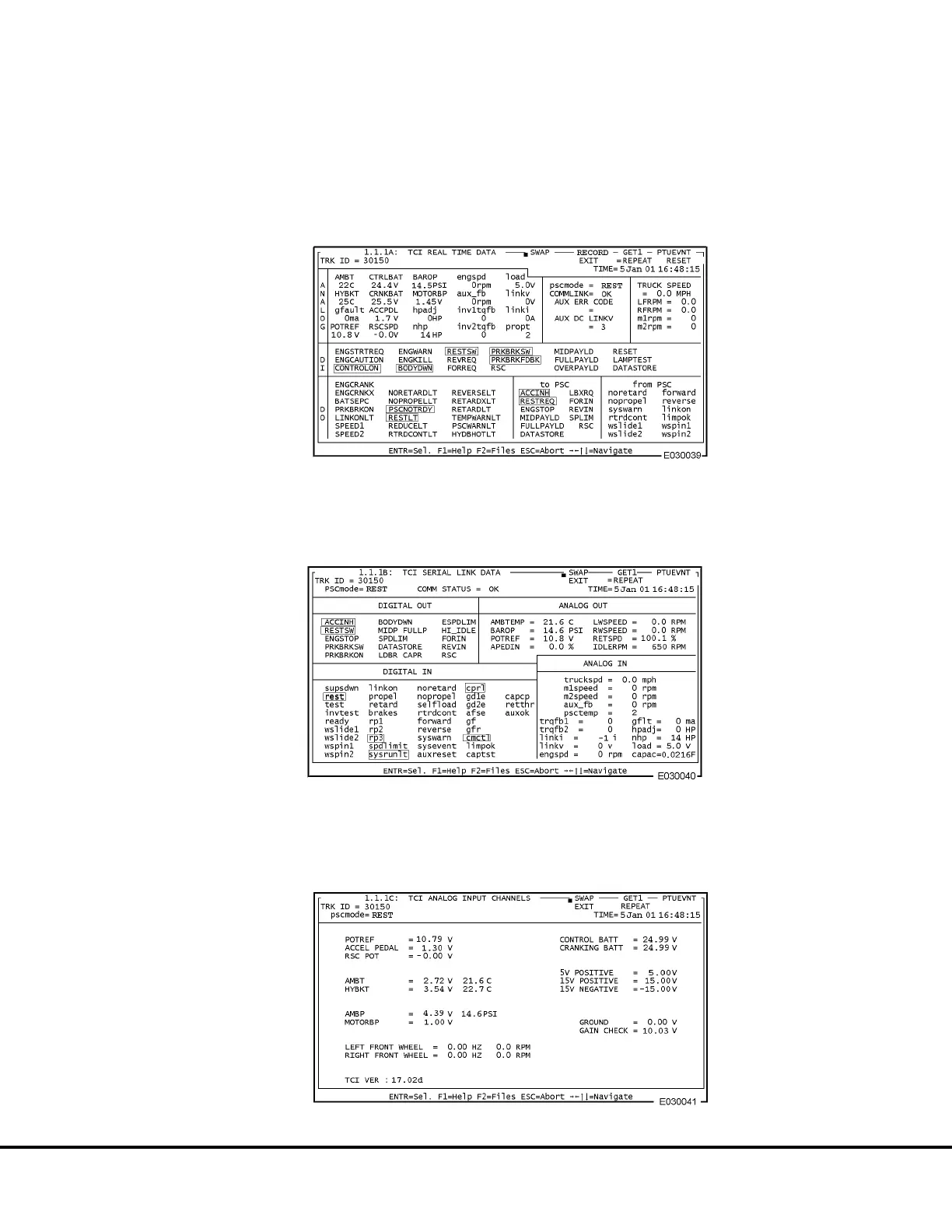

1. Verify analog values and functions highlighted on the PTU are similar to the examples below:
Note: Actual values shown
in illustrations will vary from
those displayed on truck
being serviced:
2. Press {enter} to display “TCI SERIAL LINK DATA” screen shown below:
3. Press {enter} to display “TCI ANALOG INPUT CHANNELS” screen below:
E03015 3/01 AC Drive System Electrical Checkout Procedure E3-13
(Release 17 Software)
