Komatsu 930E-2 - Brake Valve and Pedal Assembly

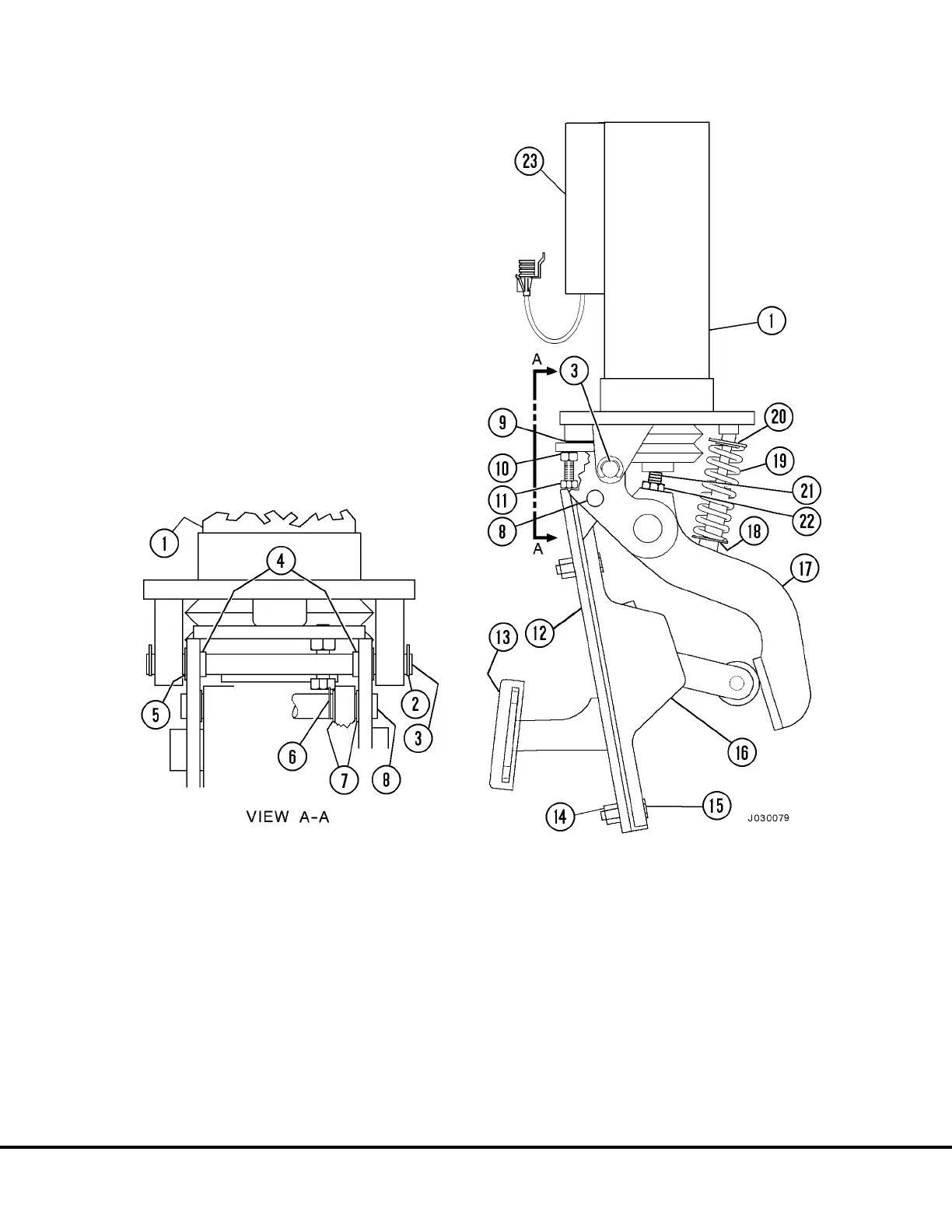

FIGURE 3-10. BRAKE VALVE AND PEDAL ASSEMBLY
1. Brake Valve
2. Retainer Clip
3. Pivot Shaft
4. Bushings
5. Shims
6. Retainer Clip
7. Nylon Bearing
8. Pivot Shaft
9. Place 0.010 in. Shim Here
10. Jam Nut
11. Capscrew
12. Pedal Structure
13. Pad
14. Nut
15. Capscrew
16. Electronic Retard Pedal Assembly
17. Brake Pedal Actuator
18. Spring Pivot (Lower)
19. Spring
20. Spring Pivot (Top)
21. Set Screw
22. Jam Nut
23. Differential Pressure Switch
J3-14 Brake Circuit Component Service J03019 1/99
