Installation
NOTE: Sleeve alignment tool, part number EH4638
included in tool group, should be used to hold bearing
spacers (4, Figure 3-8) and spherical bearings (11) in
position when pins are inserted during assembly.
1. Align steering cylinder (1) or tie rod end (5) bearing
bore with pin bores in spindle or frame. Insert
bearing spacers (4) and washer (8) if used.
NOTE: Tie rod is to be installed with clamping bolts
toward the rear of the truck.
2. Install pins (16), capscrews (3) and retainers (10)
and secure with locknut (9). Tighten to 750 ft. lbs.
(1017 N.m) torque.
3. Connect hydraulic and lubrication lines to their
respective ports. Operate steering and check for
leaks and proper operation.
Bearing Replacement
1. Remove capscrews (2, Figure 3-9) and lockwash-
ers (3). Remove bearing retainer (4).
2. Press bearing (1) out of bore in steering cylinder
or tie rod end.
3. Press new bearing into bore.
4. Install bearing retainers with capscrews and lock-
washers. Tighten capscrews to standard torque.

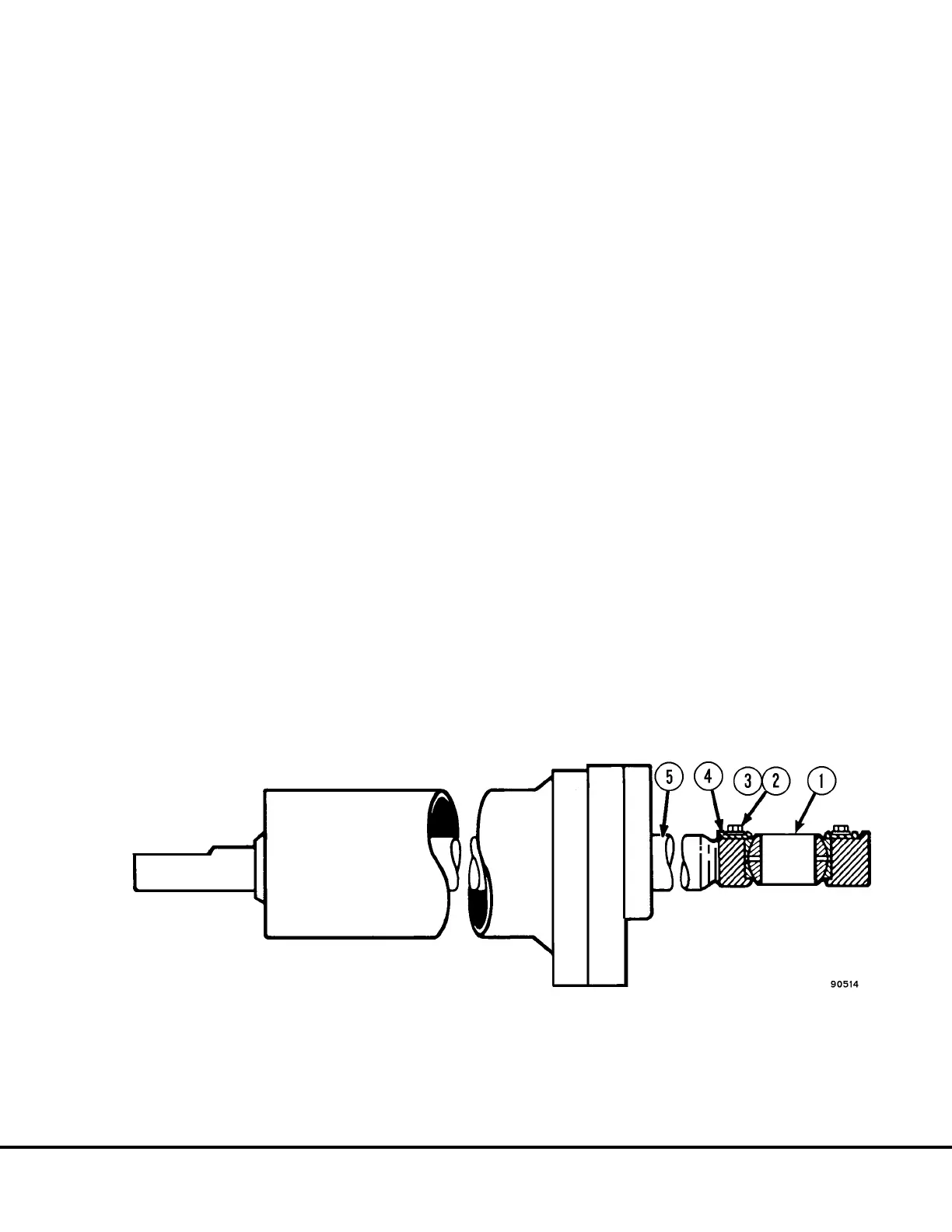

FIGURE 3-9. TYPICAL BEARING INSTALLATION
(Steering Cylinder Shown for Reference)
1. Bearing
2. Capscrew
3. Lockwasher
4. Bearing Retainer
5. Rod End
G03017 02/01 Front Wheel Hub and Spindle G3-11
