PART NO. DESCRIPTION USE
Make
Locally
Adapter Plate
Use with ED8860
Engine Turning Tool
as shown above.
PART NO. DESCRIPTION USE
ED8860*
Engine Turning
Tool
(MTU Engine Only)
To Rotate
Engine Crankshaft
NOTE:
To use this tool for the MTU/DDC 4000 Series Engine,
it must be used with the locally made Adapter Plate.
* This tool may also be acquired as MTU Part Number
F6 555 766.
PART NO. DESCRIPTION USE
ED8860
w/Adapter
Plate
Engine Turn-over
Tool for MTU/DDC
4000 Series
Engine
To Rotate
Engine Crankshaft

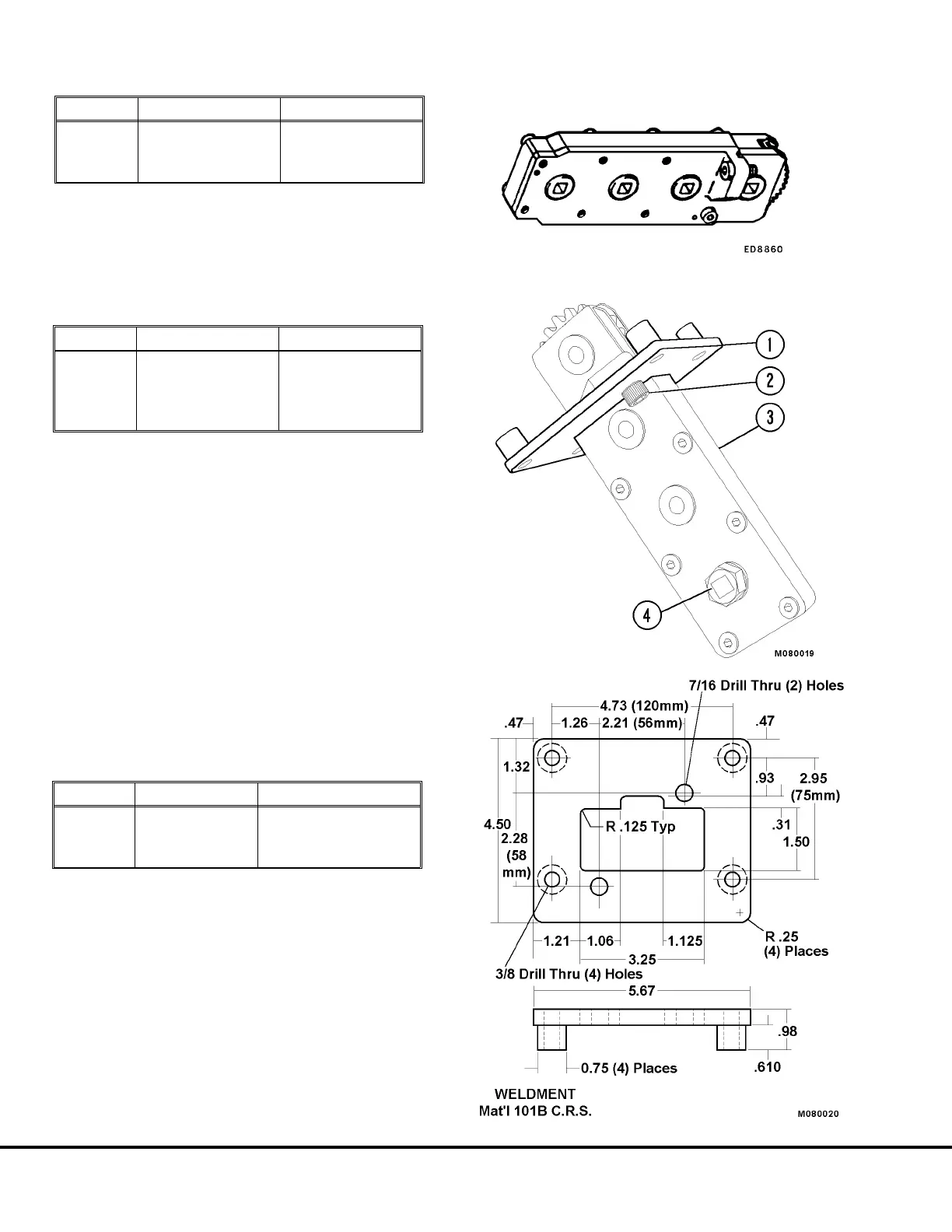

NOTE: To use the MTU engine turn-over tool for the
MTU/DDC 4000 Series Engine, it must be used with the
locally made Adapter Plate as shown here.
Remove screen/cover plate on the bottom of the engine
flywheel housing at the 5 or 7 o’clock position.
Install assembly and use 1/2" drive wrench in driver
socket (4) to turn engine.
1. Adapter Plate 3. ED8860 Turn-over Tool
