Remove the screw at the lower end of the window
channels. It is necessary to pull the rubber felt insert
(2, Figure 2-10) out of the channel in order to be able
to remove the screws.
9. Remove the trim material covering the screws
holding the window frame to the door. Remove
screws (1, Figure 2-11) holding window frame to
the door.
Note: Screws along the bottom of window frame may
be shorter than along the top and sides.
Lift door glass up in the frame (1, Figure 2-12) so that
it is near the top. Holding the glass in place, tilt frame
out at the top. Lift frame and glass straight up and out
of door.
Bracket (2, Figure 2-9) at bottom of glass must clear
the door frame, if still on glass.
10. Move window glass and frame to an area where
the glass can be removed. Slide the glass down
and out of the window channels.
11. Before installing new window glass, first inspect
the window frame. In each corner there is an "L"
shaped bracket with 2 screws in it to hold the
corners of the frame together. Check the screws
(1, Figure 2-13) to be sure they are tight. Also be
sure the rubber felt insert in the window channels
is in good condition. Replace, if necessary.
12. Slide the new window glass into the window frame
glass channels. Move the glass to the top of the
frame.
13. Lift window frame, holding glass at the top of the
frame, and lower the assembly into the door.

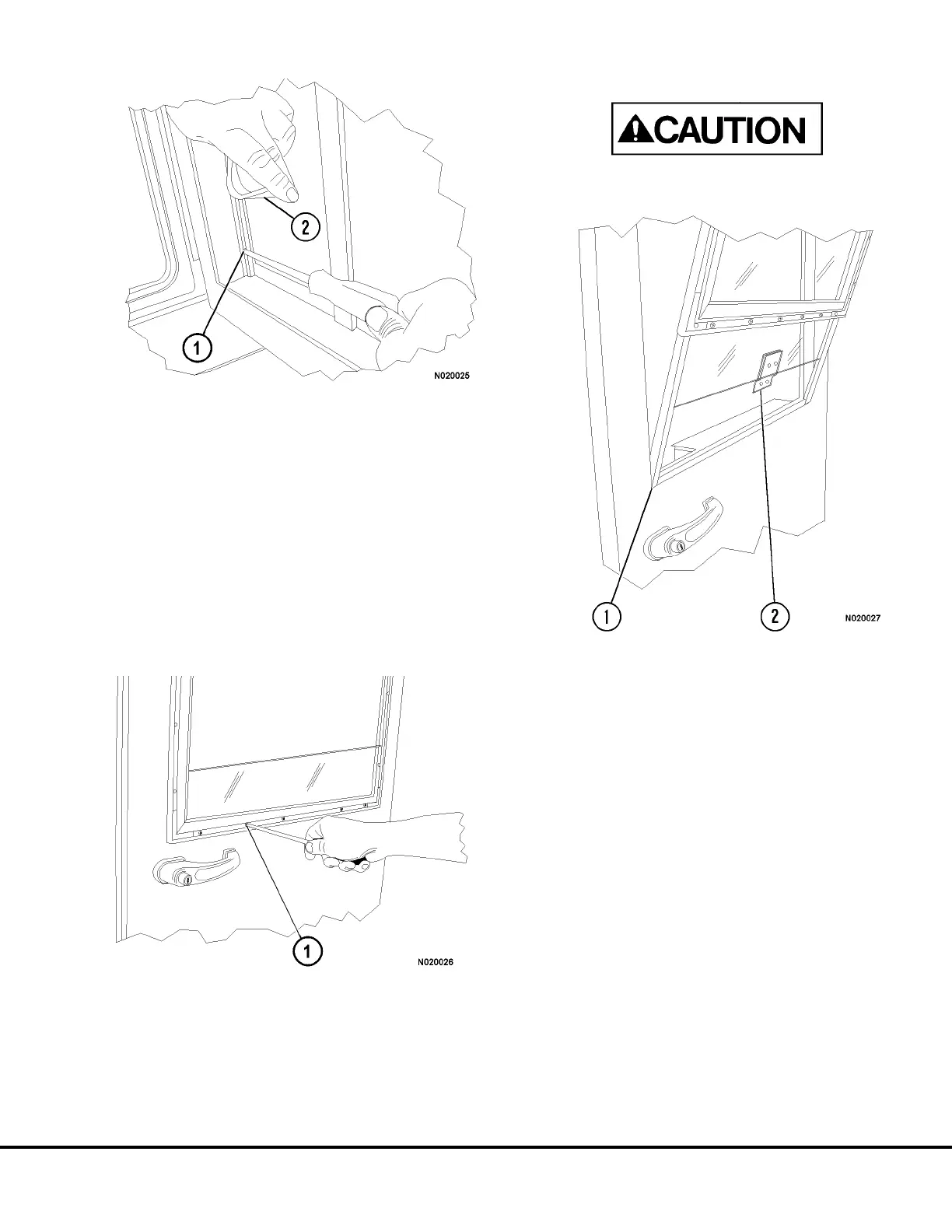

FIGURE 2-10.
1. Screws 2. Rubber Felt Insert
FIGURE 2-11.
1. Screws
FIGURE 2-12.
1. Window Frame 2. Window Bracket
