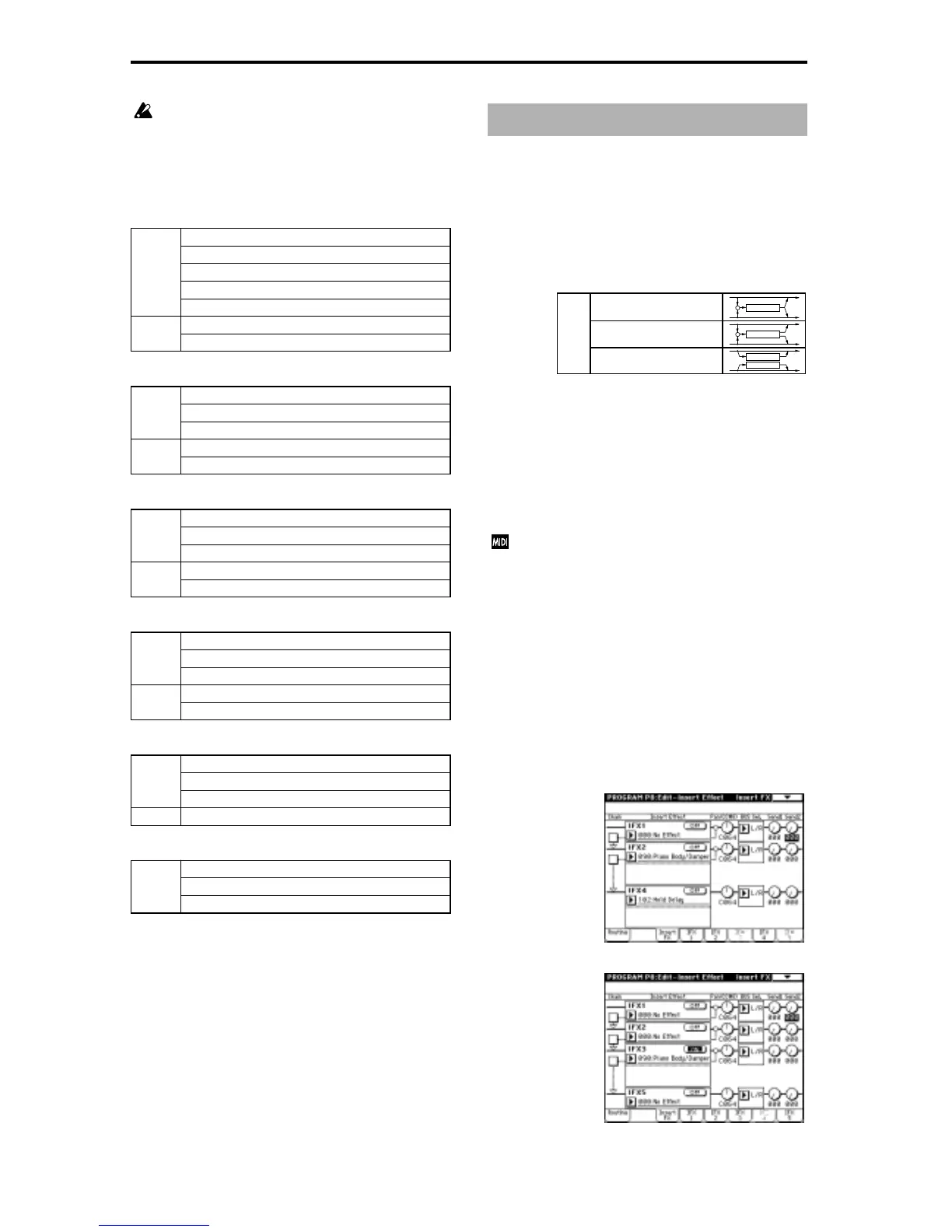

146
The TRITON does not have an input level meter to
detect the effect input level. If the input level is too low,
the S/N ratio may decrease. On the other hand, if the
input level is too high, clipping may occur.
The following table shows the parameters related to the
level settings:
Program mode
Combination mode
Sequencer mode
Song Play mode
Sampling mode
Global mode
*2
*1
Some effects may not have these parameters.
*2
Use this parameter to set the Audio Input Level in all
modes other than Sampling mode.
1. In/Out
Insert Effects (IFX 1, 2, 3, 4, 5) have a stereo input and a ste-
reo output. If you select Dry (no effect) for the “Wet/Dry”
parameter, the stereo input signal will be output in stereo
without being processed by the effect. If you select Wet
(effect applied), the processed signal will be output in one of
the following ways:
If you select 000: No Effect, stereo input signals are output
in stereo without being processed.
The possible routing of stereo inputs and outputs is indi-
cated in the upper left corner of the block diagram.
Pressing the “On/Off” switch of IFX 1–5 in the P8:
“InsertFX” tabs in each mode will toggle between ON and
OFF. When OFF is selected, the effect will be bypassed, and
the stereo input signal will be output in stereo without being
processed.
The TRITON can also turn IFX1–5 off by receiving MIDI
control change message CC#92. Value 0 will turn them
off, and value 1–127 will turn them on. You can also use
“Effect Global SW” (Global P0: 0–1b) to turn IFX1–5 on
and off. This MIDI control is performed on MIDI Global
Channel “MIDI Channel” (Global P1: 1–1a).
Double-size effects
Double-size effects 090–102 use twice the area of what
other effects use.
You can select them for Insert Effects IFX2, IFX3, and IFX4.
Note that if you select a double-size effect for IFX2, you can-
not use IFX3. In the same way, if you select a double-size
effect for IFX3 or IFX4, you cannot use IFX4 or IFX5 respec-
tively.
Selecting double-size effects for IFX2 and IFX4
Selecting a double-size effect for IFX3
Input OSC1/2 High, Low Level (P1)
Filter1/2 Trim (P3)
Amp1/2 Level (P4)
Send1/2 (P8)
Effect Trim parameter
*1
(P8, P9)
Output Effect Wet/Dry parameter (P8, P9)
Return1, 2 (P9)
Input Volume (P0, P1)
Send1/2 (P8)
Effect Trim parameter
*1
(P8, P9)
Output Effect Wet/Dry parameter (P8, P9)
Return1, 2 (P9)
Input Volume (P0)
Send1/2 (P8)
Effect Trim parameter
*1
(P8, P9)
Output Effect Wet/Dry parameter (P8, P9)
Return1. 2 (P9)
Input Volume (P0)
Send1/2 (P8)
Effect Trim parameter
*1
(P8, P9)
Output Effect Wet/Dry parameter (P8, P9)
Return1, 2 (P9)
Input AUDIO INPUT LEVEL on the rear panel
Level (P0)
Effect Trim parameter
*1
(P8)
Output Effect Wet/Dry parameter (P8)
Input AUDIO INPUT LEVEL on the rear panel
Level (P0)
Send1/2 (P0)
Insert Effects (IFX 1, 2, 3, 4, 5)
Stereo In - Stereo Out
Mono In - Mono Out
Mono In - Stereo Out
Effect
Effect
Effect
+
Effect
+
Wet
