Sequencer
P0
P1 P2 P3 P4 P5 P6 P7 P8 P9
49

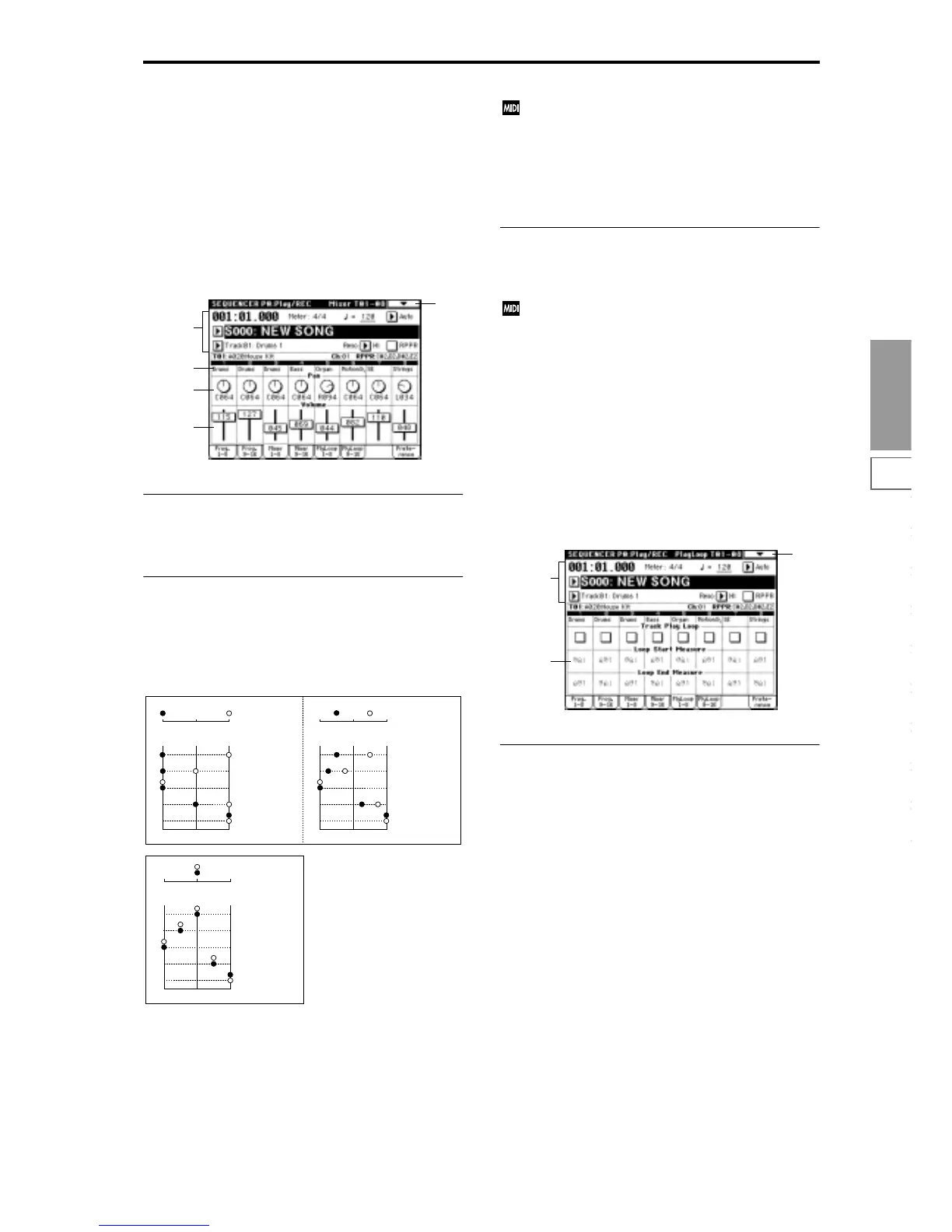

0–3: Mixer 1–8 (Mixer T01–08)
0–4: Mixer 9–16 (Mixer T09–16)
Here you can set the pan and volume of each track.
The pan and volume that you specify here will be used
when you playback or record from the beginning of the
song. If you change the settings during recording, the
changes will be recorded as musical data, and pan and vol-
ume will change during playback. You can also change the
settings during playback. However when the song reaches a
location where pan or volume data was recorded, the set-
tings will change accordingly.
0–3(4)a: Program Category
This area shows a portion of the category name for the pro-
gram used by the track.
0–3(4)b: Pan
Pan (Panpot) [RND, L001...C064...R127]
Set the pan of tracks 1–16.
L001...C064...R127: A setting of L001 is far left, and R127 is
far right. A setting of C064 will reproduce the pan setting of
the oscillator in Program mode.
If a mono-type insertion effect is inserted, this setting will be
ignored. In this case, the P8: Insert Effect Insert FX tab “Pan
(CC#8)” setting will adjust the pan of the sound following
the insertion effect.
RND: The sound will be panned randomly at each note-on.
If “Status” (2–1a, 2a) is INT or BTH, CC#10 Panpot can
be received to control the panning. When receiving
CC#10, a value of 0 or 1 is far left, 64 is center, and 127 is
far right. When you change the song or return to the
beginning of the song, tracks whose “Status” is EXT,
EX2 or BTH will transmit the pan you specify here as a
MIDI message (except for RND).
0–3(4)c: Volume
Volume [000...127]
Set the volume of tracks 1–16.
When “Status” (2–1a) is INT or BTH, CC#7 Volume can
be received to control the volume. The volume of a
track is determined by multiplying the MIDI Volume
(CC#7) and Expression (CC#11) values. When you
change the song or return to the beginning of the song,
tracks whose “Status” is EXT, EX2 or BTH will transmit
the volume you specify here as a MIDI Volume mes-
sage.
0–5: PlyLoop 1–8 (PlayLoop T01–08)
0–6: PlyLoop 9–16 (PlayLoop T09–16)
When playing/recording a song, you can independently
loop the playback of tracks 1–16.
0–5(6)a: Play Loop
Track Play Loop
Turn looping on/off for each track 1–16.
Checked: That track will loop between “Start Measure” and
“End Measure.”
Loop Start Measure [001...999]
Specify the first measure of the loop.
Loop End Measure [001...999]
Specify the last measure of the loop.
[Example]
1 Create a basic rhythm section.
Select a drum program for track 1, and realtime-record a
four-measure phrase.
2 Record the bass on track 2. Turn “Track Play Loop” on for
track 1, and set the “Start Measure to 001 and the “End
Measure” to 004. Start realtime recording, and track 1
will repeatedly play measures 1–4. While listening to the
drum part, record a eight-measure bass phrase on track 2.
3 We will record backing guitar riffs on track 3. Check
“Track Play Loop” for track 3, and set “Start Measure” to
001 and “End Measure” to 008. When you start realtime
0–1a
.
.
.
0–1g
0–1
0–3a
0–3b
0–3c
OSC1: Amp1 Pan=L001
OSC2: Amp2 Pan=R127
Left
Center
Right
Pan (CC#10)
C064
Left
Center
Right
L032
L001
R096
R127
Left
Center
Right
Left
Center
Right
OSC1
OSC2
OSC1: Amp1 Pan=L032
OSC2: Amp2 Pan=R096
Pan (CC#10)
C064
L032
L001
R096
R127
OSC1: Amp1 Pan=C064
OSC2: Amp2 Pan=C064
Left
Center
Right
Pan (CC#10)
C064
Left
Center
Right
L032
L001
R096
R127
OSC1
OSC2
0–1a
.
.
.
0–1g
0–1
0–5a
