Program
P0
P1 P2 P3 P4 P5 P7 P8 P9
25
IFX5), set “IFX1” (or IFX2–IFX5) to 000: No Effect, and
set the “BUS Select” (8–2a) after passing through IFX to
1/2 or 3/4.
8–1d: OSC MFX Send (Oscillator Master Effect
Send)
OSC1:
Send1 (to MFX1) [000...127]
Set the volume (send level) at which the output of OSC1 will
be sent to master effect 1. This is valid when “BUS Select”
(8–1c) is set to L/R or Off.
If “BUS Select” is set to IFX1, IFX2, IFX3, IFX4 or IFX5, the
send levels to master effect 1 and 2 are set by “Send 1” and
“Send 2” (8–2a) after passing through IFX 1/2/3/4/5 of the
Insert FX tabs.
Send2 (to MFX2) [000...127]
Set the volume (send level) at which the output of OSC1 will
be sent to master effect 2 (
☞“Send 1 (to MFX1)”).
OSC2:
Send1 (to MFX1) [000...127]
Send2 (to MFX2) [000...127]
Set the volume (send level) at which the output of OSC2 will
be sent to master effects 1 and 2. These parameters will be
valid when “Oscillator Mode” (1–1a) is set to Double and
“BUS Select” is set to L/R or Off.
CC#93 will control the Send 1 level for OSC 1 and 2,
and control change #91 will control the Send 2 level for
OSC 1 and 2. These are controlled on the global MIDI
channel “MIDI Channel” (Global P1: 1–1a).
The actual send level is determined by multiplying
these values with the send level setting of each oscilla-
tor.

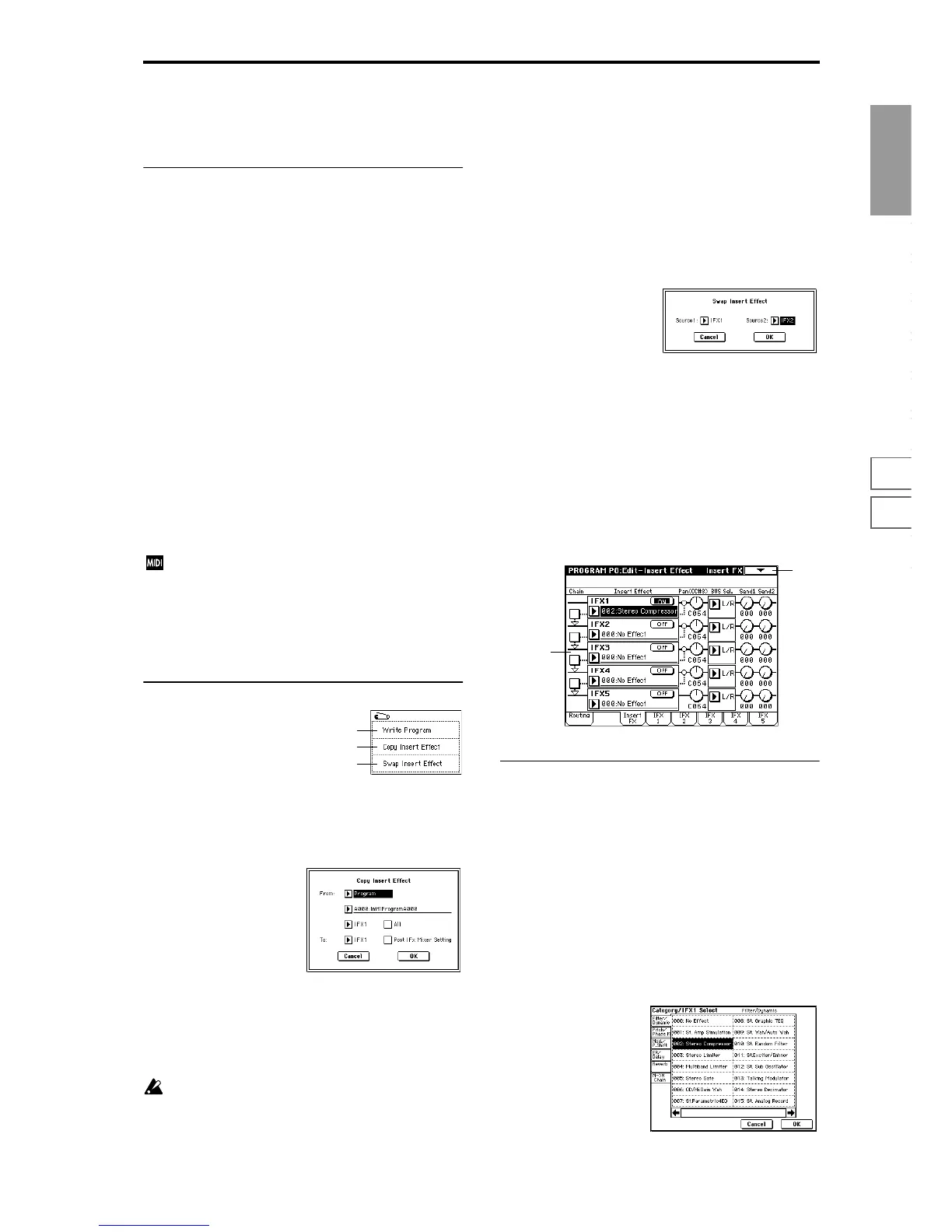

▼ 8–1: Page Menu Command
8–1A: Copy Insert Effect
This command copies effect settings from Program, Combi-
nation, Song, Sampling, or Song Play mode.
1 Select this command to open the following dialog box.
2 In “From” select the copy source mode, bank, and num-
ber.
3 Select the effect that you wish to copy. You can also copy
from a master effect. If “All” is checked, all effect settings
will be copied (i.e., the contents of the Insert FX tab and
the effect parameters of IFX 1–5, but not “Ctrl Ch”).
If you are copying from a master effect, the result may
not be identical, due to differences in the routing and
level settings of a master effect.
4 Select the copy destination insert effect. If you check
“Post IFX Mixer Setting,” the “Chain,” “Pan#8,” “BUS
Select,” “Send 1” and “Send 2” settings that follow the
copy source insert effect will also be copied. If this is
unchecked, only the effect type and its parameters will
be copied.
5 To execute the Copy Insert Effect command, press the
OK button. To cancel, press the Cancel button.
8–1B: Swap Insert Effect
This command swaps (exchanges) insert effect settings.
1 Select this command to open the following dialog box.
2 In “Source 1” and “Source 2,” select each of the insert
effects that you wish to swap.
3 To execute the Swap Insert Effect command, press the
OK button. To cancel, press the Cancel button.
8–2: Insert FX
Here you can select the type of each insert effect, turn it on/
off, and make chain settings.
The direct sound (Dry) of an insert effect is always stereo
input and output. The input/output of the effect sound
(Wet) will depend on the effect type (
☞p.146).
8–2a: IFX1, 2, 3, 4, 5 (Insert Effect1, 2, 3, 4, 5)
FX Select (IFX1, 5) [000...089: name]
FX Select (IFX2, 3, 4) [000...102: name]
Select the type of each insert effect.
For “IFX1” and “IFX5” you can select from 90 types of effect:
000: No Effect – 089: Reverb-Gate. Double-size effects can-
not be used.
For “IFX2,” “IFX3” and “IFX4” you can select from 103 types
of effect: 000: No Effect – 102: Hold Delay.
Category/IFX Select
When you press the popup button, a “Category/IFX Select”
list will appear. Press a tab to select a category of effects, and
select an effect from that category. Press the OK button to
execute, or press the Cancel button to cancel.
0–1A
8–1A
8–1B
8–1
8–2a
