16
At (Attack Level) [–, 0, +]
Specify the direction in which “AMS” will affect “Attack
(Attack Level).” When “Intensity” has a positive (+) value, a
setting of + for this parameter will allow “AMS” to raise the
EG level, and a setting of – will allow “AMS” to lower the
EG level. With a setting of 0 there will be no change.
Br (Break Point Level) [–, 0, +]
Specify the direction in which “AMS” will affect “Break
(Break Point Level).” When “Intensity” has a positive (+)
value, a setting of + for this parameter will allow “AMS” to
raise the EG level, and a setting of – will allow “AMS” to
lower the EG level. With a setting of 0 there will be no
change.
3–4c: Time Modulation
These settings let you use alternate modulation to control
the “Time” parameters of the filter 1 EG.
AMS1 (Alternate Modulation Source1) [Off, (KT, EXT)]
Select the source that will control the “Time” parameters of
the filter 1 EG (
☞p.210 “AMS (Alternate Modulation Source)
List”).
Intensity [–99…+99]
Specify the depth and direction of the effect that “AMS1”
will have.
For example if “AMS1” is set to Flt KTr +/+, the EG “Time”
parameters will be controlled by the Keyboard Track (3–2a)
settings. With positive (+) values of this parameter, positive
(+) values of “Ramp (Ramp Setting)” will lengthen the EG
times, and negative (–) values of “Ramp (Ramp Setting)”
will shorten the EG times. The direction of change is speci-
fied by “At,” “Dc,” “Sl,” and “Rl.”
With a setting of 0, the times specified by “Filter 1 EG” (3–
4a) will be used.
If “AMS1” is set to Velocity, positive (+) values of this
parameter will cause EG times to lengthen as you play more
strongly, and negative (–) values will cause EG times to
shorten as you play more strongly.
With a setting of 0, the times specified by “Filter 1 EG” (3–
4a) will be used.
At (Attack Time) [–, 0, +]
Specify the direction in which “AMS1” will affect the attack
time. With positive (+) values of “Intensity,” setting this
parameter to + will allow AMS1 to lengthen the time, and
setting this parameter to – will allow AMS1 to shorten the
time. With a setting of 0 there will be no change.
Dc (Decay Time) [–, 0, +]
Specify the direction in which “AMS1” will affect the decay
time. With positive (+) values of “Intensity,” setting this
parameter to + will allow AMS1 to lengthen the time, and
setting this parameter to – will allow AMS1 to shorten the
time. With a setting of 0 there will be no change.
Sl (Slope Time) [–, 0, +]
Specify the direction in which “AMS1” will affect the slope
time. With positive (+) values of “Intensity,” setting this
parameter to + will allow AMS1 to lengthen the time, and
setting this parameter to – will allow AMS1 to shorten the
time. With a setting of 0 there will be no change.
Rl (Release Time) [–, 0, +]
Specify the direction in which “AMS1” will affect the release
time. With positive (+) values of “Intensity,” setting this
parameter to + will allow AMS1 to lengthen the time, and
setting this parameter to – will allow AMS1 to shorten the
time. With a setting of 0 there will be no change.
AMS2 (Alternate Modulation Source2) [(EXT, KT)]
Intensity [–99…+99]
At (Attack Time) [–, 0, +]
Dc (Decay Time) [–, 0, +]
Sl (Slope Time) [–, 0, +]
Rl (Release Time) [–, 0, +]
These parameters are the settings for “AMS2” to control the
“Time” parameters of the filter 1 EG (
☞“AMS1”–“Rl”).
▼ 3–4: Page Menu Command
3–4A: Sync Both EGs
When this is checked, the filter 1 EG and filter 2 EG can be
edited simultaneously. (Editing either one will modify the
other as well.)
3–5: Filter2
3–6: Filter2 Mod.
3–7: Filter2 lfo Mod
(Filter1 LFO Mod.)
3–8: Filter2 EG
These are the filter 2 parameters (for oscillator 2) (☞“3–1: Fil-
ter 1”–“3–4: Filter 1 EG”).
These will appear when “Oscillator Mode” (1–1a) is Double.

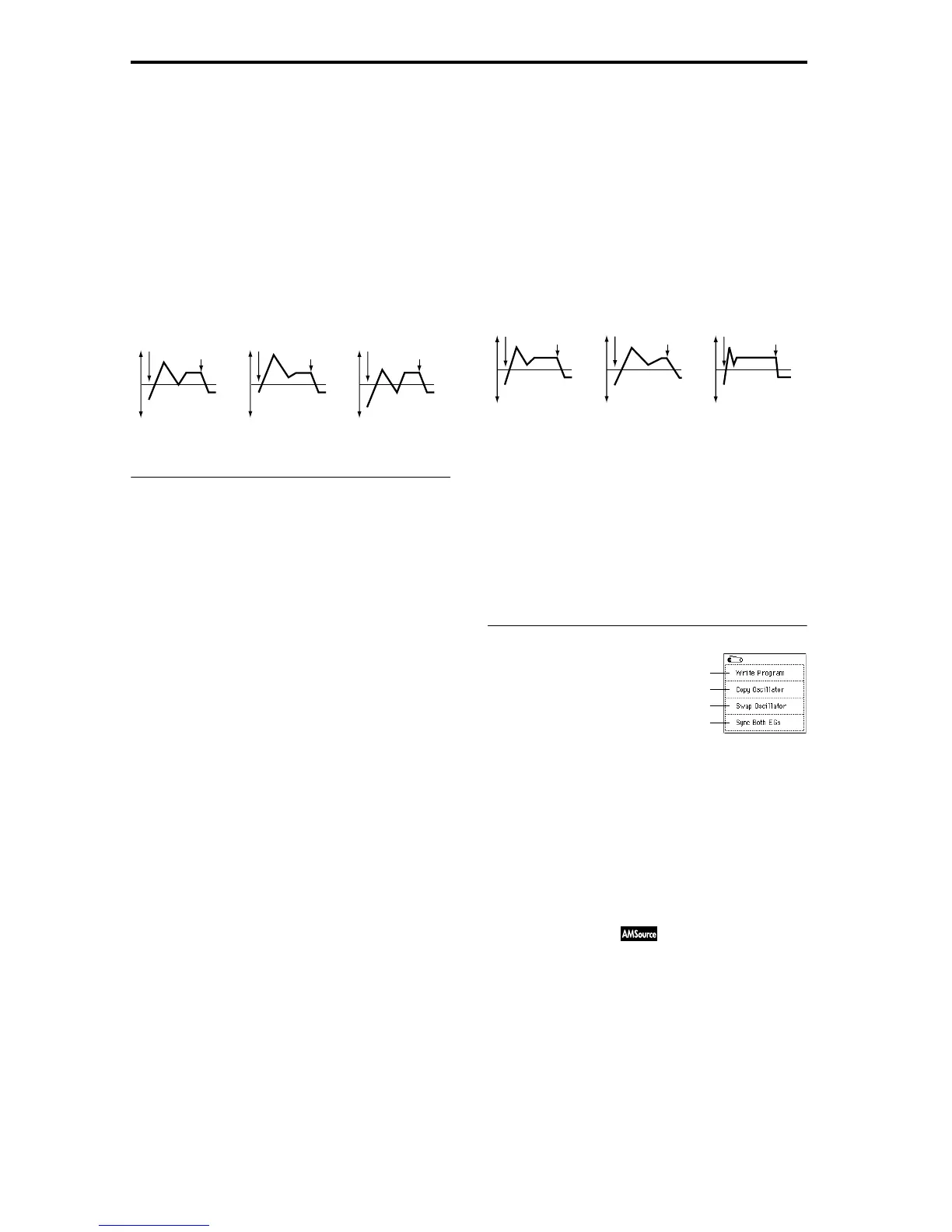

Filter 1 EG changes (level) (AMS = Velocity, Intensity = a positive (+) value)
Note-on
Note-off
Note-on
Note-off
Note-on
Note-off
Softly played note with St,
At, and Br set to + (setting
of 3–4a: Filter 1 EG)
Strongly played note with
St, At, and Br set to +
Strongly played note with
St, At, and Br set to –
Filter 1 EG changes (Time) (AMS = Velocity, Intensity = a positive (+) value)
Note-on
Note-off
Note-on
Note-off
Note-on
Note-off
Softly played note with At,
Dc, Sl and Rl set to +
(setting of 3–4a: Filter 1 EG)
Strongly played note with
At, Dc, Sl and Rl set to +
Strongly played note with
At, Dc, Sl and Rl set to –
0–1A
1–1A
1–1B
3–4A
