Program
P0
P1 P2 P3 P4 P5 P7 P8 P9
27
☞ For details on the master effects, refer to p.150 “8. Effect
Guide.”
9–1: Master FX
Here you can select the master effect types, switch them on/
off, specify chaining, and set the master EQ.
9–1a: Master FX (Master Effect)
The master effects do not output the direct sound (Dry). The
return level (“Return”) sends the effect sound (Wet) to the L
and R bus, and this is mixed with the direct sound (i.e., the
output from P8: Routing tab “BUS Select” L/R, or the L/R
output from Insert FX tab “BUS Select”).
The master effects are monaural input. The sound that is
panned to L and R after passing through the oscillator and
insert effects is mixed to a monaural signal as adjusted by
the “Send 1” and “Send 2” levels, and input to the master
effects.
The master effects are mono-in stereo-out. Even when
a stereo-input type effect is selected, the input will be
monaural.
MFX1 Effect Select [000...089: name]
Select the effect type for master effect 1. You can select from
90 types of effect: 000: No Effect–089: Reverb-Gate. (Dou-
ble-size effects cannot be selected.) If 000: No Effect is
selected, the output from the master effect will be muted.
Category/MFX Select
When you press the popup button, a “Category/MFX
Select” menu will appear. Press a tab to select the desired
category of effect, and select an effect from the list. Press the
OK button to execute, or press the Cancel button to cancel.
ON/OFF (Master Effect On/Off)
Switch master effect 1 on/off. When off, the output will be
muted. This will alternate on/off each time it is pressed.
Separately from this setting, you can use CC#94 to
switch this on/off. A value of 0 will be off, and a value
of 1–127 will be the original setting. This is controlled
on the global MIDI channel “MIDI Channel” (Global
P1: 1–1a).
MFX2 Effect Select [000...089: name]
Select the effect type for master effect 2 (☞“MFX1 Effect
Select”).
ON/OFF
Switch master effect 2 on/off. Refer to the above explanation
of “ON/OFF.” MFX2 can also be turned on/off by control
change #95.
9–1b: Chain
Chain
Checked: Chain (series connection) will be turned on for
MFX1 and MFX2.
Chain Direction [MFX1→MFX2, MFX2→MFX1]
Specify the direction of the connection when MFX1 and
MFX2 are chained.
MFX1→MFX2: Connect from MFX1 to MFX2.
MFX2→MFX1: Connect from MFX2 to MFX1.
Chain Signal [LR Mix, L Only, R Only]
When chain is On, this parameter specifies how the stereo
output signal of the first master effect will be connected to
the input (mono) of the next master effect.
L/R Mix: The stereo output L/R of the first master effect will
be mixed before being input to the next master effect.
L Only, R only: Only the left or right channel of the output
will be input to the next master effect.
Chain Level [000...127]
When chain is On, this sets the level at which the sound is
sent from the first master effect to the next master effect.
9–1c: Return Level
Return 1 [000...127]
Return 2 [000...127]
Adjust the return levels from the master effects to the L/R
bus (main output L/MONO, R).
9–1d: Master EQ Gain [dB]
Set the gain for the three-band EQ located immediately
before the sound of the L/R bus is sent from the AUDIO
OUTPUT (MAIN OUT) L/MONO and R jacks. This is
linked with the various “Gain” parameters of Master EQ (9–
4).
Low [–18.0...+18.0]
Mid [–18.0...+18.0]
High [–18.0...+18.0]
The cutoff frequency for “Low,” “Mid” and “High” and the
“Q” of “Mid” can be adjusted in the Master EQ tab. These
settings are in “dB” units.

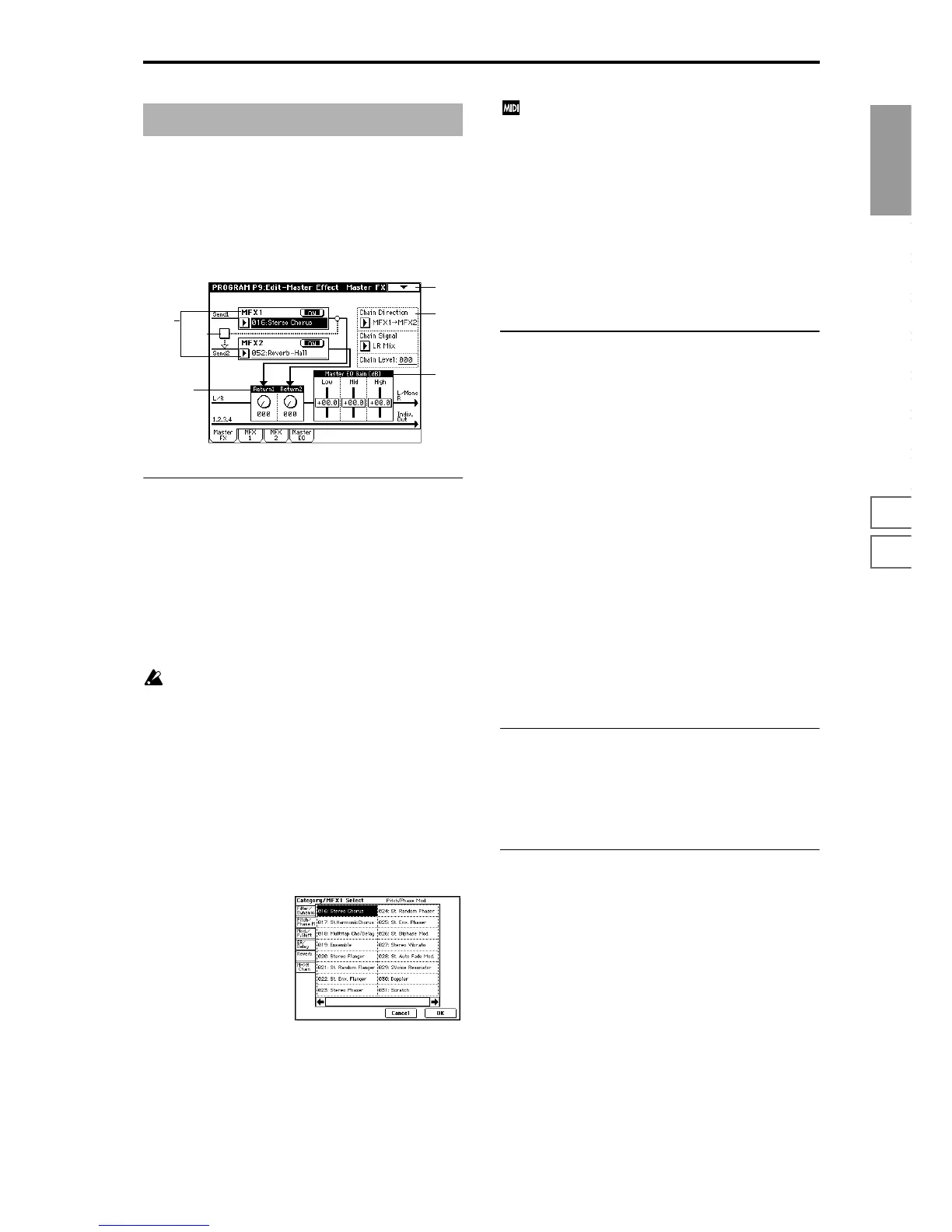

Program P9: Edit-Master Effect
9–1
9–1a
9–1b
9–1d
9–1b
9–1c
