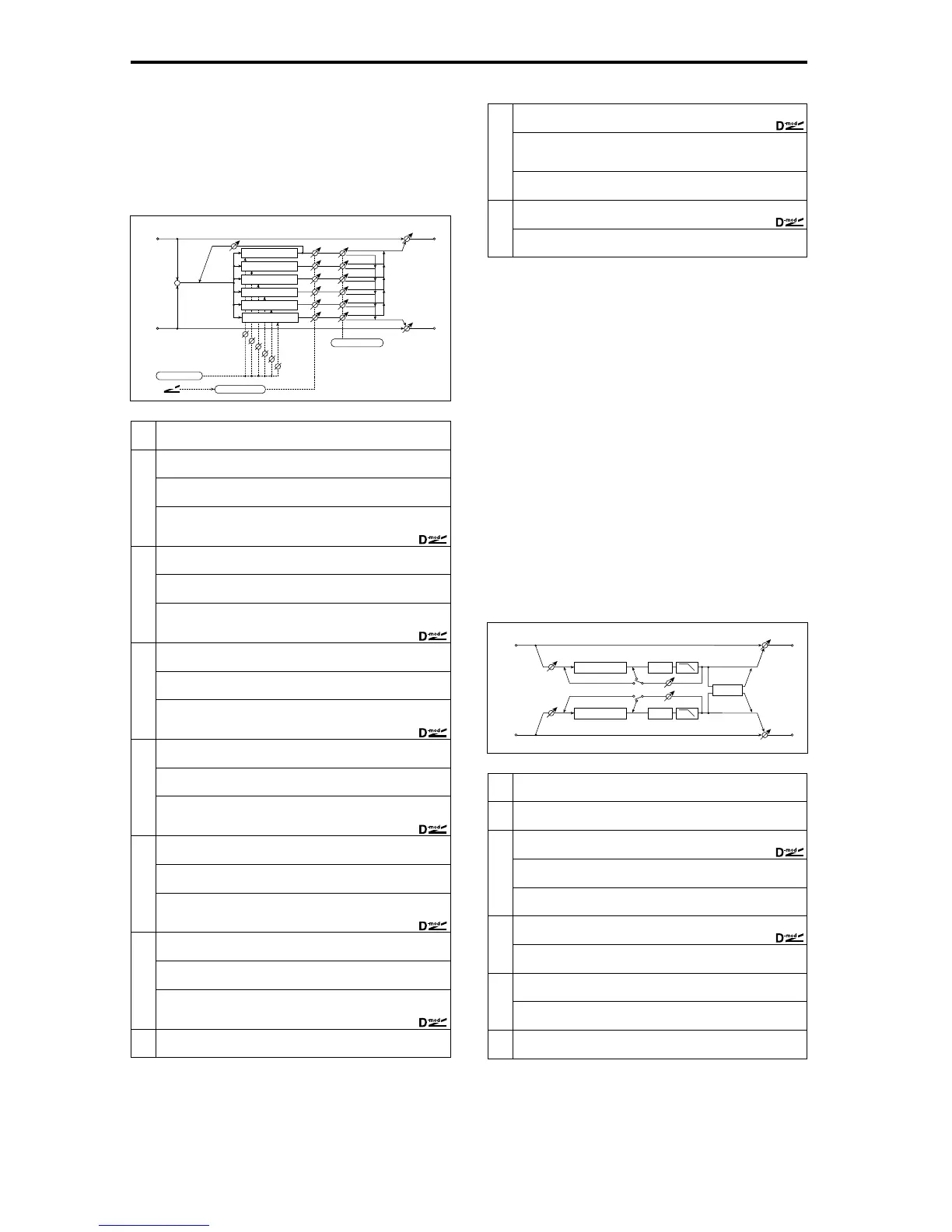

094: Multitap Cho/Delay
(Multitap Chorus/Delay)
This effect has six chorus blocks with different LFO phases.
You can produce a complex stereo image by setting a different
delay time and depth for each block. You can control the delay
output level via a modulation source.
b: Status, c: Status, d: Status, e: Status, f: Status, g: Status
These parameters set the output status of each Tap.
Always On: Output is always on. (No modulation)
Always Off: Output is always off. (No modulation)
On→Off (dm): Output level is switched from on to off depending
on the modulation source.
Off→On (dm): Output level is switched from off to on depending
on the modulation source.
Combining these parameters, you can change from 4-phase cho-
rus to two-tap delay by crossfading them gradually via the modu-
lation source during a performance.
h: Panning Preset
This parameter selects combinations of stereo images of the tap
outputs.
i: Src, i: Amt, l: Amt
Tap output level, feedback amount and effect balance are con-
trolled simultaneously via a modulation source.
095: St. Pitch Shifter (Stereo Pitch Shifter)
This is a stereo pitch shifter. The pitch shift amount for the left
and right channels can be reversed from each other.
a
LFO Frequency [Hz]
Sets the LFO speed
0.02...13.00Hz
b
Tap1(000) [msec]
Sets the Tap1 (LFO phase=0 degrees) delay time
0...570msec
Depth
Sets the Tap1 chorus depth
0...30
Status Always On, Always Off, On→Off(dm), Off→On(dm)
Selects on, off, or modulation source for the control of Tap1 output
☞,
c
Tap2(180) [msec] 0...570msec
Sets the Tap2 (LFO phase=180 degrees) delay time
Depth
Sets the Tap2 chorus depth
0...30
Status Always On, Always Off, On→Off(dm), Off→On(dm)
Selects on, off, or modulation source for the control of Tap2 output
☞,
d
Tap3(060) [msec] 0...570msec
Sets the Tap3 (LFO phase=60 degrees) delay time
Depth
Sets the Tap3 chorus depth
0...30
Status Always On, Always Off, On→Off(dm), Off→On(dm)
Selects on, off, or modulation source for the control of Tap3 output
☞,
e
Tap4(240) [msec] 0...570msec
Sets the Tap4 (LFO phase=240 degrees) delay time
Depth
Sets the Tap4 chorus depth
0...30
Status Always On, Always Off, On→Off(dm), Off→On(dm)
Selects on, off, or modulation source for the control of Tap4 output
☞,
f
Tap5(120) [msec] 0...570msec
Sets the Tap5 (LFO phase=120 degrees) delay time
Depth
Sets the Tap5 chorus depth
0...30
Status Always On, Always Off, On→Off(dm), Off→On(dm)
Selects on, off, or modulation source for the control of Tap5 output
☞,
g
Tap6(300) [msec] 0...570msec
Sets the Tap6 (LFO phase=300 degrees) delay time
Depth
Sets the Tap6 chorus depth
0...30
Status Always On, Always Off, On→Off(dm), Off→On(dm)
Selects on, off, or modulation source for the control of Tap6 output
☞,
h
Panning Preset
Specifies the stereo image of each Tap
1, 2, 3, 4
☞
Left
Right
Feedback
Wet / Dry
Wet / Dry
Wet: Mono In - Stereo Out / Dry: Stereo In -Stereo Out
+
LFO: Triangle
0 [degree]
180 [degree]
60 [degree]
240 [degree]
120 [degree]
300 [degree]
Tap1 Delay
Tap2 Delay
Tap3 Delay
Tap5 Delay
Tap6 Delay
Tap4 Delay
D
-mod
On/Off Control
Panning Preset
i
Tap1 Feedback
Sets the Tap1 feedback amount
–100...+100
Src Off...Tempo
Selects the modulation source for the Tap output level, feedback
amount, and effect balance
☞
Amt –100...+100
Sets the modulation amount of Tap1 feedback amount
☞
j
Wet/Dry Dry, 1:99...99:1, Wet
Sets the balance between the effect and dry sounds
Amt
Sets the modulation amount of the effect balance
–100...+100
☞
a
Mode Slow, Medium, Fast
Switches Pitch Shifter mode
☞ Fx:038
b
L/R Pitch Normal, Up/Down
Determines whether or not the L/R pitch shift amount is inverted
☞
c
Pitch Shift [1/2tone] –24...+24
Sets the pitch shift amount in steps of a semitone
☞ Fx:038,
Src Off...Tempo
Selects the modulation source of pitch shift amount
☞ Fx:038
Amt
Sets the modulation amount of pitch shift amount
–24...+24
☞ Fx:038
d
Fine [cent] –100...+100cent
Sets the pitch shift amount in steps of one cent
☞ Fx:038,
Amt
Sets the modulation amount of pitch shift amount
–100...+100cent
☞ Fx:038
e
Lch Delay [msec]
Sets the delay time for the left channel
0...1000msec
Rch Delay [msec]
Sets the delay time for the right channel
0...1000msec
f
Feedback Position
Switches the feedback connection
Pre, Post
☞ Fx:038
Left
Right
Feedback
Spread
Wet / Dry
Wet / Dry
Stereo In - Stereo Out
High Damp
High Damp
Input Level
Input Level
Feedback Position
Pre
Pre
Post
Post
Delay
Pitch Shifter
Delay
Pitch Shifter
