Effect
207

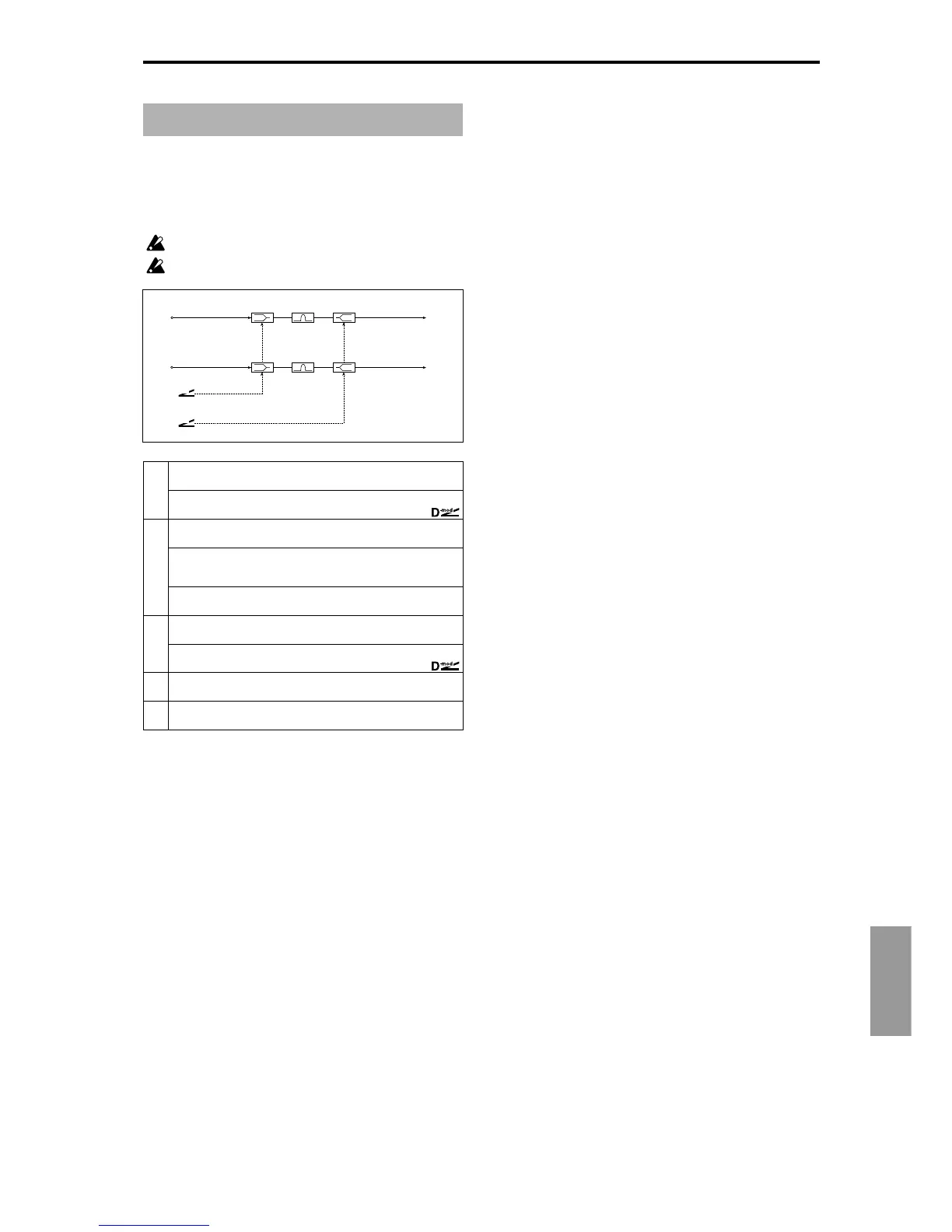

Master EQ
Use P9: Master EQ in Program, Combination, Sequencer, and
Song Play modes.
You cannot use the Master EQ in Sampling mode.
You cannot use the Master EQ for the Insert Effects or Mas-
ter Effects.
a: Gain[dB], b: Gain[dB], c: Gain[dB]
These parameters are linked with the “Master EQ Gain [dB]” (9–
1d) parameter of the Master FX tab.
d: Low Gain Mod-Src
For example, when this parameter is set to KnobM1: #17, you can
control the EQ gain in the range from –18dB to +18dB during per-
formance using the [Realtime Control] knob. At this time, set
Knob 1-B to Knob Mod1 (CC#17) for Realtime Control Knob B-
Assign (Program P1: 1–4b, Combination P4: 4–3b, Sequencer P4:
4–7b, Song Play P2: 2–1b). The 12 o’clock position of the knob cor-
responds to the “Low Gain” value here.
e: High Gain Mod-Src
For example, when this parameter is set to KnobM2: #19, you can
control the EQ gain in the range from –18dB to +18dB during per-
formance using the [Realtime Control] knob. At this time, set
Knob 2-B to Knob Mod2 (CC#19) for Realtime Control Knob B-
Assign (Program P1: 1–4b, Combination P4: 4–3b, Sequencer P4:
4–7b, Song Play P2: 2–1b). The 12 o’clock position of the knob cor-
responds to the High Gain value here.
Master EQ
a
Low Cutoff [Hz] 20...1.00K
Sets the cutoff frequency of Low EQ (shelving type)
Gain[dB] –18.0...+18.0 (0.5step)
Sets the gain of Low EQ
b
Mid Cutoff [Hz] 300...10.00K
Sets the cutoff frequency of Mid EQ (peaking type)
Q 0.5...10.0 (0.1step)
Sets the band width of Mid EQ. With a higher value, the band
become narrower.
Gain [dB] –18.0...+18.0 (0.5step)
Sets the gain of Mid EQ
c
High Cutoff [Hz] 500...20.00K
Sets the cutoff frequency of High EQ (shelving type)
Gain [dB] –18.0...+18.0 (0.5step)
Sets the gain of High EQ
d
Low Gain Mod-Src
Selects the modulation source for Low Gain
Off...Tempo
e
High Gain Mod-Src
Selects the modulation source for High Gain
Off...Tempo
Left
Right
Low Mid High
D
-mod
D
-mod
LEQ
Low Gain Mod.
Low Gain Mod - Src
High Gain Mod - Src
High Gain Mod.
PEQ HEQ
LEQ PEQ HEQ
L/Mono
R
