18
Ramp High [–99…+99]
With positive (+) values of this parameter, the volume will
increase as you play notes above the “Key High” note num-
ber. With negative (–) values, the volume will decrease.

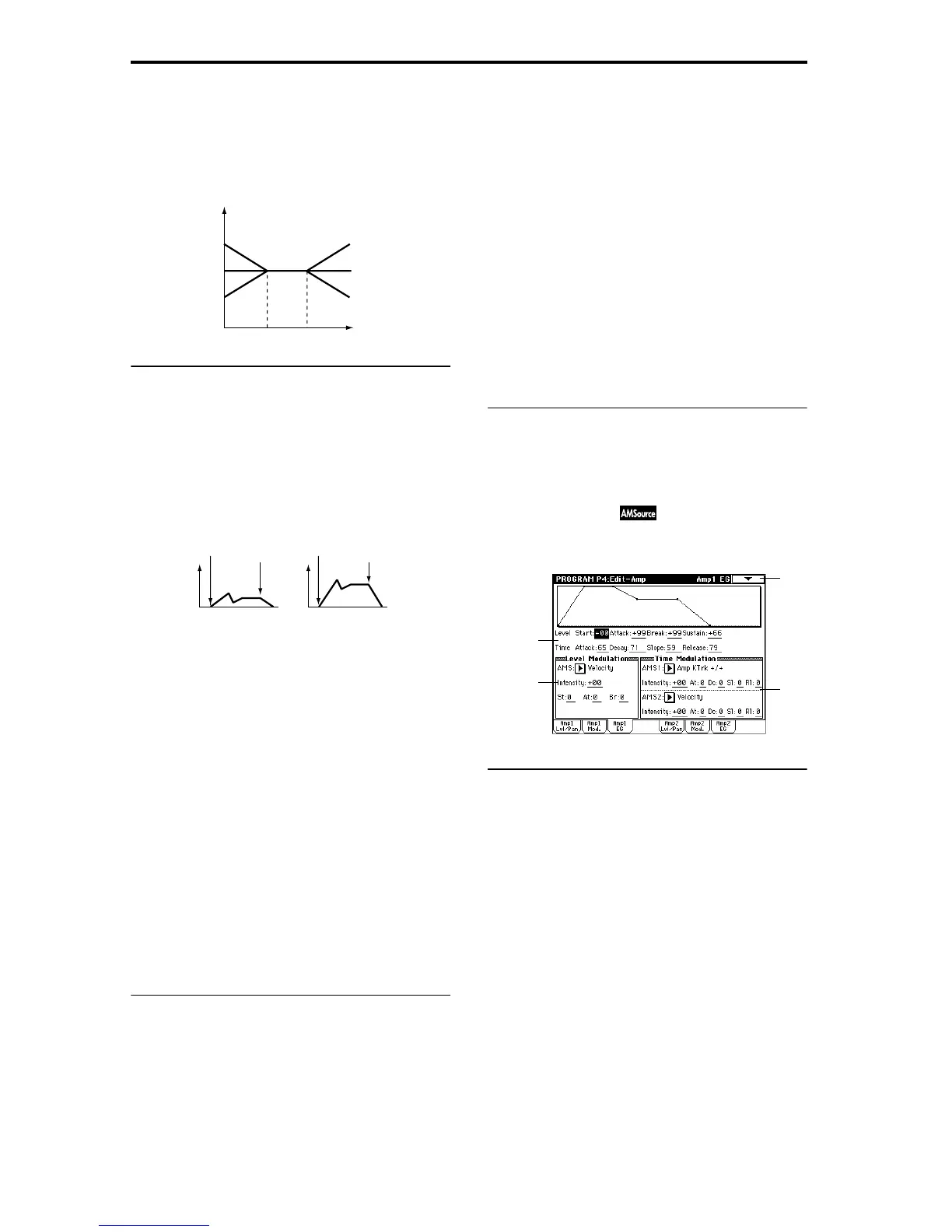

Volume change produced by keyboard location and Ramp settings
4–2b: Amp Modulation (Amplifier Modulation)
These parameters specify how the volume of oscillator 1 will
be affected by velocity.
Velocity Intensity [–99…+99]
With positive (+) values, the volume will increase as you
play more strongly.
With negative (–) values, the volume will decrease as you
play more strongly.
AMS (Alternate Modulation Source)
[Off, (PEG, FEG, EXT)]
Select the source that will control the volume of amp 1
(
☞p.210 “AMS (Alternate Modulation Source) List”) (EXT)
Velocity cannot be selected.
Intensity [–99…+99]
Specify the depth and direction of the effect that “AMS” will
have.
The actual volume will be determined by multiplying the
value of the changes produced by the amp EG with the val-
ues of Alternate Modulation etc., and if the levels of the amp
EG are low, the modulation applied by Alternate Modula-
tion will also be less.
For example if “AMS” is set to After Touch, positive (+) val-
ues of this parameter will cause the volume to increase
when pressure is applied to the keyboard. However if the
EG settings etc. have already raised the volume to its maxi-
mum level, the volume cannot be increased further.
With negative (–) values of this parameter, the volume will
decrease when pressure is applied to the keyboard.
4–2c: LFO 1/2
These parameters let you use “OSC1 LFO1” (5–1) and
“OSC1 LFO 2” (5–2) to control the oscillator 1 volume.
LFO1 Intensity [–99…+99]
Specify the depth and direction of the effect that “OSC1
LFO1” will have on the volume of oscillator 1. Negative (–)
values will invert the LFO waveform.
AMS (Alternate Modulation Source)
[Off, (PEG, FEG, AEG, KT, EXT)]
Select a source that will control the depth by which “OSC1
LFO1” will modulate the volume of oscillator 1 (
☞p.210
“AMS (Alternate Modulation Source) List”).
Intensity [–99…+99]
As the absolute value of this setting is increased, the effect of
“AMS” on “OSC1 LFO1” will increase. Negative (–) values
will invert the LFO waveform.
LFO2 Intensity [–99…+99]
AMS (Alternate Modulation Source)
[Off, (PEG, FEG, AEG, KT, EXT)]
Intensity [–99…+99]
Specify the depth and direction of the effect that “OSC1 LFO
2” will have on the volume of oscillator 1. Refer to the pre-
ceding sections “LFO1 Intensity”–“Intensity.”
▼ 4–2: Page Menu Command
☞ “0–1A: Write Program,” “1–1A: Copy Oscillator,” and “1–
1B: Swap Oscillator.”
4–3: Amp1 EG
These parameters let you create time-varying changes in the
volume of oscillator 1.
4–3a: Amp1 EG (Amplifier1 EG)
These parameters specify how the amp 1 EG will change
over time.
Level:
Start (Start Level) [00…99]
Specify the volume level at note-on.
If you want the note to begin at a loud level, set this to a high
value.
Attack (Attack Level) [00…99]
Specify the volume level that will be reached after the attack
time has elapsed.
Break (Break Point Level) [00…99]
Specify the volume level that will be reached after the decay
time has elapsed.
Sustain (Sustain Level) [00…99]
Specify the volume level that will be maintained from after
the slope time has elapsed until note-off occurs.
Volume
Key
Ramp Low=+99
Ramp Low=0
Ramp Low=–99
Ramp High=+99
Ramp High=0
Ramp High=–99
Key Low
Key High
Volume change (with positive (+) values of this parameter)
Softly played
Strongly played
Note-on
Note-off
Note-on
Note-off
4–3
4–3a
4–3c
4–3b
