▼ 7–4: Page Menu Command
☞ “0–1A: Write Combination” and “7–1A: Copy Arpeggia-
tor”
Here you can make insertion effect settings. You can also
specify the bus routing for the program used by each timbre
1–8.
☞ For details on insertion effects, refer to p.146 “8. Effect
Guide.”
8–1: Routing
Specify the bus to which the program used by each timbre
1–8 will be sent. Here you can also set the send levels to the
master effects.
8–1a: Routing Map
This shows the status of the insert effects. For each insert
effect, this indicates the routing, the name of the selected
effect, the on/off status, and chain status. The effect type,
on/off status and chain status can be modified in the Insert
FX tab (8–2).
8–1b: IFX/Indiv.Out BUS Select (BUS Select),Send1
(MFX1), Send2 (MFX2)
IFX/Indiv.Out BUS Select(BUS Select)
[DKit, L/R, IFX1...5, 1...4,1/2, 3/4, Off]
For each timbre 1–8, these parameters specify the bus to
which the program oscillator(s) will be sent. The current set-
tings can also be viewed in the “Routing Map.”
DKit: This can be selected only if the program for which set-
tings are being made is a drum program (“OSC Mode” =
Drums). With a setting of DKit, the “BUS Select” (Global P5:
5–2b) setting made for each key of the drum kit will be used.
For example if the “BUS Select” settings of the drum kit
have assigned Snare sounds to IFX1 and Kick sounds to
IFX2, setting this parameter to DKit will send the Snare
sounds to IFX1 and Kick sounds to IFX2. If you wish to
modify these routings, use the page menu command “Drum
Kit IFX Patch” (8–1C).
If this is set to 1/2 or 3/4, the programs of timbres 1–8
will be sent in stereo from AUDIO OUTPUT (INDIVID-
UAL) 1/2 or 3/4. If the pan of the program oscillator is
controlled by MIDI control change #10 (pan) or AMS
(Alternate Modulation Source), the sound will be out-
put with the pan setting that is in effect at the moment
of note-on. Unlike the case when this parameter is set to
L/R to output the sound from (MAIN) L/MONO and
R, the pan of a sounding note will not change in real-
time.
If you wish to move the pan of a sounding note in real-

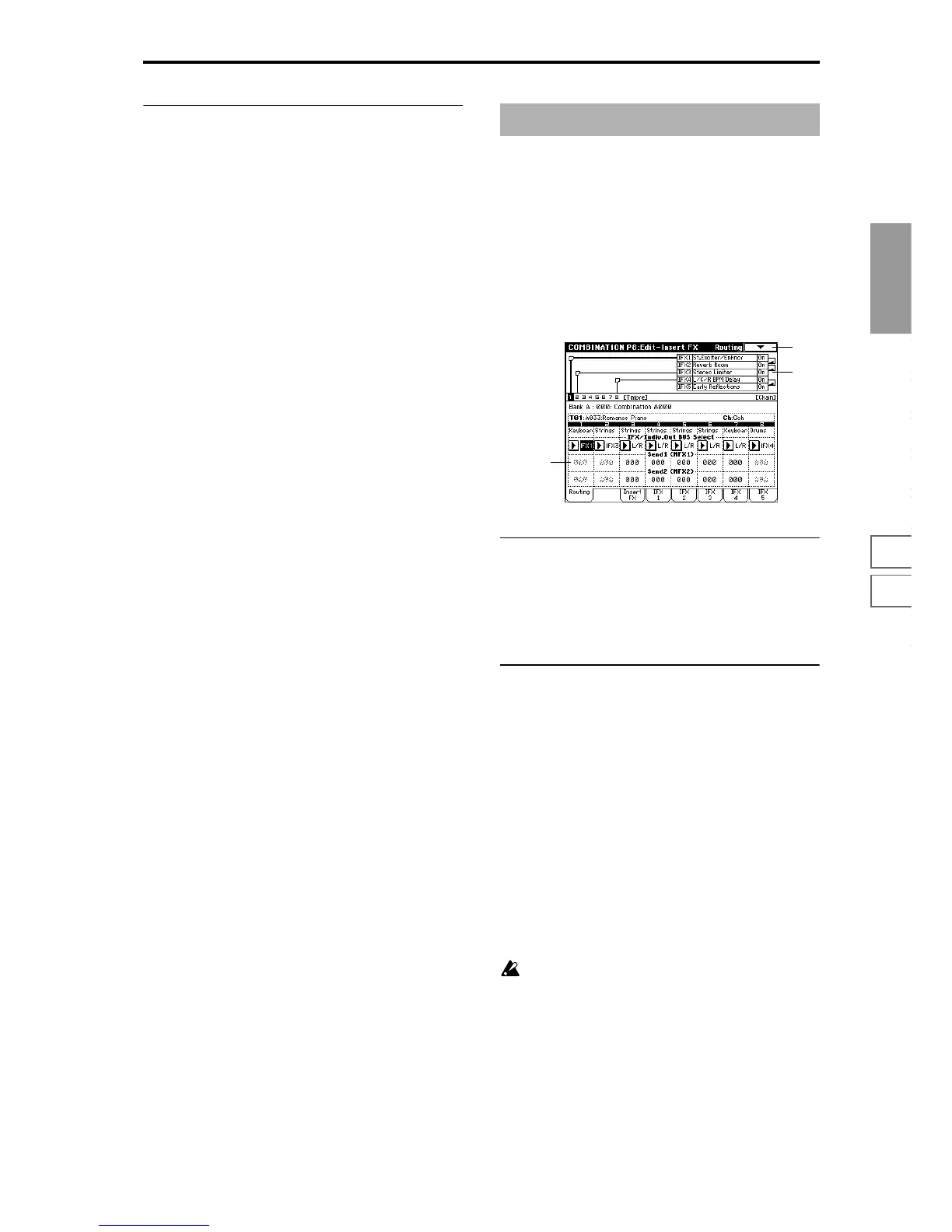

Combination P8: Edit-Insert FX
8–1
8–1b
8–1a
To Next Page
