42
time and output it from AUDIO OUTPUT (INDIVID-
UAL) 1/2 or 3/4, you must set “BUS Select” to IFX1 (or
IFX2–IFX5), select 000: No Effect for “IFX1” (or IFX2–
IFX5) (8–2), and for the sound that has passed through
the IFX, set “BUS Select” (8–2) to either 1/2 or 3/4.
Send1 (MFX1) [000...127]
Send2 (MFX2) [000...127]
For each timbre 1–8, these parameters set the send level to
master effects 1 and 2. These settings are valid when “BUS
Select” is set to L/R or Off. When IFX 1, 2, 3, 4 or 5 are
selected, the send levels to master effects 1 and 2 are set by
the “Send 1” and “Send 2” parameters of the Insert FX tab,
after the sound has passed through IFX1–5.
If “BUS Select” is set to 1, 2, 3, 4, 1/2, or 3/4, these settings are
ignored.
Control change #93 can be used to control the Send 1
level, and #91 to control the Send 2, and modify their
respective settings. These messages will be received on
the MIDI channel specified for each timbre in the P2:
MIDI Channel tab.
The actual send levels are determined by multiplying
this value with the send level “Send 1” and “Send 2”
(Program P8: 8–1d) for each oscillator of the program
selected for the timbre.

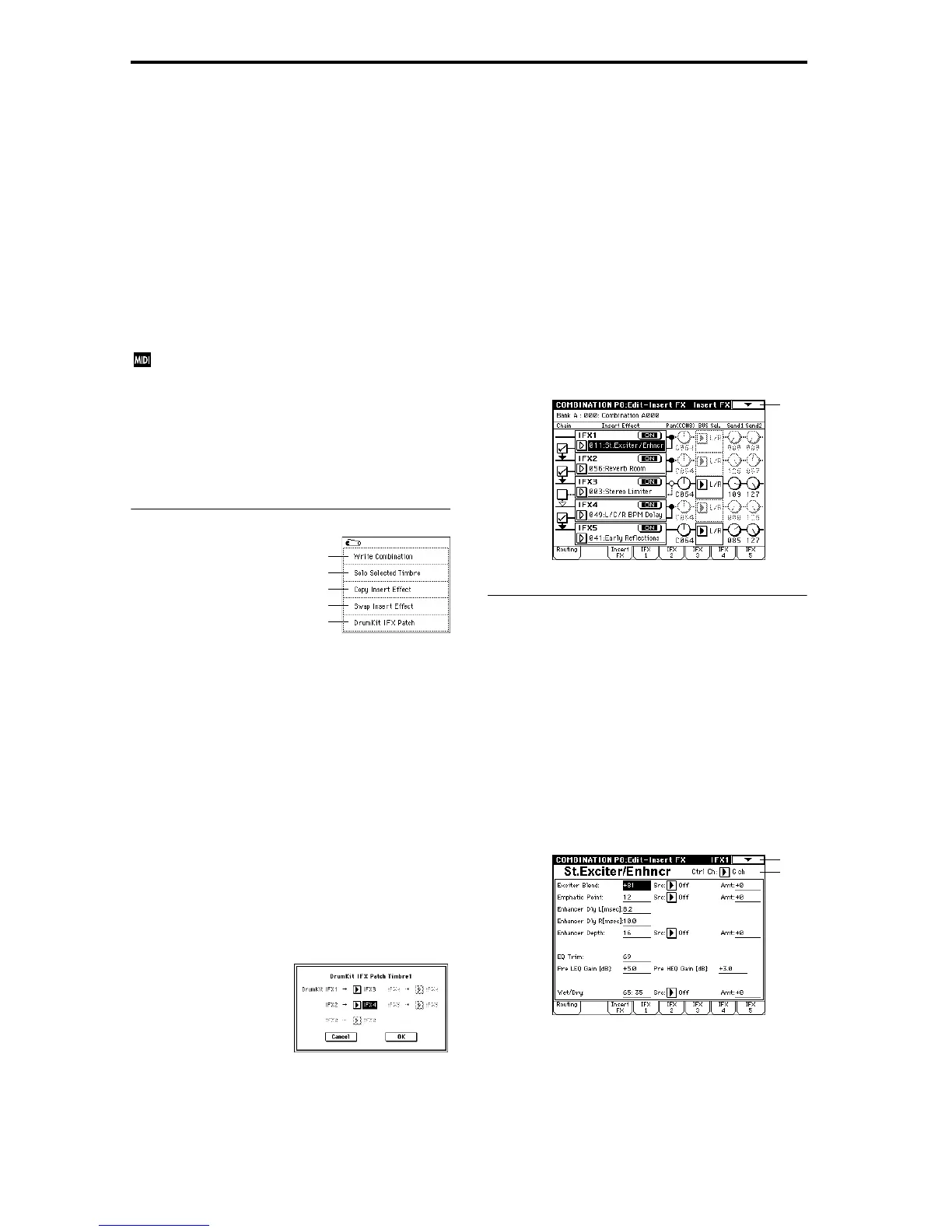

▼ 8–1: Page Menu Command
8–1A: Copy Insert Effect
☞ “Program P8: 8–1A: Copy Insert Effect.”
However, the MIDI control channel specified for “Ctrl Ch”
of the IFX1–5 tabs will not be copied.
8–1B: Swap Insert Effect
☞ “Program P8: 8–1B: Swap Insert Effect.”
However, the MIDI control channel specified for “Ctrl Ch”
of the IFX1–5 tabs will not be copied.
8–1C: DrumKit IFX Patch
This command applies a patch to the “BUS Select” settings
of each key of the drum kit, allowing you to temporarily
change the connections to the insert effects. This command
is available only if a drum program has been selected for the
timbre and the “BUS Select” (8–1b) parameter is set to Dkit.
Furthermore, this command can be executed only if the
“BUS Select” (Global P5: 5–2b) for the individual keys of
that drum kit are set to IFX1–5.
1 Select this command to open the following dialog box.
2 In the Drum Kit “IFX” popup, select the insert effect to
which you want to patch.
3 To execute the Drum Kit Insert Effect Patch command,
press the OK button. To cancel, press the Cancel button.
To restore the condition of the drum kit, execute
IFX1→IFX1, IFX2→IFX2, IFX3→IFX3, IFX4→IFX4, and
IFX5→IFX5.
8–2: Insert Fx
Here you can select the type of each insert effect, turn it on/
off, and make chain settings etc.
These parameters are the same as in Program mode (
☞Pro-
gram mode “8–2: Insert Fx”).
However, unlike the case in Program mode, “Pan (CC#8),”
“Send 1 (MFX1)” and “Send 2 (MFX2)” will be controlled on
the MIDI channels that are set in the IFX1–5 tabs. The control
changes used are the same as in Program mode.
▼ 8–2: Page Menu Command
☞ “0–1A: Write Combination,” “8–1A: Copy Insert Effect,”
and “8–1B: Swap Insert Effect.”
8–3: IFX 1
8–4: IFX 2
8–5: IFX 3
8–6: IFX 4
8–7: IFX 5
These are the parameters for IFX1, 2, 3, 4, and 5 that were
selected in the Insert FX tab (
☞p.155).
0–1A
0–1B
8–1A
8–1B
8–1C
8–2
0–1A
8–3a
To Next Page
