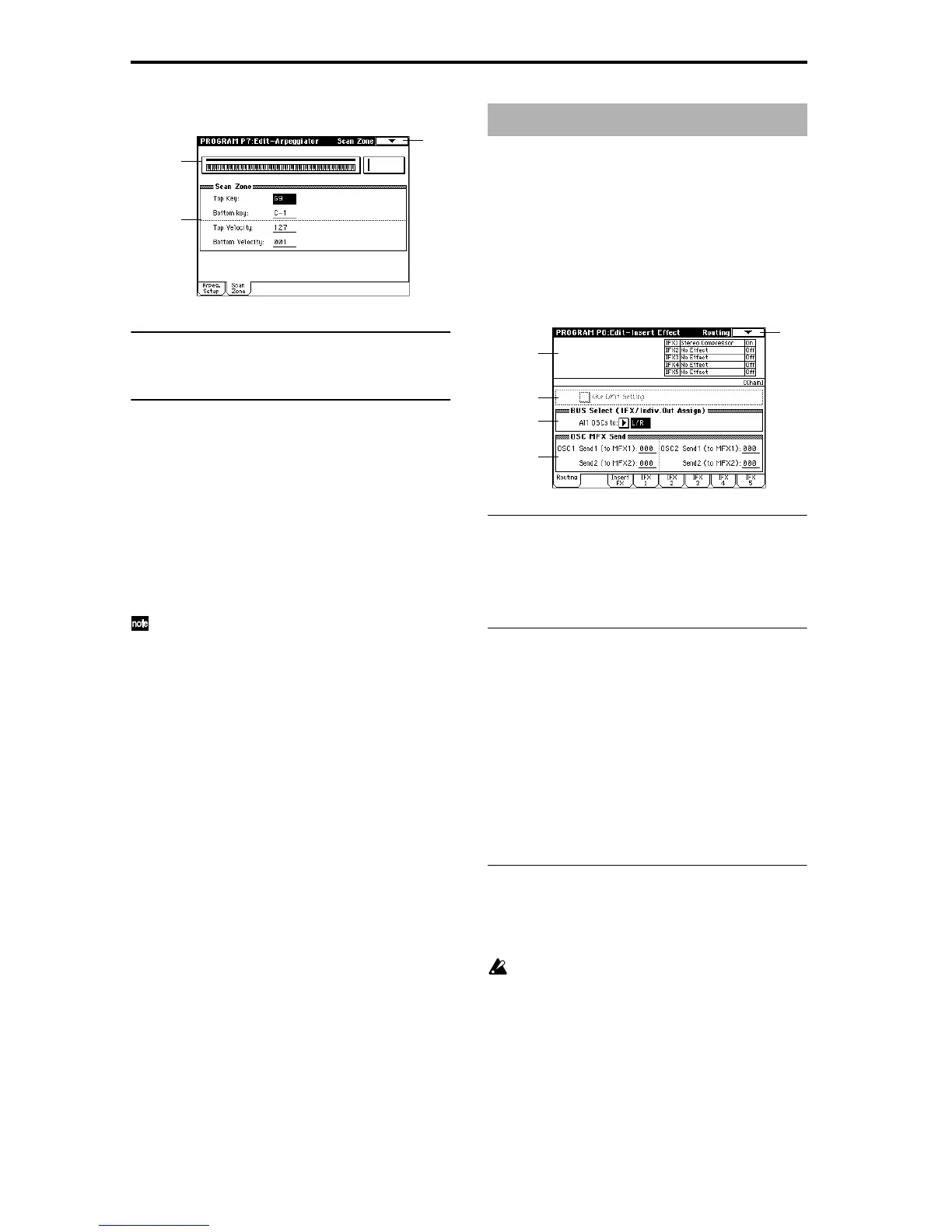

7–2: Scan Zone
7–2a: Zone Map
This shows the “Scan Zone” setting.
7–2b: Scan Zone
Top Key [C–1...G9]
Bottom Key [C–1...G9]
These parameters specify the range of notes (keys) for which
the arpeggiator will function. “Top Key” is the upper limit,
and “Bottom Key” is the lower limit.
Top Velocity [001...127]
Bottom Velocity [001...127]
Specify the range of velocities for which the arpeggiator will
function. “Top Velocity” is the upper limit, and “Bottom
Velocity” is the lower limit.
Note number and velocity can also be input by holding
down the [ENTER] key and playing a note on the key-
board.
☞ For details on insertion effects, refer to p.146 “8. Effect
Guide.”
8–1: Routing
These settings specify the bus on which the output of the
oscillator will be sent, and adjust the send levels to the mas-
ter effects.
The following diagram shows the LCD screen when “Oscil-
lator Mode” (1–1a) is set to Single or Double.
8–1a: Routing Map
This shows the status of the insert effects. The insert effect
routing, effect name, on/off status, and chain is shown. The
types of insert effect, on/off, and chain settings are made in
the Insert FX tab (8–2).
8–1b: Use DKit Setting
This will be available when “Oscillator Mode” (1–1a) is set
to Drums.
Checked: The “BUS Select” (Global P5: 5–2a) setting for
each key of the selected drum kit will be used. Check this
when you want to apply an insert effect to an individual
drum instrument, or to output an individual drum instru-
ment to one of the AUDIO OUTPUT (INDIVIDUAL) jacks.
If the “Oscillator Mode” is Single or Double, this setting has
no effect.
Unchecked: The setting of the “BUS Select” (8–1c) parame-
ter described below will be used. All drum instruments will
be sent to the specified bus.
8–1c: BUS Select (IFX/Indiv.Out Assign)
All OSCs to (BUS Select)
[L/R, IFX1...5, 1...4, 1/2, 3/4, Off]
Specify the bus to which oscillators 1 and 2 will be sent.
If this is set to 1/2 or 3/4, the oscillator pan settings (4–
1b, 4–4) will be used to output the sound in stereo from
AUDIO OUTPUT (INDIVIDUAL) 1/2 or 3/4. When
the oscillator pan is controlled by CC#10 (pan) or AMS
(Alternate Modulation Source), the sound will be out-
put with the pan setting that is in effect at note-on.
Unlike the case when this is set to L/R to output the
sound from (MAIN) L/MONO and R, the pan of a
sounding note will not change in realtime.
If you wish to adjust the pan in realtime during a note
and output the sound from AUDIO OUTPUT (INDI-
VIDUAL) 1/2 or 3/4, set “BUS Select” to IFX1 (or IFX2–
