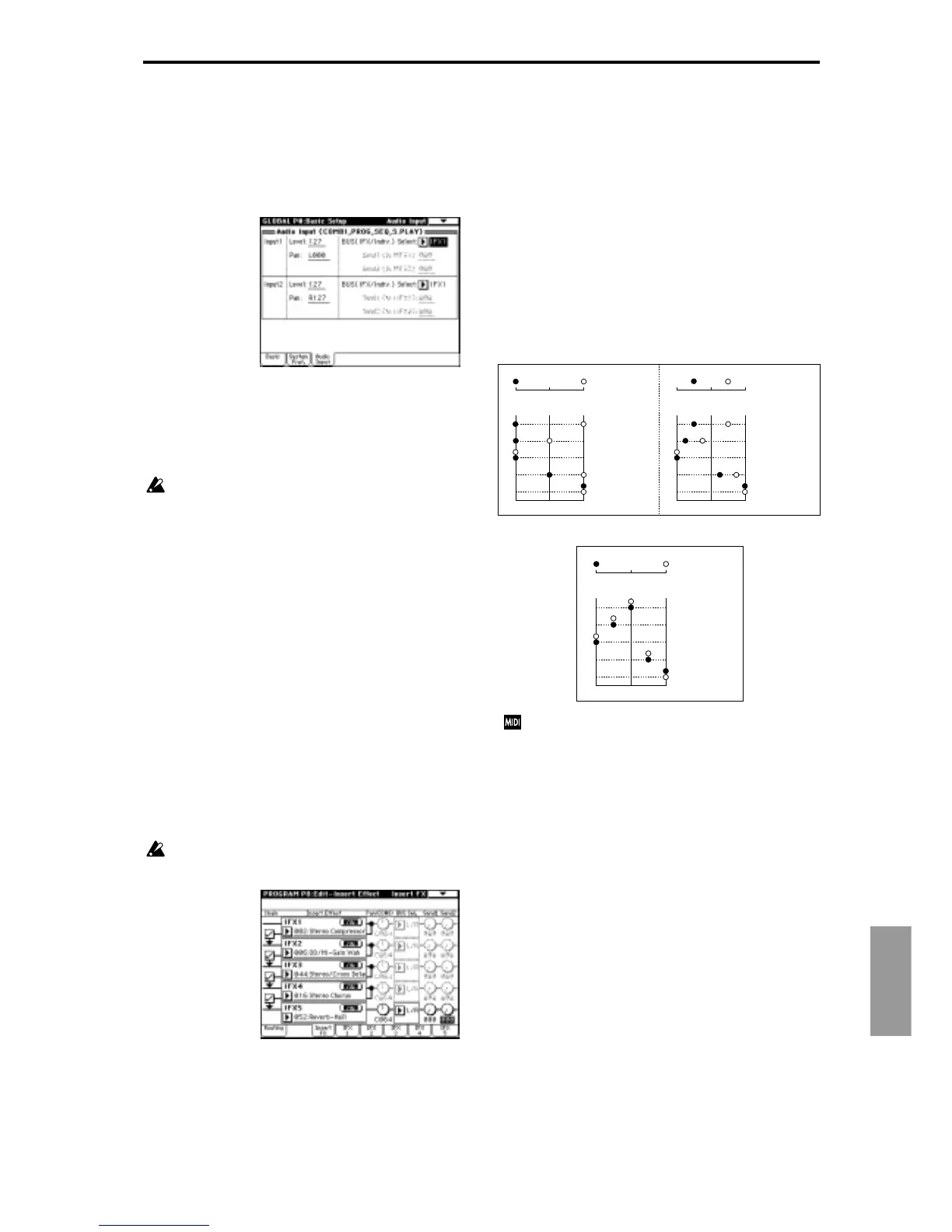

Effect
149
2–4. Audio Input
In Program, Combination, Sequencer, and Song Play modes,
you can apply the Insert Effects, Master Effects and Master
EQ to the signals input from AUDIO INPUTs 1 and 2. These
signals are routed to the TRITON’s effects, according to the
“Audio Input (COMBI, PROG, SEQ, S.PLAY)” (Global P0:0–
3a) setting.
Use “BUS Select” (Global P0: 0–3a) to set Inputs 1/2 buses
by selecting from L/R, IFX1–5, 1–4, 1/2, 3/4, and Off.
“Send1 (to MFX1)” and “Send2 (to MFX2)” become effective
only when “BUS Select” (Global P0: 0–3a) is set to L/R or
Off. If IFX1–5 is selected, use “Send1” and “Send2” for the
post-IFX signal (
☞“3. Mixer”).
This setting is ignored in Sampling mode. Refer to “2–3.
Sampling Mode” for information on the Sampling
mode settings.
Use “P8: Insert Effect” in Program, Combination, Song, or
Song Play mode to set up the Insert Effects. You can apply 2-
in/6-out effects to the incoming signal from Inputs 1 and 2.
You may also combine these signals with the internal sound.
For example, in Program mode or Combination mode, you
can route the incoming signal from AUDIO INPUTs 1 and 2
and the oscillator sound to “Insert Effect 093: Vocoder” in
order to set up a vocoder effect in which the internal sound
is controlled by the mic inputs (
☞p.201 “093: Vocoder”).
3. Mixer
Use “Pan (CC#8),” “BUS Select,” “Send1,” and “Send2” of
the P8: “Insert FX” tab for the post-IFX signal in all modes to
set the pan/bus and the send level to the Master Effects
MFX1 and MFX2. If you have checked the “Chain” box to
connect the Insert Effects in series, these parameters for the
post-IFX (last Insert Effect in the chain) signal become effec-
tive.
You cannot use the Master Effects or route signals to
INDIVIDUAL 1, 2, 3, and 4. You can set only the pan
setting for the post-IFX signals.
3–1. Pan (CC#8)
This parameter enables you to set the pan of the post-IFX
signal.
If you are using the stereo-in/stereo-out Insert Effects
(
☞“In/Out”), set this parameter to “C064” to enable the
“Pan” settings for the oscillators (Program P4: 4–1b, 4–4),
timbres (Combination P0: 0–2b, P1: 1–1c), tracks (Sequencer
P0: 0–3b, 0–4b, Song Play P0: 0–3b, 0–4b), and audio inputs
(Sampling P0: 0–2a, Global P0: 0–3a).
If you are using mono-in/stereo–out or mono-in/mono–out
Insert Effects (
☞“In/Out”), the “Pan” settings for the oscilla-
tors, timbres, tracks and audio inputs are ignored, and they
are set to Center. Use the “Pan (CC#8)” parameter (P8:
“Insert FX” tab) to set the pan. “L000” is hard left, and
“R127” is hard right.
You can control these parameters via MIDI Control
Change CC#8.
3–2. BUS Sel. (BUS Select)
This parameter enables you to specify the destination bus
for the post-IFX signals. “L/R” is a common setting to send
signals to the Master EQ before they are routed to the OUT-
PUT (MAIN) L/MONO and R outputs.
Select 1, 2, 3, 4, 1/2, or 3/4 to route the signals to OUTPUT
(INDIVIDUAL) 1, 2, 3, or 4 (
☞“Individual Output”). Select
“Off” so that no signals will be output to L/MONO, R, 1, 2,
3, or 4. In this case, the signals are routed from the Master
Effects to AUDIO OUTPUT (MAIN). This setting is used
when you are connecting the Insert Effects with the Master
Effects in series using “Send1” and Send2.”
3–3. Send1, Send2
These parameters enable you to set the send level of the sig-
nals routed to Master Effects MFX1 and MFX2. These set-
tings are effective only when “BUS Select” is set to L/R or
Off.
If you are not using any Insert Effects, use “Send1” and
“Send2” of the P8: “Routing” tab in Program, Combination,
Sequencer, and Song play modes to set the Master Effect
send level (Use the Global P0: Audio Input tab to set the
send level for the audio inputs.).
OSC1: Amp1 Pan=L000
OSC2: Amp2 Pan=R127
Left
Center
Right
Post IFX Pan(CC#8)
C064
Left
Center
Right
L032
L000
R096
R127
Insert Effect = Stereo In - Stereo Out
Left
Center
Right
Left
Center
Right
OSC1
OSC2
OSC1: Amp1 Pan=L032
OSC2: Amp2 Pan=R096
Post IFX Pan(CC#8)
C064
L032
L000
R096
R127
OSC1: Amp1 Pan=L000
OSC2: Amp2 Pan=R127
Left
Center
Right
Post IFX Pan(CC#8)
C064
Left
Center
Right
L032
L000
R096
R127
Insert Effect = Mono In - Stereo Out
OSC1
OSC2
Mono In - Mono Out
