Flt KTrk +/+ (Filter Keyboard Track +/+)
Flt KTrk +/– (Filter Keyboard Track +/–)
Flt KTrk 0/+ (Filter Keyboard Track 0/+)
Flt KTrk +/0 (Filter Keyboard Track +/0)
Amp KTrk +/+ (Amp Keyboard Track +/+)
Amp KTrk +/– (Amp Keyboard Track +/–)
Amp KTrk 0/+ (Amp Keyboard Track 0/+)
Amp KTrk +/0 (Amp Keyboard Track +/0)
+/+: The direction of the effect will be determined by the
sign (positive or negative) of the “Ramp Low” or “Ramp
High” setting.
+/–: The direction of the effect will be determined by the sign
of the “Ramp Low” setting, and by the opposite sign of the
“Ramp High” setting (–50 for a setting of +50, and +50 for a
setting of –50).
0/+: “Ramp Low” will have no AMS effect. The sign of the
“Ramp High” setting will determine the direction of its
effect.
+/0: The sign of the “Ramp Low” setting will determine the
direction of its effect. “Ramp High” will have no AMS effect.
JS +Y & AT/2 (Joy Stick +Y & After Touch/2)
The effect will be controlled by the joystick +Y (vertically
upward) and by after touch. In this case, the effect of after
touch will be only half of the specified intensity.
JS –Y & AT/2 (Joy Stick –Y & After Touch/2)
The effect will be controlled by the joystick –Y (vertically
downward) and by after touch. In this case, the effect of after
touch will be only half of the specified intensity.
Pedal:CC#04 (Foot Pedal: CC#04)
If you wish to use the assignable foot pedal as an AMS, set
“Foot Pedal Assign” (Global P2: Controller 2–1a) to Foot
Pedal (CC#04) (
☞“Foot Pedal Assign”).
A foot controller etc. connected to the ASSIGNABLE PEDAL
jack will control the effect.
Slider:CC#18 (Value Slider: CC#18)
When the “Program No.: name” or “Combination No.:
name” edit cell is selected in Program mode or Combination
mode, the [VALUE] slider will function as a controller corre-
sponding to CC#18.
KnobMod1:#17 (Knob Mod1: CC#17)
KnobMod2:#19 (Knob Mod2: CC#19)
KnobMod3:#20 (Knob Mod3: CC#20)
KnobMod4:#21 (Knob Mod4: CC#21)
If you wish to use a REALTIME CONTROLS knob [1]–[4] as
an AMS, make settings in Program, Combination, Song, or
Song Play modes to set the Controller tab parameter “Real-
time Control Knobs B-Assign” to the following settings
respectively: “Knob1-B” to KnobMod1 (CC#17), “Knob2-B”
to KnobMod2 (CC#19), “Knob3–B” to KnobMod3 (CC#20),
or “Knob4-B” to KnobMod4 (CC#21). (
☞“Knob1...4-B
Assign”)
When you set REALTIME CONTROLS to B-mode and oper-
ate knobs [1]–[4], the specified modulation will apply.
If AMS intensity is set to a positive (+) value, moving the
knob to the 12 o’clock position will produce an AMS effect of
0. Rotating the knob toward the right will produce a positive
change in the effect, and rotating it toward the left will pro-
duce a negative change. (With negative (–) settings, the
opposite effect will result.)
KnobMod1 [+] (Knob Mod1: CC#17 [+])
KnobMod2 [+] (Knob Mod2: CC#19 [+])
KnobMod3 [+] (Knob Mod3: CC#20 [+])
KnobMod4 [+] (Knob Mod4: CC#21 [+])
These differ from KnobMod1:#17–KnobMod4:#21 in the
knob position and direction of the effect. If AMS intensity is
set to a positive (+) value, rotating the knob to the far right
will produce an AMS effect of 0. Rotating the knob toward
the right will apply an effect only in the positive direction.
(With negative (–) settings, the opposite effect will result.)
SW 1:CC#80 (SW1 Mod.: CC#80)
SW 2:CC#81 (SW2 Mod.: CC#81)
If you wish to use the [SW1] or [SW2] key as an AMS, make
settings in Program, Song, or Song Play modes to set the
Controller tab parameter “Panel Switch Assign” to the fol-
lowing values respectively: “SW1” to SW1 Mod1 (CC#80),
or “SW2” to SW2 Mod2 (CC#81) (
☞“SW1/2 Assign”).
The effect will be controlled when you operate the [SW1] or
[SW2] key.
Foot SW:#82 (Foot Switch: CC#82)
If you wish to use an assignable foot switch as an AMS, set
“Foot Switch Assign” (Global P2: Controller 2–1a) to Foot
SW (CC#82) (
☞“Foot Switch Assign”).
The effect will be controlled when you operate a foot switch
etc. connected to the ASSIGNABLE SWITCH jack.

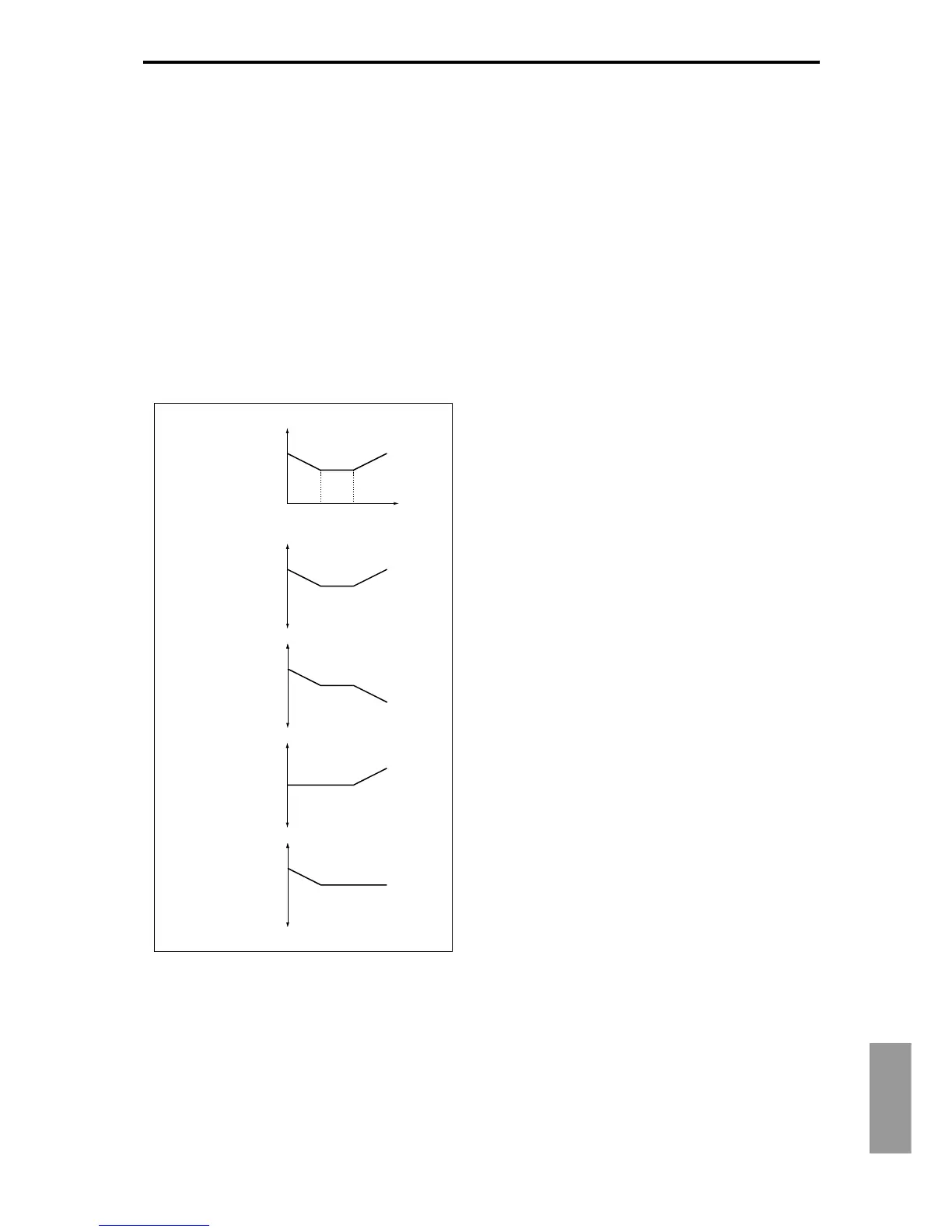

NoteNumber
Amp
KeyLow
KeyHigh
AMS = Amp KTrk +/+
AMS Intensity = positive (+) value
RampLow
=+50
RampHigh
=+50

Depth and direction of modulation
zero
+max
-max
example of Amp
Keyboard Track settings
AMS = Amp KTrk +/–
AMS Intensity = positive (+) value

Depth and direction of modulation
zero
+max
-max
AMS = Amp KTrk 0/+
AMS Intensity = positive (+) value

Depth and direction of modulation
zero
+max
-max
AMS = Amp KTrk +/0
AMS Intensity = positive (+) value

Depth and direction of modulation
zero
+max
-max


