DVR Settings
Entering/Changing the Ethernet Options
Flashback3 & Flashback HD User’s Guide
Page 176 L3 Mobile-Vision 6.23.2017

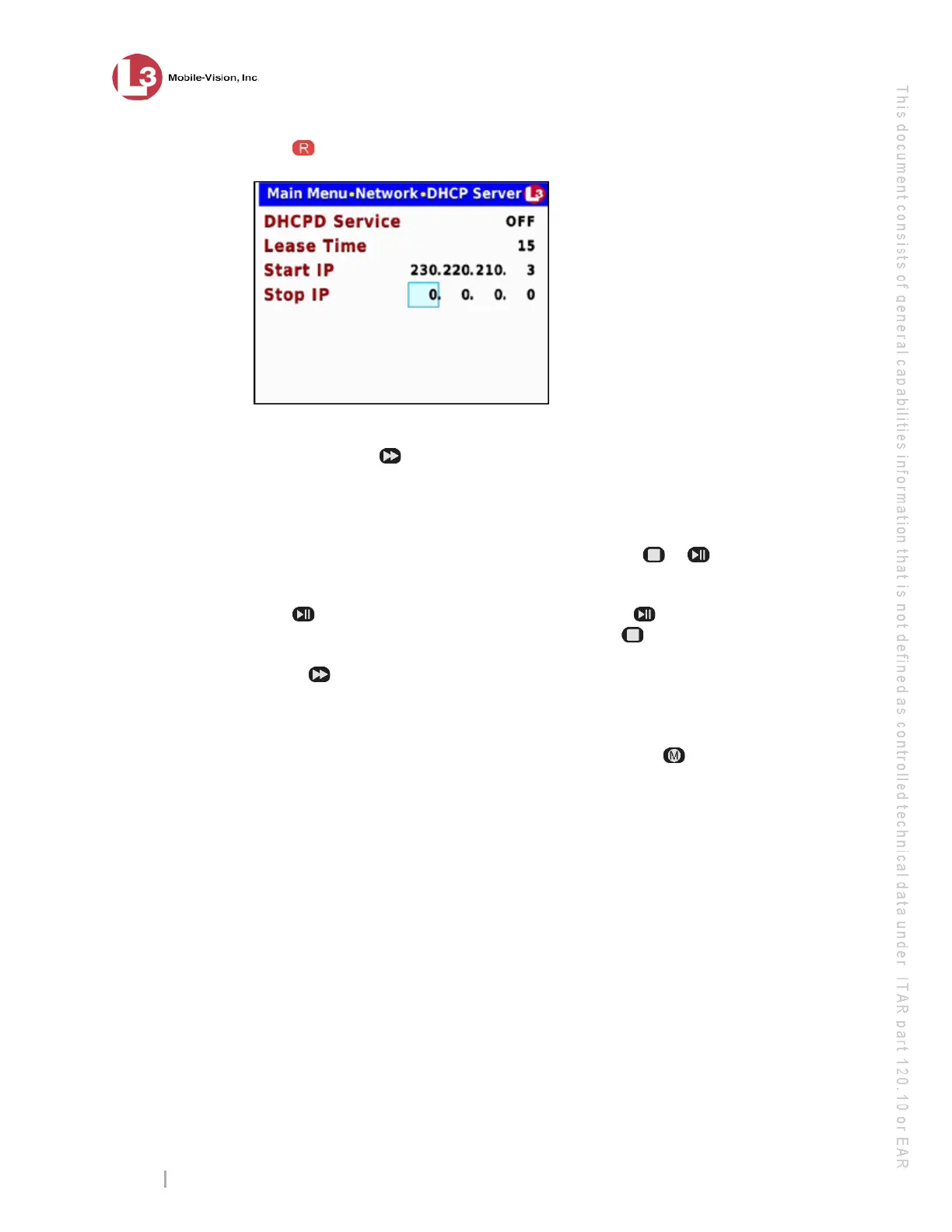

24 Press to select the Stop IP field.
25 T
o enter/change the first segment of the IP address, proceed to the next step.
Otherwise use the button to advance to the first segment you wish to change.
26 I
f the current value of this IP segment is 0, proceed to the next step.
– OR –
If the current value of this IP segment is 1 – 255, use the or
buttons to move
the numeric display higher or lower, respectively. Next, skip to step 28.
27 P
ress . The number 255 displays. Keep pressing the button until the desired
number displays. (If you overshoot the number, press to back up.)
28 U
se the button to advance to the next segment you wish to enter/change.
29 R
epeat steps 26 – 28 until all four segments of the IP address are entered/updated.
30 O
nce the correct address displays in the Stop IP field, press four times to save
your changes and exit this option.
