Repair information 4-55

5041-030

Go Back

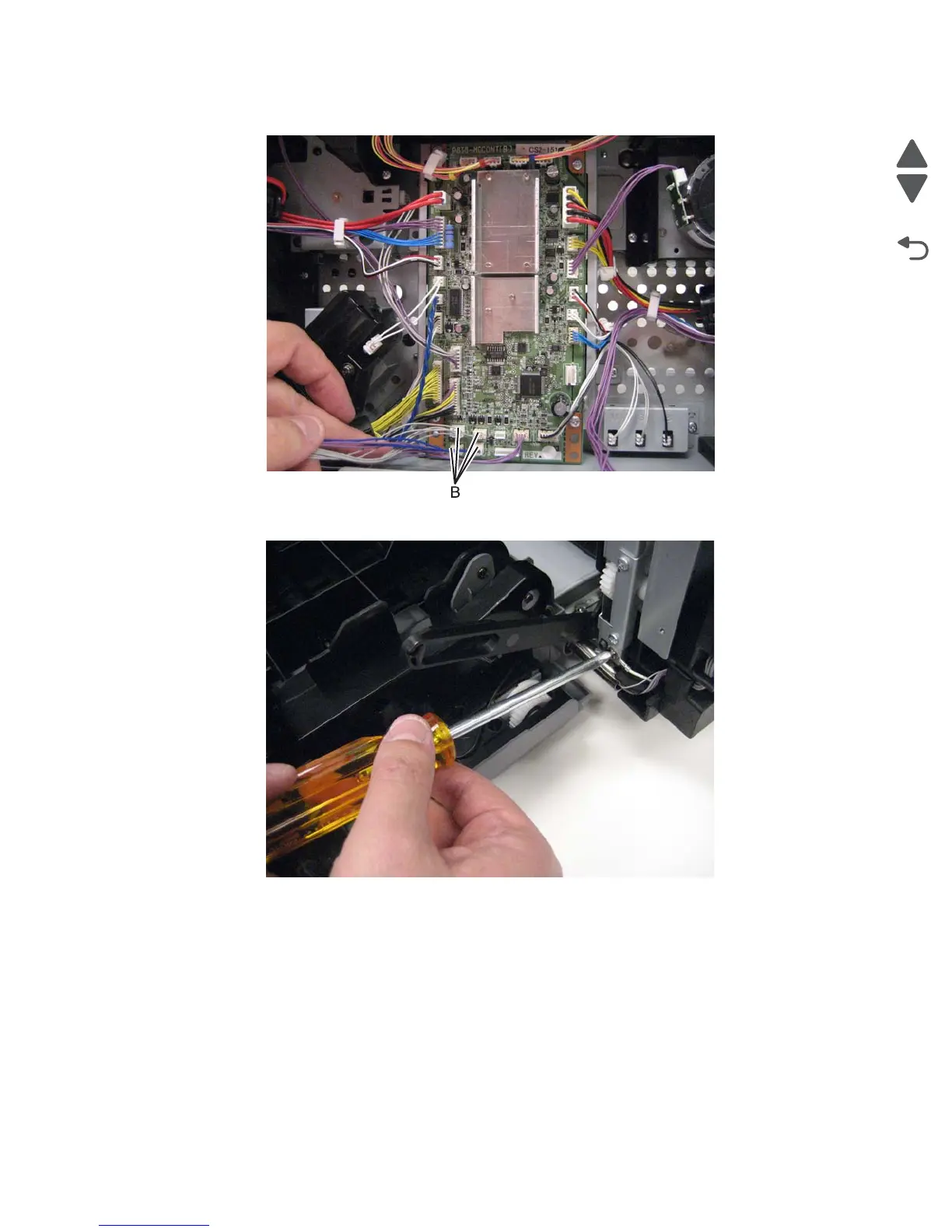

7. Disconnect the duplex clutch and sensor cables from the connectors (B) on the engine controller board.

8. Disconnect the duplex ground wire from the frame.
