4-56 Service Manual

5041-030

Go Back

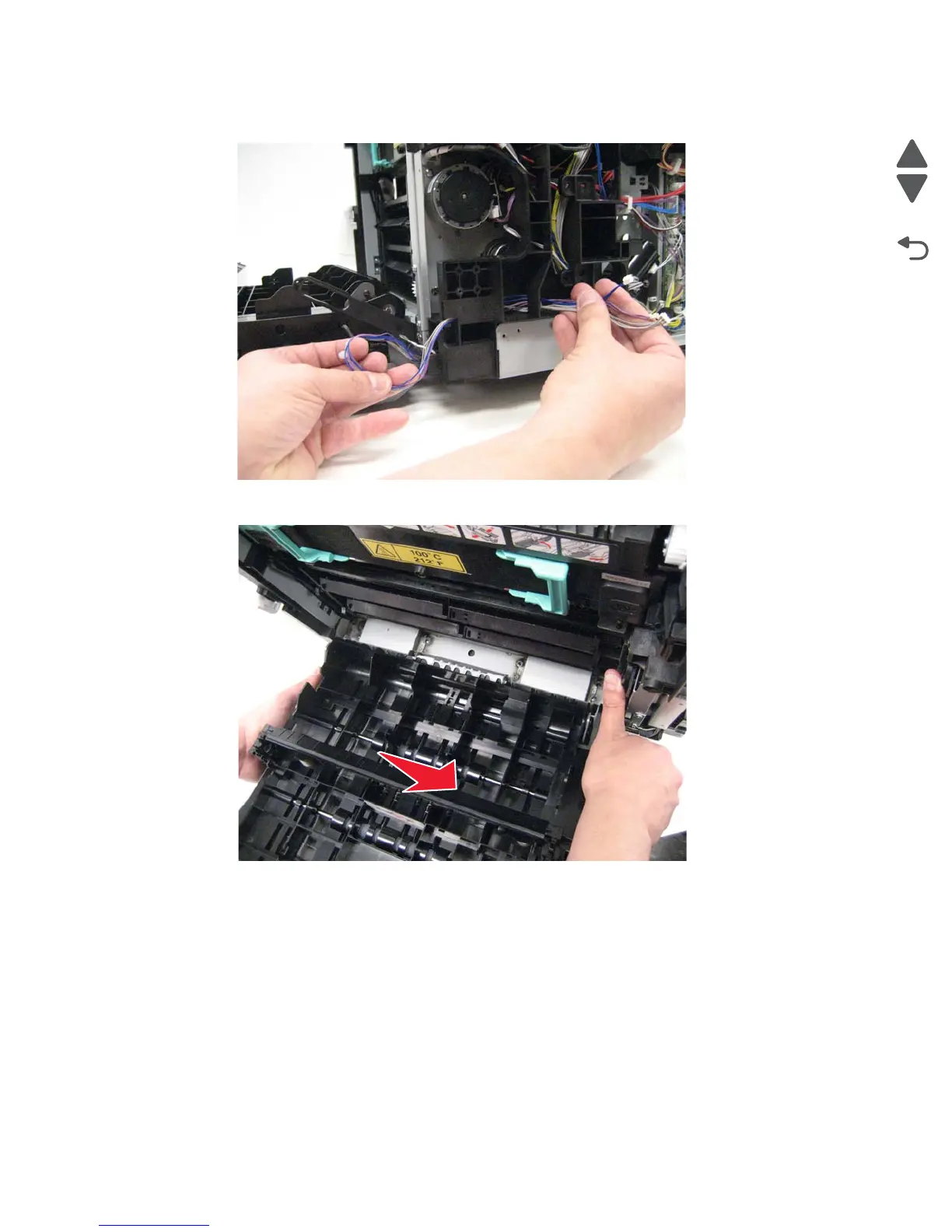

9. Route the duplex cables through the frame.

10. Slide the duplex to the right, freeing it from the left hinge.
