Repair information 4-57

5041-030

Go Back

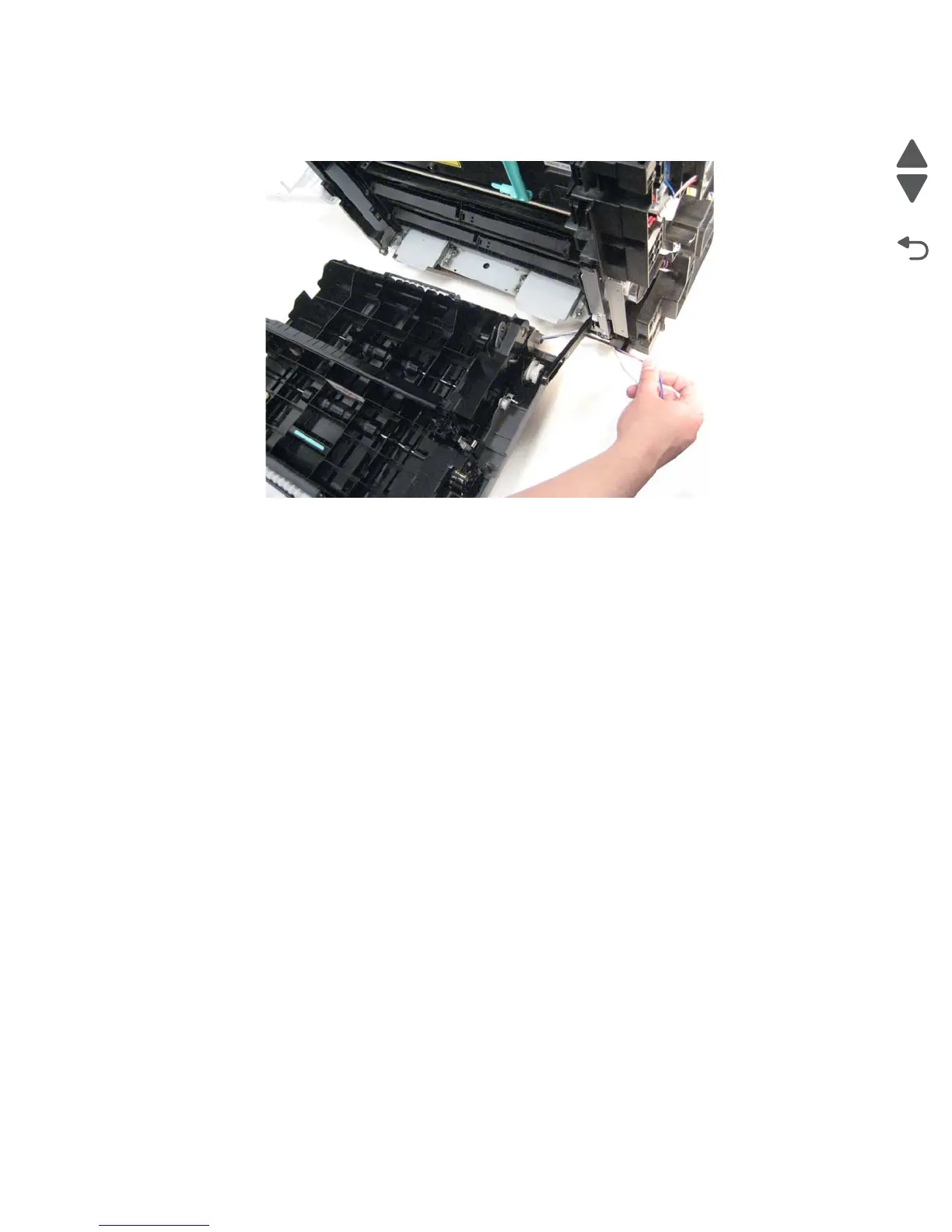

11.Pull the duplex away from the printer while carefully routing the cables through the right hinge on the

printer.

12.Remove the screws securing the duplex unit to the right cover.

Note: See “Duplex unit component removals” on page 4-89 for instructions to remove the duplex sub-

components.
