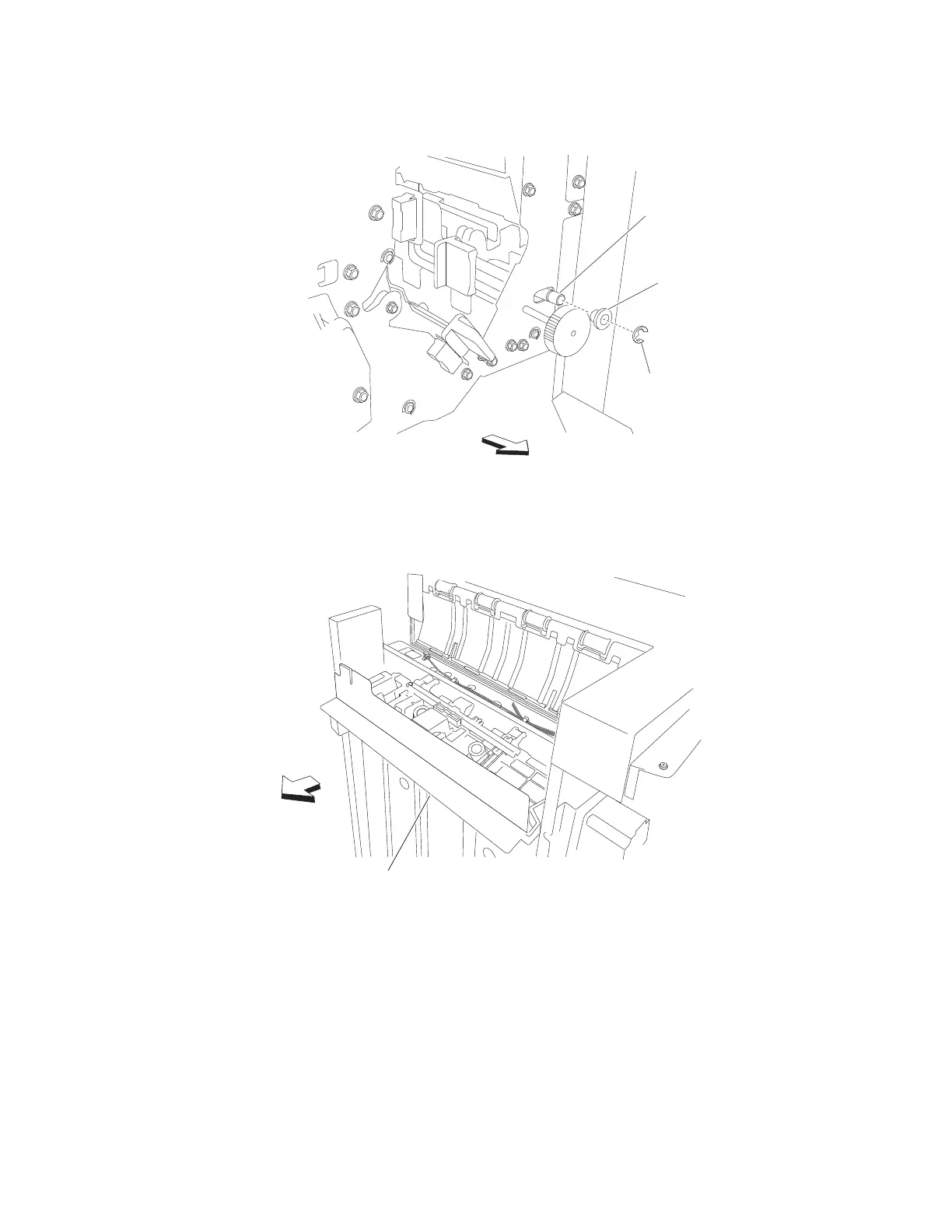

12. Remove the e-clip securing the shaft (F) to the front of the finisher.
13. Remove the 8 mm bushing (E) on the front side.
14. Gently move the left side of the media eject unit assembly (G) out of the finisher followed by the right side.
Note: Do not force the media eject unit assembly out of the finisher. Remove the left side before the right
side.
Note: Tilting the media eject unit assembly slightly may make the removal easier.
15. Remove the media eject unit assembly.
Front
E-clip
E
F
Right
G
