4-8 Service Manual

7541-03x

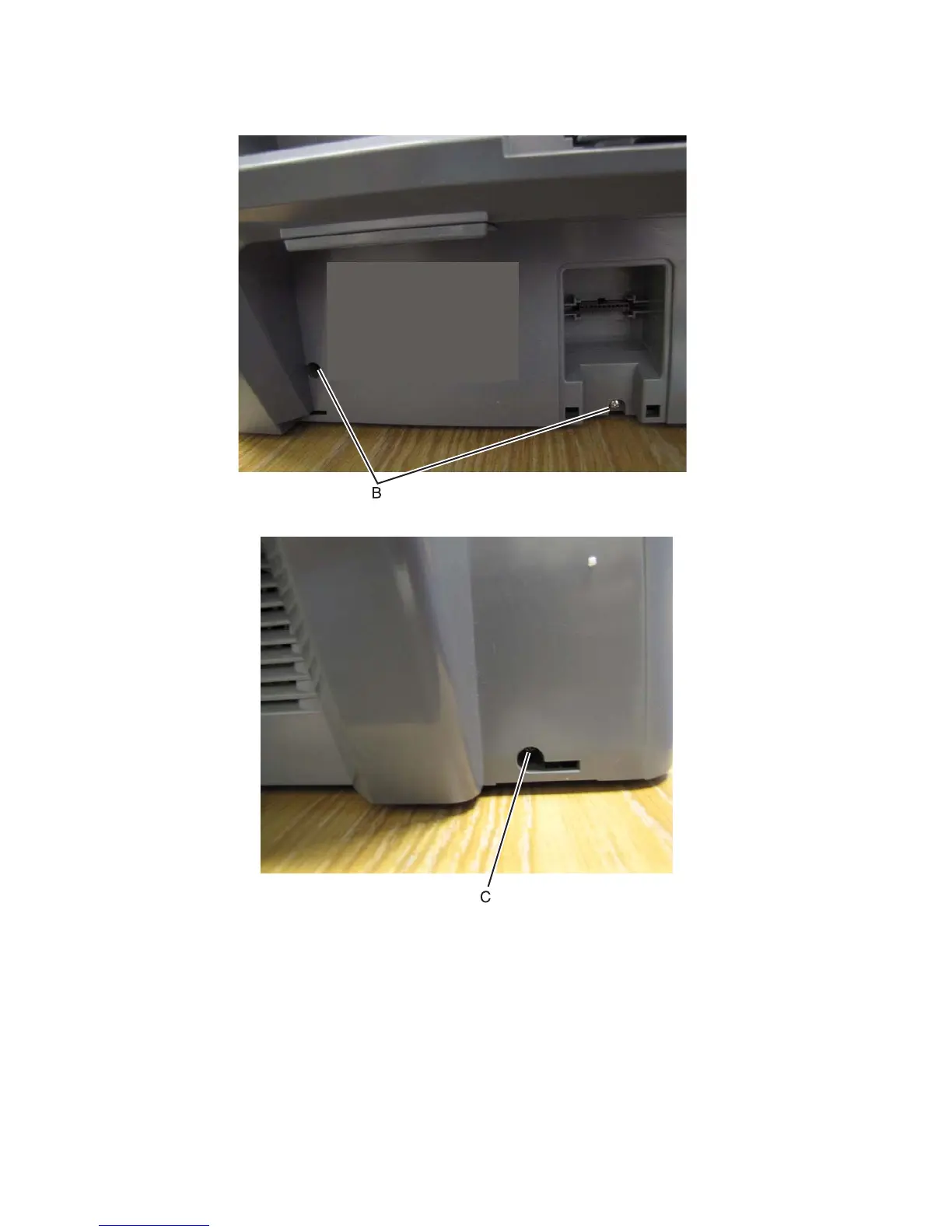

3. Remove the two screws (B) in the lower left corner.

4. Remove the screw (C) in the lower left corner.
