Repair information 4-9

7541-03x

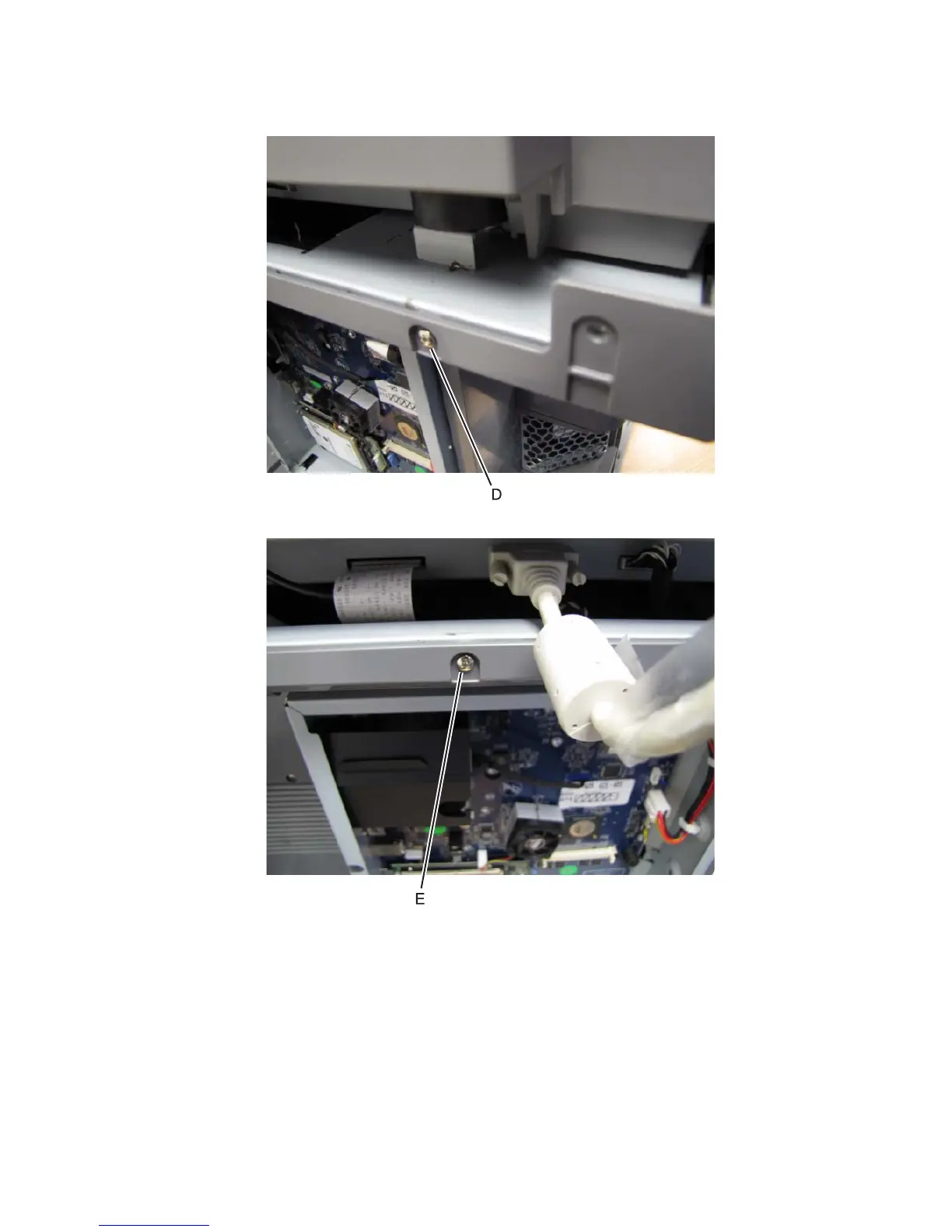

5. Remove the screw (D) in the upper right corner.

6. Remove the screw (E) in the top middle of the cover.
