Chapter 6 - Parameter Description [I/O]
6-48

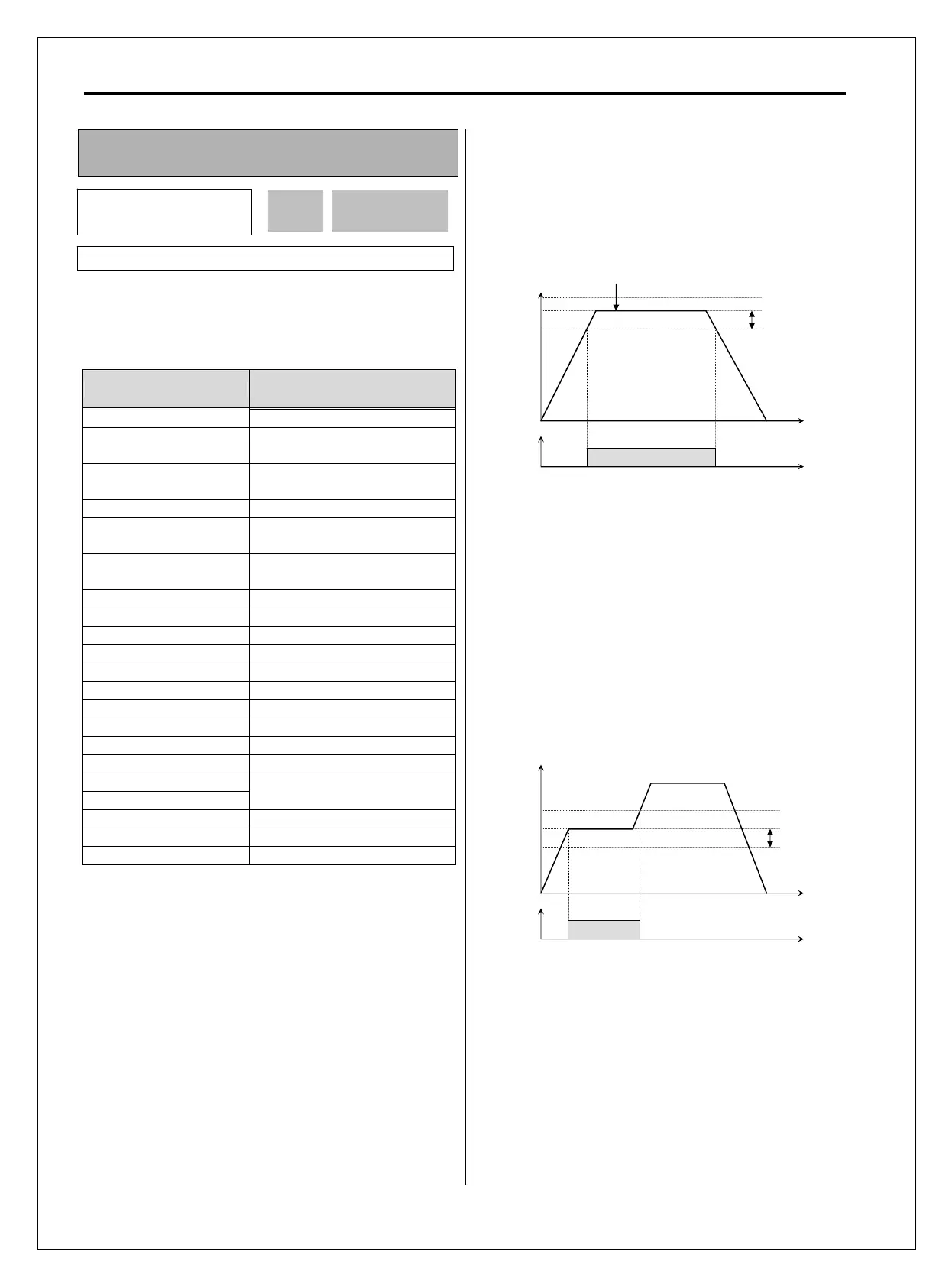

I/O-76~79: Programmable Digital Auxiliary Contact
Output mode 1, 2, 3, 4 define (AX-CX)
The auxiliary contact works (Close) when the defined
condition has occurred.
Setting Range Description
None None
FDT-1
Output frequency arrival
detection
FDT-2
Specific frequency level
detection
FDT-3 Frequency detection with pulse
FDT-4
Frequency detection 1 with
contact closure
FDT-5
Frequency detection 2 with
contact closure
OL Overload detection
IOL Inverter overload detection
Stall Stalling
OV Over voltage detection
LV Low voltage detection
OH Inverter overheat detection
Lost Command Lost command detection
Run Inverter running detection
Stop Inverter stop detection
Steady Steady speed detection
INV line
COMM line
Exchange signal outputs
Ssearch Speed search mode detection
Ready Inverter ready detection
MMC Used for MMC operation
[FDT-1]
When the output frequency reaches the reference
frequency (target frequency), AX-CX terminal is
CLOSED.
Detecting Condition: Value (Ref. Freq-Output Freq)<=
Freq Detection Bandwidth (I/O-75)/2
[AX-CX configured as ‘FDT-1’]
*AX: A1~A4, CX: C1~C4
[FDT-2]
AX-CX is CLOSED when the reference frequency is
in I/O-75 [FDT Bandwidth] centered on I/O-74 [FDT
Frequency], and the output frequency reaches I/O-75
centered on I/O-74.
Detecting Condition: FDT-1 condition & (Value
(Output Freq- Freq Detection)<= Freq Detection
Bandwidth (I/O-75)/2)
[AX-CX configured as ‘FDT-2’]
[FDT-3]
AX-CX is CLOSED when the output frequency
reaches the band centered on the FDT frequency. The
output is OPENED when the output frequency goes
outside the FDT bandwidth centered on the FDT
frequency.
Detecting Condition: Value (Freq Detection (I/O-74)-
Output Freq)<= Freq Detection Bandwidth (I/O-75)/2
I/O►
Aux mode1
76 None
Factory Default: None 0
AX-CX
CLOSED
Output Frequency
Time
Time
I/O-75 / 2
I/O-74
0 76
AX-CX
CLOSED
Output Frequency
Time
Time
I/O-75/ 2
Ref. freq
To Next Page
