Chapter 2 - Specification
2-5

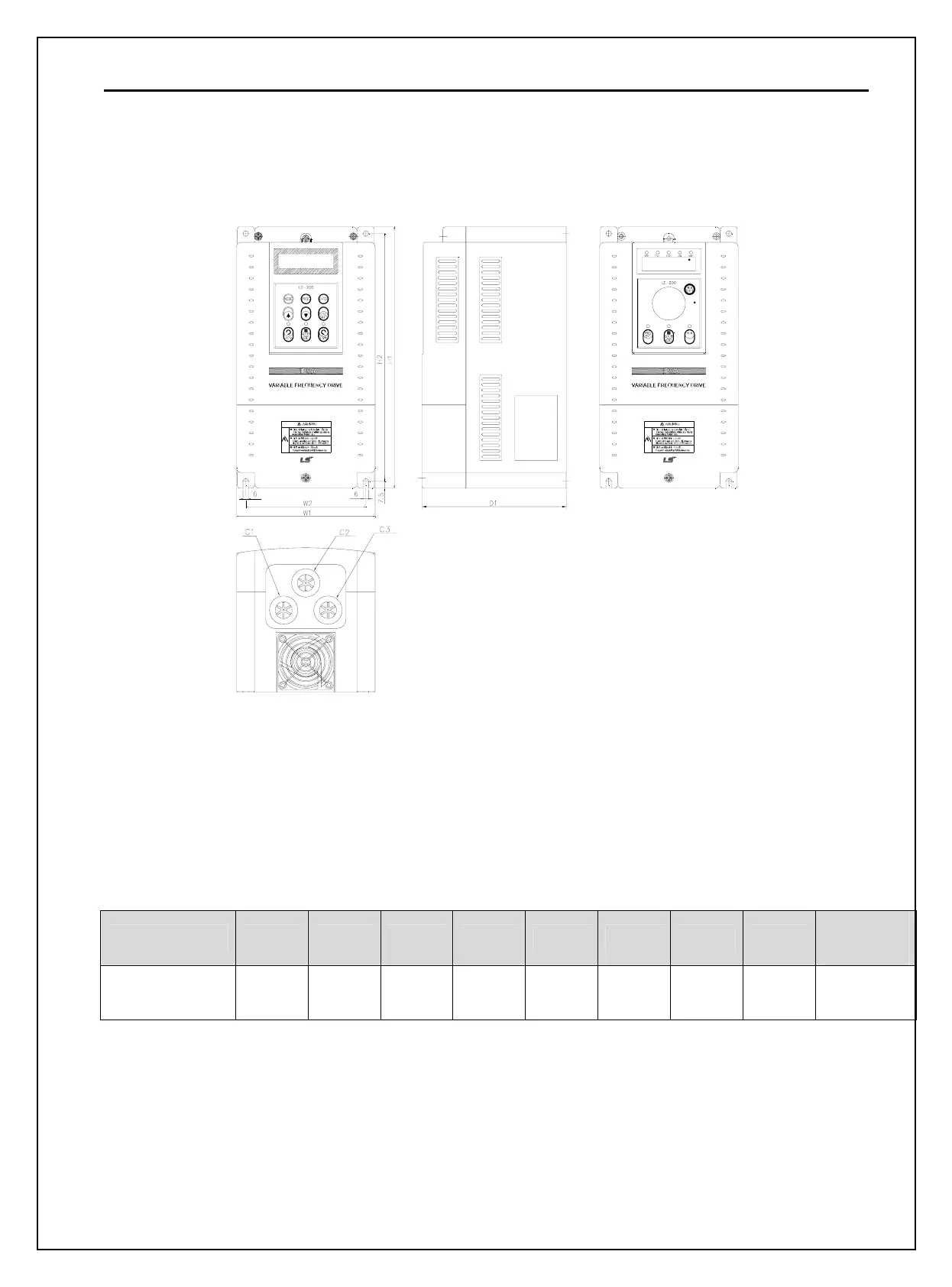

2.5 Dimensions
1) SV055iP5A (200/400V Class)
m
m
(
i
n
c
h
e
s
)
Model
W1
W2
H1
H2
D1
C1
C2
C3
Enclosure
Type
SV055iP5A-2/4
150
(5.91)
130
(5.12)
284
(11.18)
269
(10.69)
156.5
(6.16)
24
(0.98)
24
(0.98)
24
(0.98)
IP20
UL Type 1
13
15
