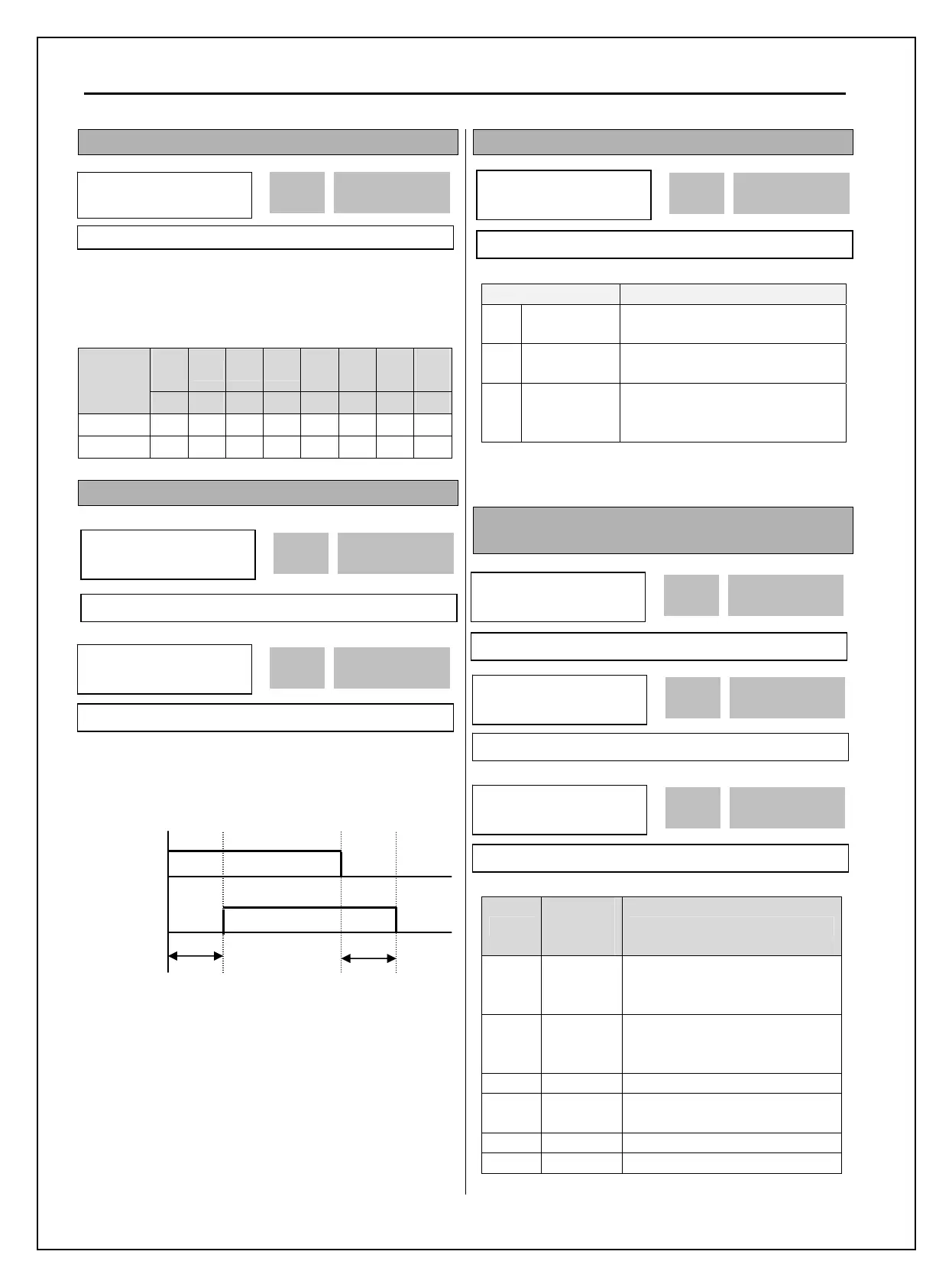

I/O-81: Terminal Output Status
This code displays the output status of control
terminals.
[LCD Keypad Display]
3A-
3C
Q3 Q2 Q1
AUX
4
AUX
3
AUX
2
AUX
1
Output
Terminals
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
OFF status 0 0 0 0 0 0 0 0
ON status 1 1 1 1 1 1 1 1
I/O-82, 83: Fault Relay On/Off Delay Time
Fault relay output is delayed for the set time and it is
turned ON/OFF after the set time.
I/O-84: Cooling Fan Control Selection
I/O-84 Description
0
PowerOn
Fan
Fan ON when inverter power
is ON.
1 Run Fan
Fan ON when inverter runs
(outputs its frequency).
2 Temper Fan
Fan ON when inverter temp
exceeds the preset value in
I/O-85.
☞ Caution: I/O-84, 85 are only available for
inverters 37kW and higher.
I/O-86, -87, -88: User Unit selection for V1, I, Pulse
input (to change Analog input value display)
No
I/O-86,-
87,-88
set data
Description
0 Speed
Displayed in [Hz]. It is
changed to [Rpm] when
DRV-16 is set to [Rpm].
1 Percent
Flow rate, pressure and
temperature are displayed in
[%].
2 Bar Pressure is displayed in [Bar].
3 mBar
Pressure is displayed in
[mBar].
4 kPa Pressure is displayed in [kPa].
5 Pa Pressure is displayed in [Pa].
Set “Yes” in more than one code among APP-02
I/O► Out status
81 00000000
0000 81
Factory Default: 00000000 0000
Relay input
Relay output
On Delay Time
Off Delay Time
I/O ► Relay On
82 0.0 sec
0.0 82
Factory Default: 0.0 sec 0.0
I/O ► Relay Off
83 0.0 sec
0.0 83
Factory Default: 0.0 sec 0.0
I/O ► Fan Con. Sel
84 PowerOn_Fan
0 84
Factory Default: PowerOn_Fan 0
I/O ► V1 Unit Sel
86 Speed
0 86
Factory Default: Speed 0
I/O ► I Unit Sel
87 Speed
0 87
Factory Default: Speed 0
I/O ► PulseUnitSel
88 Speed
0 88
Factory Default: Speed 0
