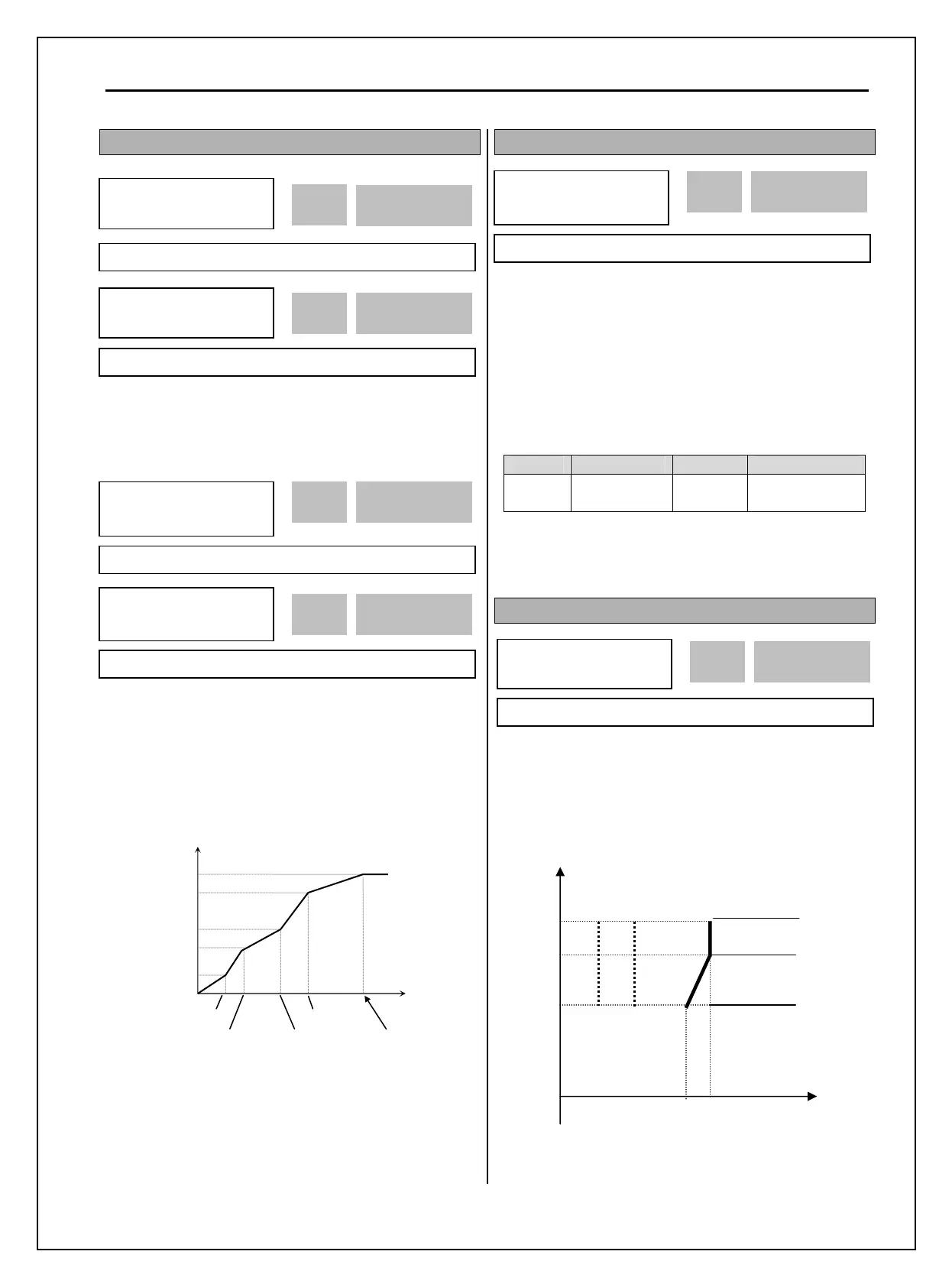

Chapter 6 - Parameter Description [FU1]
6-17
FU1-41 ~ FU1-48: User V/F Frequency and Voltage
□
□
□
These functions are available only when ‘User V/F’
is selected in FU1-40 [V/F pattern]. Users can make
the custom V/F pattern by setting four points between
FU1-32 [Starting Frequency] and FU1-31 [Base
Frequency].
[User V/F]
Note: When the ‘User V/F’ is selected, the torque
boost of FU1-67 through FU1-69 is ignored.
FU1-49: AC Input Voltage Adjustment
It should be set correctly when inverter input voltage
and standard input power rating is far different.
Otherwise, it will cause inverter damage. This set
value affects inverter LV trip (low voltage trip) level.
Used only when line fluctuation exceeds its
permissible range or input power far different to its
standard value is applied.
Code LCD Display Default Setting
FU1-49
AC Input
Volt
100 [%] 73 – 115 [%]
Note: As soon as FU1-49 value is set through a
button on the keypad, its set value is applied.
FU1-50: Motor Voltage
Constant voltage output is possible regardless of
input voltage fluctuation by setting this parameter.
☞ Caution: When input voltage is less than FU1-
50 [Motor rated voltage], Max output voltage
cannot exceed input voltage.
FU1 ► User freq 1
41 15.00 Hz
15.00
41
Factory Default: 15.00 Hz 15.00
FU1 ► User volt 1
42 25 %
25 42
Factory Default: 25 % 25
FU1 ► User volt 4
48 100 %
100 48
Factory Default: 100 % 100
FU1 ► User freq 4
47 60.00 Hz
60.00
47
Factory Default: 60.00 Hz 60.00
Output Voltage
Output
Frequency
Freq. Base
100%
FU1-42
FU1-41
FU1-45
FU1-44
FU1-46
FU1-48
FU1-47
FU1-43
FU1 ► VAC 440.0V
49 100.0 %
100.0 49
Factory Default: 100.0 % 100.0
110 %
85 %
100 %
Output V
Input voltage
Motor rated V
[FU1-50]
100%
85%
110%
85%
FU1 ► Motor Volt
50 0 V
0 50
Factory Default: 0 V 0
