Chapter 6 - Parameter Description [FU1]
6-21

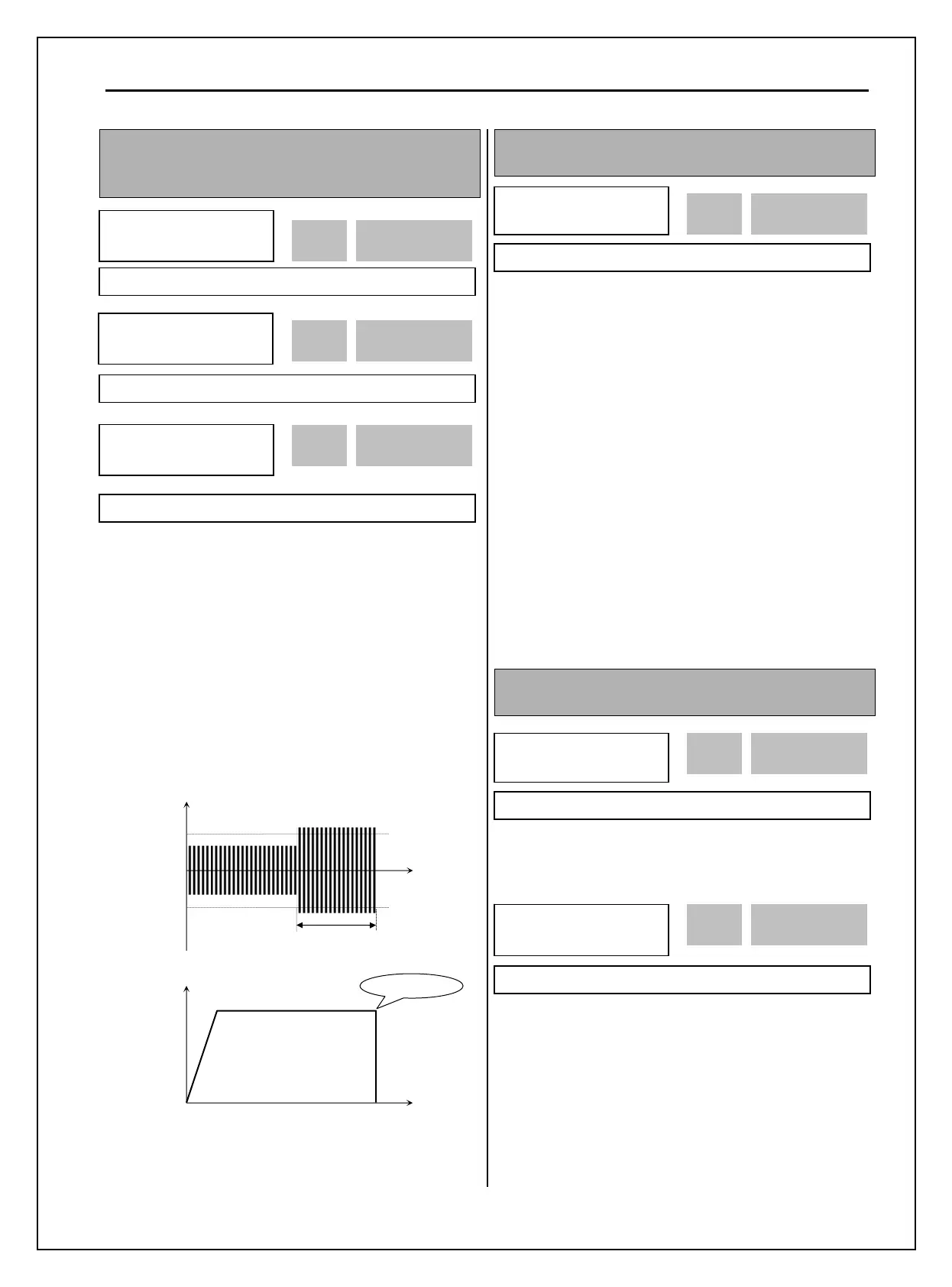

FU1-66: Overload Trip Selection
FU1-67: Overload Trip Level
FU1-68: Overload Trip Delay Time
Inverter cuts off its output and displays fault message
when the output current persists over the FU1-67
[Overload Trip Level] for the time of FU1-68
[Overload Trip Time]. This function protects the
inverter and motor from abnormal load conditions.
Note: The set value is the percentage of FU2-43
[Rated Motor Current].
Note: Activated only when Heatsink temperature
exceeds its preset level.
[Overload Trip Operation]
FU1-69: Input/Output Phase Loss Protection
(Bit Set)
This function is used to cut the inverter output off in
case of phase loss in either input power or inverter
output.
1
st
bit: Output phase loss protection
Enable/Disable
0: Disabled at Output phase loss protection.
1: Enabled at Output phase loss protection.
Inverter output is shut down and stopped.
2
nd
bit: Input phase loss protection Enable/Disable
0: Input phase loss protection disabled.
1: Input phase loss protection enabled.
Inverter
output is shut down and stopped.
3
rd
bit: Protection Enable/Disable selection at
Exchange function
0: Disabled at Exchange function (Inverter-
Commercial line exchange).
1: Enabled at Exchange function.
FU1-70: Stall Prevention Mode (Bit set)
FU1-71: Stall Prevention Level
This bit set parameter follows the conventions used
in I/O-15 and I/O-16 to show the ON (bit set) status.
This function is used to prevent the motor from
stalling by reducing the inverter output frequency
until the motor current decreases below the stall
prevention level. This function can be selected for
each mode of acceleration, steady speed, and
deceleration via bit combination.
FU1 ► OLT select
66 --- No ---
0 66
Factory Default: No 0
FU1 ► OLT level
67 120 %
120 67
Factory Default: 120 % 120
FU1 ► OLT time
68 60.0 sec
60.0 68
Factory Default: 60.0 sec 60.0
Output Current
Time
Tim
FU1-67
[OLT Level]
FU1-67
[OLT Level]
Output Frequency
FU1- 68 [OLT Time]
Overload
FU1 ► Stall prev.
70 000
000 70
Factory Default: 000 000
FU1 ► Stall level
71 100 %
100 71
Factory Default: 100 % 100
FU1 ► Trip select
69 100
100 69
Factory Default: 100 100
