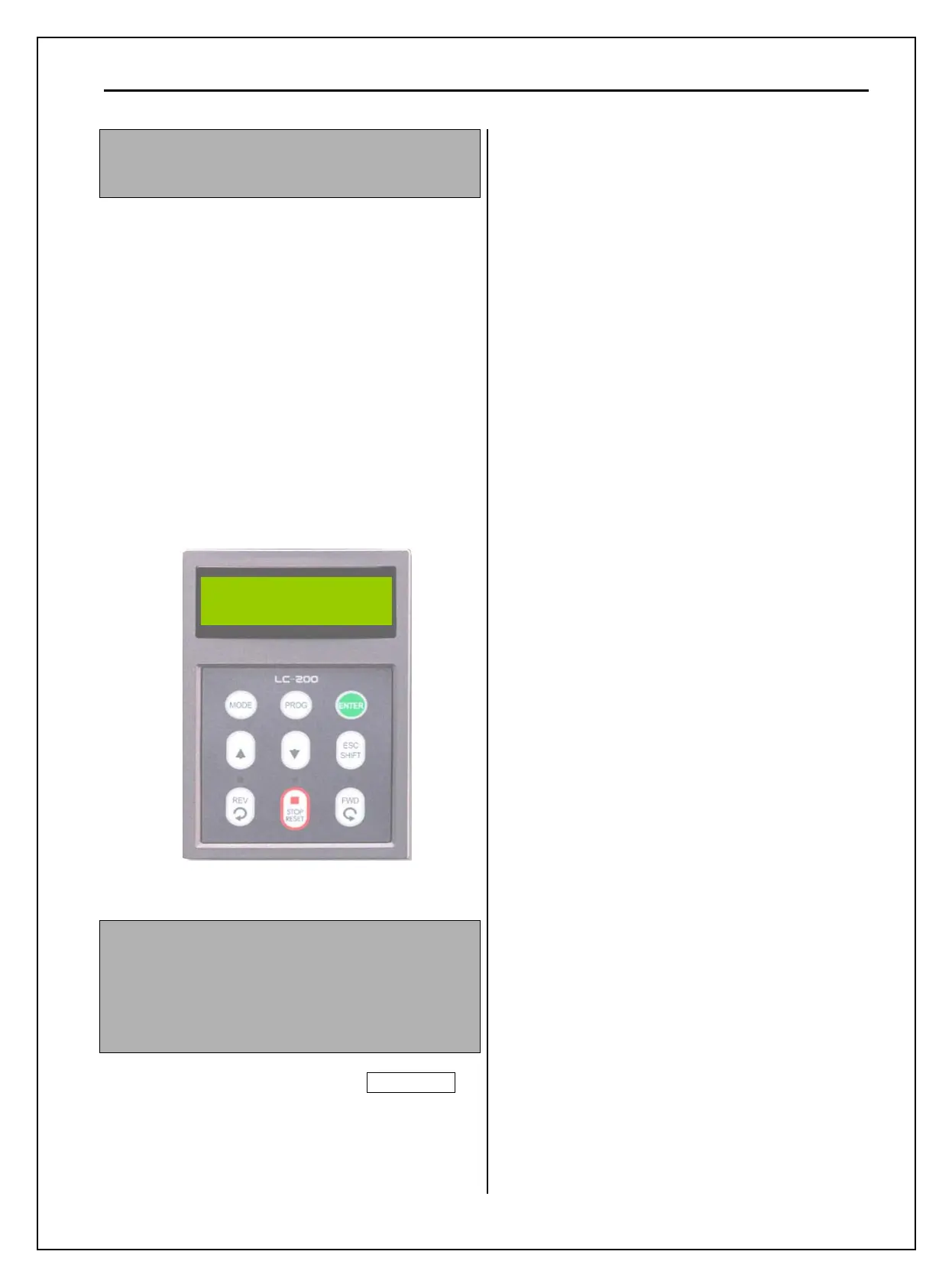

DRV-20: EXT-PID Parameter
(To monitor ExtPID controller’s reference/
feedback/ output value)
Displays ExtPID controller’s reference/ feedback/
output value.
When APP-80 [Ext. PID operation selection] is set to
“YES,” reference and feedback are displayed in
Percent unit.
When APP-02 [PID operation selection] is set to
“YES,” and APP-06 [PID feedback selection] is set
(one of the I, V1, Pulse) and the desired unit is set in
I/O-86 [V1 Unit Sel], I/O-87 [I Unit Sel], I/O-88
[PulseUnitSel] according to the selection in APP-06,
PID reference and feedback value will be displayed
by percent [%] unit.
DRV-93: FU1 Group Selection (7-Seg.keypad Only)
DRV-94: FU2 Group Selection
DRV-95: I/O Group Selection
DRV-96: EXT Group Selection
DRV-97: COM Group Selection
DRV-98: APP Group Selection
Select the desired group and press the PROG/ENT
key to move into the desired group. The parameter in
the group can be read and written after moving into
the desired group.
R 50.00%O 45.32%
F 8.24%
DRV 20
