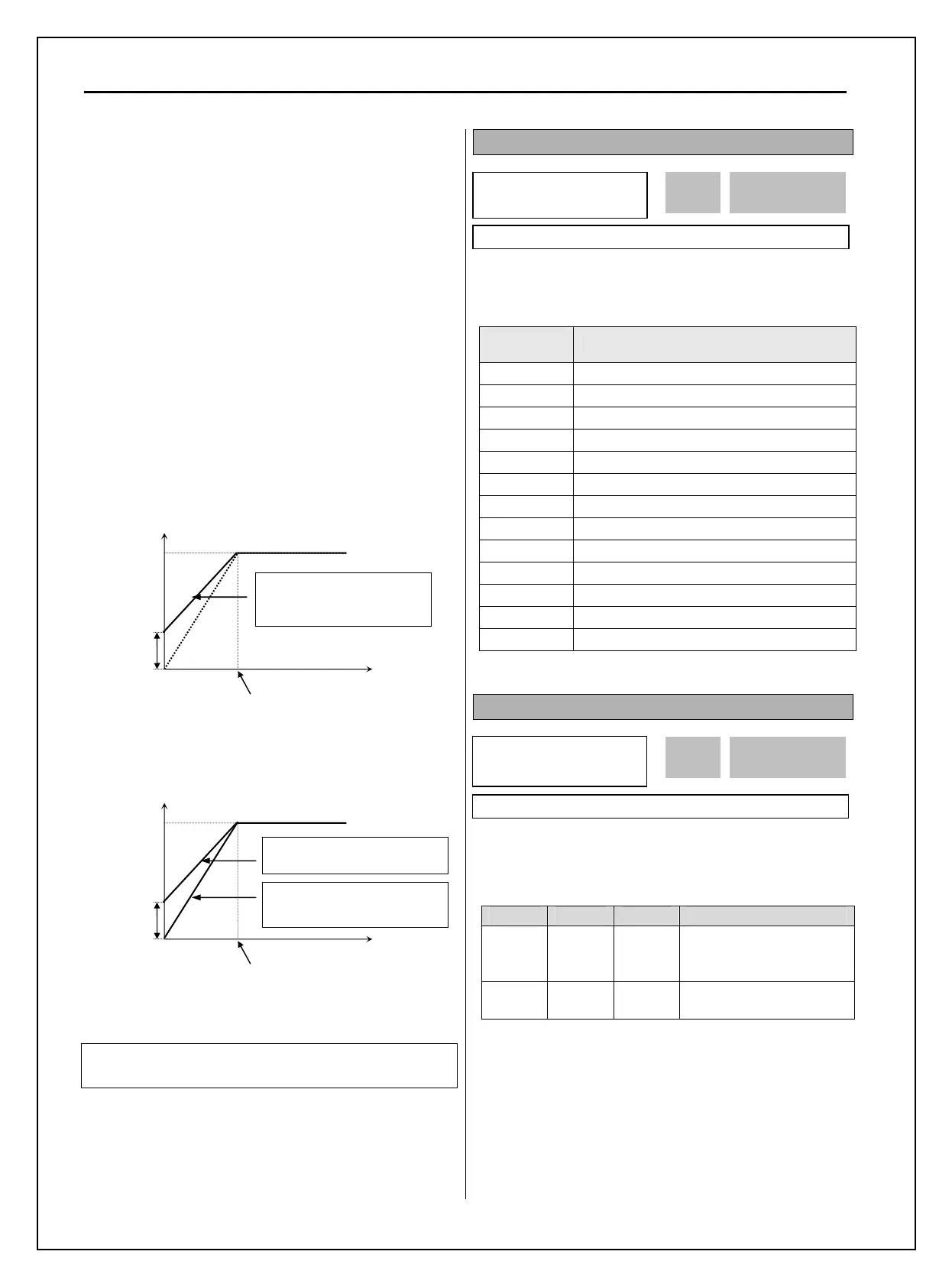

LSIS sv-ip5a User Manual

Chapter 6 - Parameter Description [FU2]
6-34
Note: It is possible to occur No Motor Trip in case that the
torque boost value is 0 when DC Start is operated.
[Auto Torque Boost]
When FU2-67 [Manual/Auto torque boost select] is
set to “Auto”, inverter outputs high starting torque by
automatic boosting according to the load
characteristic.
Note: Auto torque boost is only applied to the 1
st
motor.
Only Manual torque boost is available for the 2
nd
motor.
Note: Auto torque boost is not available when FU2-60
[Control Mode] is set to ‘Sensorless’.
Note: Conduct Auto tuning in FU2-61 [Auto tuning] first
to use Auto torque boost effectively.
[Constant Torque Loads: Conveyor, Moving Equip. etc.]
[Ascending and Descending Loads: Parking, Hoist etc.]
FU2-80: Power On Display
This code selects the parameter to be displayed first
on keypad (DRV-00) when the power is turned on.
Setting
Range
Description
0 DRV-00 [Command Frequency]
1 DRV-01 [Acceleration Time]
2 DRV-02 [Deceleration Time]
3 DRV-03 [Drive Mode]
4 DRV-04 [Frequency Mode]
5 DRV-05 [Step Frequency 1]
6 DRV-06 [Step Frequency 2]
7 DRV-07 [Step Frequency 3]
8 DRV-08 [Output Current]
9 DRV-09 [Motor Speed]
10 DRV-10 [DC link Voltage
11 DRV-11 [User Display selected in FU2-73]
12 DRV-12 [Fault Display]
FU2-81: User display selection
Related Function
: DRV-11 [User display selection]
Select the display as shown below.
Setting FU2-81 Name Description
0 Voltage
Output
voltage
Display output voltage of
the inverter (Factory
setting)
1 Watt
Output
power
Display output power of
the inverter
Note: The displayed value of “Watt” is approximate
value.
Output Voltage
Output
Frequency
Freq. Base
100%
Manual
Boost
Value
Forward and Reverse direction
(Set the same value for FU2-
68 and FU2-69)
Output Voltage
Output
Frequency
Freq. Base
100%
Manual
Boost
Value
Forward Direction - Motoring
(FU2-68 setting value)
Reverse Direction-
Regenerating (Set FU2-69 to
‘
0%
’
)
Related Functions: FU1-40 [Volts/Hz Pattern]
FU2-60 [Control Mode selection]
FU2 ► PowerOn disp
80 0
0 80
Factory Default: 0 0
FU2 ► User Disp
81 Voltage
0 81
Factory Default: 0 0
